1. What is Ppr Pipe? Ppr Pipe means: Polypropylene Random Copolymer plastic type C pipe.
PPR pipe is type c and a straight and rigid cylindrical pipe, made from Polypropylene Random Copolymer plastic raw mateiral, produced through a continuous extrusion process. They are commonly offered in light green, dark green, blue color, orange color, white color, etc... and in outer diameter sizes ranging from 20mm to 315mm making the pipe walls far thicker according to ISO15874 and DIN8077/8088

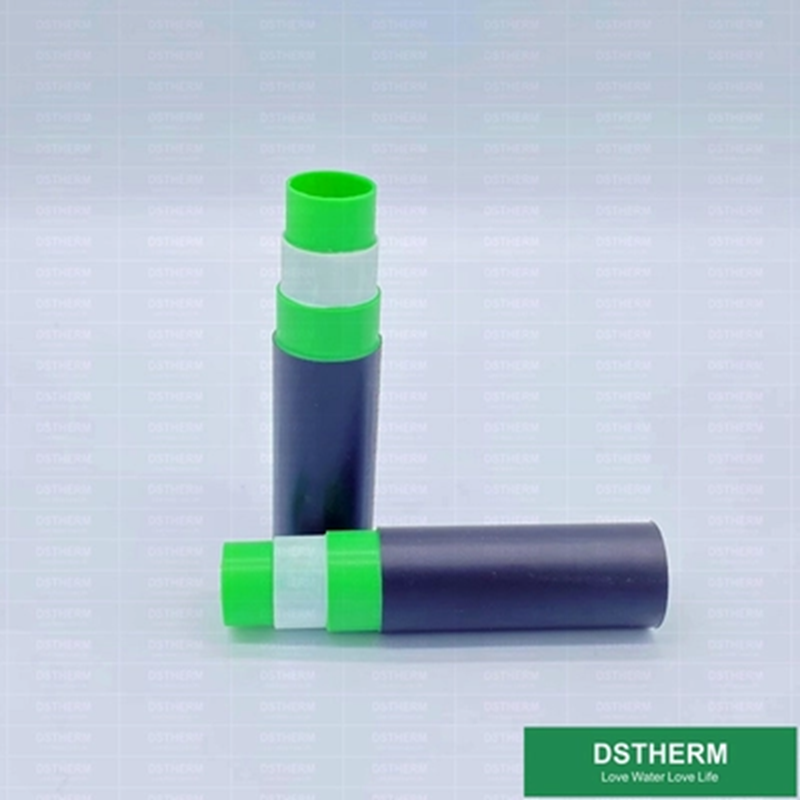

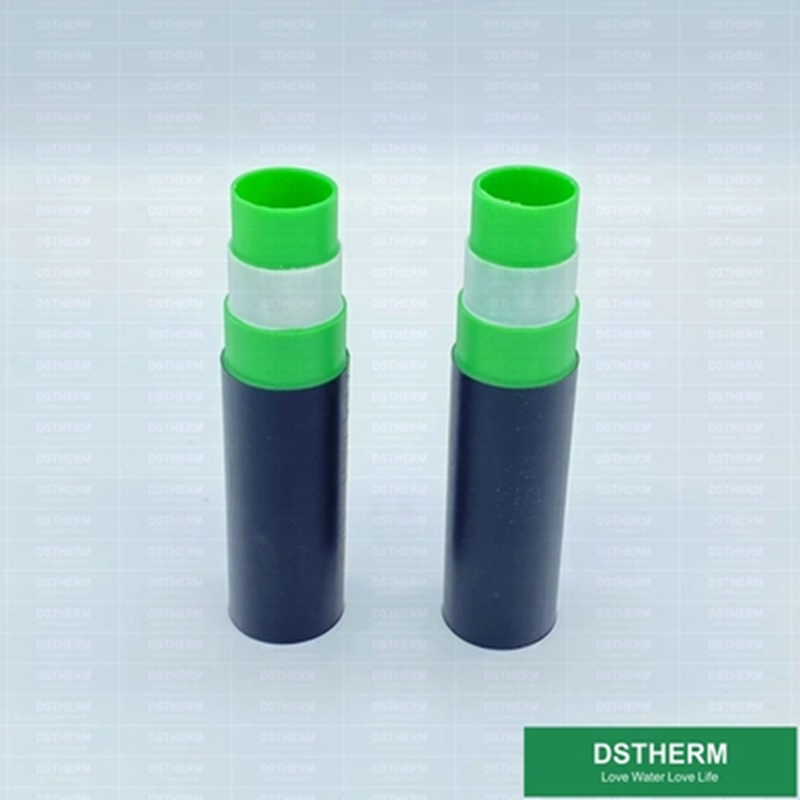

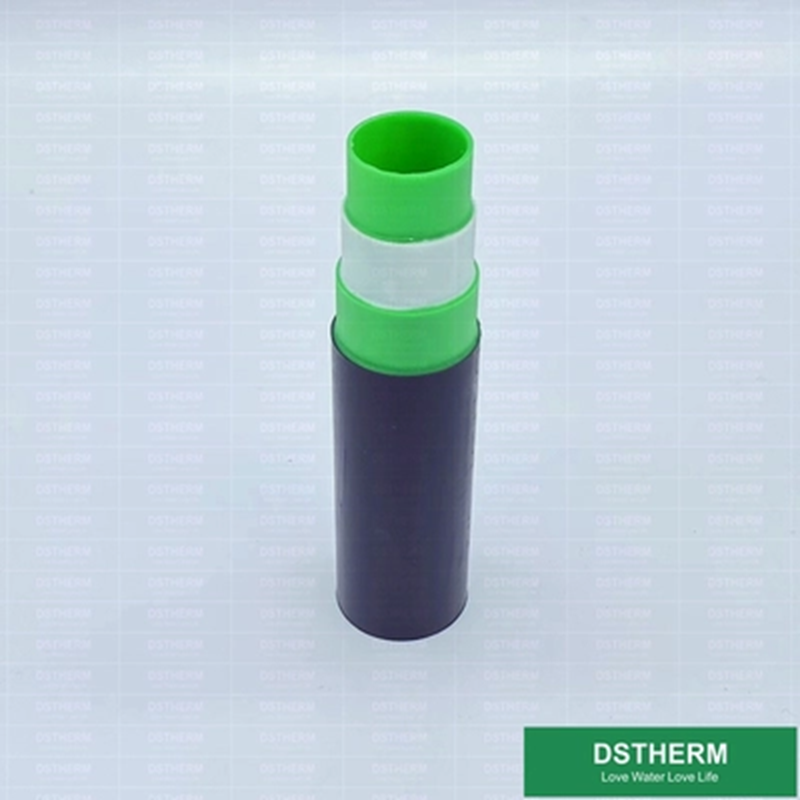

2. What is Ppr Four layers Ppr Pipe: It means: it has four layers, Ppr-Fiberglass layer-Ppr Layer-UV layer.

Ppr Pipe Four Layers Pipe Introduction:

1). When people install the normal Ppr Pipe outside, it must need the protection
on the pipe, or there will be two kind of influences: firstly, after the ultraviolet
irradiation, it will speed up the accelerated aging of antioxygen material in
the Ppr, reduce the life of pipe. Secondly, it will grow algas, pollute the water
quality, even block the tube.
2). Ppr UV Fiber Pipe was designed by four layers, it contains Ppr layer, Fiber
layer, Ppr Layer and Anti-UV layer from insider counting. Comparing with the
common Por Pine it has more advantages: Lower linear eynansion coefficient.
much more rigid strength;not easy out of shape; Strong and straight; bearing
much more proscuro: It contains Anti-liV lavor ta hlach tho ultraviolat
irradiation, protect the pipe life, it can stop the sun irradiation and algas
growing; keep the water clean and healthy.
This kind of Pipe is more suitable for outdoor installation!

3.Ppr Four layers Pipe PIPELINE CHARACTERISTICS

1. 10% of the fiberglass strengthened Ppr Pipe, Significantly increased the pipe
compressive strength, Under the same pressure service condition, people can use more
thinner fiberglass ppr pipe, inner diameter is bigger and water flow is bigger too.
2. Lower linear expansion coefficient; much more rigid strength; not easy out of shape;
Strong and straight.
3. Better low temperature resistance: Better changes the low temperature brittleness or
the pipeline.
4. It contains Anti-UV layer to block the ultroviolet irradiation, protect the pipe life.
5.Because the outer layer is opaque, it can stop the sun irradiation and algas growing

4.What are the main use of Ppr Pipe and Ppr Fittings?

PPR Pipe has been growing in popularity over the last couple of years, and rightly so. Its durability, ecological, and economic benefits make PPR pipes one of the best in the industry. That is why most industry leaders have turned to PPR pipes for all their needs.

PPR pipes are commonly used in home installations. It is also used in sanitary liquid, alkaline and acidic solutions, compressed air, and transferring water. But what exactly is PPR pipe, and how is it used? We have prepared this comprehensive guide to help you learn everything about PPR pipes.

What is the PPR Pipe?

First things first, so what exactly is the PPR pipe? Also known as Polypropylene Random Copolymer, PPR pipe is a cylindrical and rigid pipe made from PPR. The pipe is produced through a continuous process known as extrusion. These pipes are usually white or green.

Most PPR pipes have a diameter of 20mm to 110mm. This means that the PPR pipe is thicker than its PVC companions. In addition to that, PPR pipes feature a network of fittings, accessories, and parts. These accessories are available for each PPR pipe diameter.

Like all other pipes, PPR pipes also have their unique properties. These properties set it apart from other pipes. Learn more about PPR pipes characteristics below:

Low Thermal Conductivity

The first thing you should about PPR pipes is that they have low thermal conductivity. This means that external temperatures don’t get to the liquid inside the pipe. Likewise, temperature from the liquid does not escape to the external environment. This is why PPR pipes minimize heat loss or heat gain during the transfer of cold and hot fluids. Using PPR pipes guarantees efficiency and reduced costs

Increased Longevity

PPR pipes can serve you for more than 50 years under varying environmental conditions and a wide range of fluids. What is more, PPR pipes can withstand both cold and hot water systems. To help you understand, PPR pipes can handle the pressure and strain of hot water without breaking. Of course, the premise is that the 50-year life span can only be guaranteed under normal use conditions, such as protecting the pipeline under extreme weather.

Ecological and Economic Efficiency

PPR pipes are easy to transport, cut, and join. These pipes are also easy to use and do not need additional chemicals and materials.

What are the Main Uses of PPR Pipe Fittings?

As you have seen earlier, PPR pipes have several economic, ecological, and durability benefits. This is why these pipes are used in a variety of applications. Keep reading to discover the primary uses of PPR pipe fittings below:

PPR pipe fittings are usually used in the construction of cold and hot water systems. The ability of PPR pipes to withstand both hot and cold temperatures without breaking or cracking makes it the best option for cold and hot water systems. Besides, its low thermal conductivity means that the fluids will retain the required temperature.

PPR fittings are the go-to option for discharging chemical fluids, including industrial waste. PPR piping is the ideal pipe fitting for industries due to its ability to withstand strong chemicals and alkaline solutions.

PPR pipe fittings are also used as purified water supply systems. These pipes are durable and can last for more than 50 years. What is more, they do not break or crack easily even under intense conditions.

The PPR pipes are perfect for a building’s heating system. These pipes can be installed inside floors, radiant, wall heating systems. These pipes can withstand all surfaces and conditions, making them the perfect option for all your heating needs.

Ppr pipe products features:

1). Sanitary; innocuity; green architecture material; can be used for purified water pipe

2). Heat-enduring; temperature of the water running through the pipe can reach 95 degree under the long time regular work pressure

3). Erode-enduring; anti-filthy; avoid pipe jam and rust on basin and bathtub

4). Keep warm and save energy: caloric transmit quotiety is 1/200.It is a good facility to keep the pipe warm and save energy.

5). Light ;intensive;the weight is 1/8 of the metal; compression resistance has reached 5MPa and above; tenacity; able to endure impacts

Ppr Pipe four layers Applications

1) Cold and hot water supply systems for civil and industrial constructions, e.g. in

residential buildings, hospitals, hotels, school and office buildings, ship building

2) Drinking water systems and food industry pipe works

3) Central air conditioning system

4) Irrigating system for gardens and green houses

5) Public and sport facilities such as swimming pools and stadiums

6) For rainwater utilization systems

Ppr pipe four layers Advantages:

1, High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.

2, Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.

Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.

3, Corrosion Resistant: resist chemical matters or electron chemical corrosion.

4, Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.

5, Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.

6, Long Life: more than 50 years under normal conditions.

7, Recycled and Environment-friendly.

Payment term :LC/TT .

Delivery time : 10 days /40 feet container.

Samples lead time: 3-7 days

MOQ: 100-4000pcs

Package: pcs/polybag, 4 meters/tube or as client's request
