PP-RCT Pipe High Flow High Temperature Resistant Water Supplying Ppr Pipe

PP-RCT Pipe High Flow High Temperature Resistant Water Supplying Ppr Pipe

Size:20-160mm
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

PP-RCT Pipe High Flow High Temperature Resistant Water Supplying Ppr Pipe

Payment & Shipping Terms

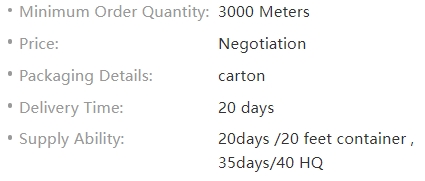

Minimum Order Quantity: 3000 Meters Price: Negotiation Packaging Details: carton Delivery Time: 20 days Supply Ability: 20days /20 feet container , 35days/40 HQ

Description

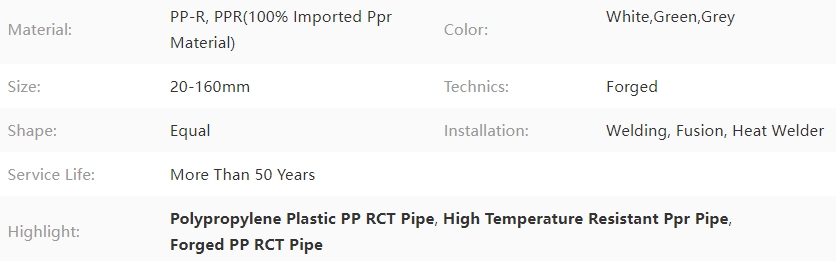

Material:	PP-R, PPR(100% Imported Ppr Material)	Color:	White,Green,Grey
Size:	20-160mm	Technics:	Forged
Shape:	Equal	Installation:	Welding, Fusion, Heat Welder
Service Life:	More Than 50 Years
High Light:	Polypropylene Plastic PP RCT Pipe, High Temperature Resistant Ppr Pipe, Forged PP RCT Pipe

PP-RCT Pipe High Flow High Temperature Resistant Water Supplying Ppr Pipe 0

New Hot Cheapest 100% Premium Custom Logo PPR Plastic Water Pipe

Product Introduction

Our PPR pipes are made of the highest quality PPR material, which is tested under extreme conditions & conforms to global quality standards for quality; our PPR pipes are reliable and designed to give levels of performance in the face of the harshest of elements. Conforming to world-class standards of quality, they are extremely reliable & offer convenient & reliable installation in any plumbing system.

Product Advantages

1.High Temperature Resistance
2.Heat Preservation
3.Heat Preservation
4.Corrosion Resistant
5.Lower Installation Costs

PP-RCT Pipe High Flow High Temperature Resistant Water Supplying Ppr Pipe 1

PP-RCT Pipe High Flow High Temperature Resistant Water Supplying Ppr Pipe 2

Characteristics of the PP-R Pipes;

Operating life for 20 C temperature and 25 atm pressure conditions is 50 years.
They have high resistance to chemical substances.
They are resistant to corrosion.
They do not cause calcification or oxidation.
They do not affect the color, smell or taste of water.
They are composed of smooth and shiny inner surface.
No diameter narrowing occurs at welding points.
They show high welding performance.
They provide heat and sound installation.
They are hardly flammable. (Ref: DIN 19560 and DIN 4102)
They are environment friendly.

Outer Diameter(mm)	Thickness(mm)
Outer Diameter(mm)	S5	s4	S3.2	S2.5(customized)
20+0.3	2.0+0.3	2.3+0.4	2.8+0.4	3.4+0.5
25+0.3	2.3+0.4	2.8+0.4	3.5+0.5	4.2+0.6
32+0.3	2.9+0.4	3.6+0.5	4.4+0.6	5.4+0.7
40+0.3	3.7+0.5	4.5+0.6	5.5+0.7	6.7+0.8
50+0.3	4.6+0.6	5.6+0.7	6.9+0.8	8.3+1.0
63+0.3	5.8+0.7	7.1+0.9	8.6+1.0	10.5+1.2
75+0.3	6.8+0.8	8.4+1.0	10.3+1.2	12.5+1.4
90+0.3	8.2+1.0	10.1+1.2	12.3+1.4	15.0+1.6
110+0.3	10.0+1.0	12.3+1.4	15.1+1.7	18.3+2.0
125+0.3	11.4+1.3	14.0+1.5	17.1+1.9	20.8+2.2
140+0.3	12.7+1.4	15.7+1.7	19.2+2.1	23.3+2.5
160+0.3	14.6+1.6	17.9+1.9	21.9+2.3	26.6+2.8
