Plastic Ppr Pipe

Heavier Weight Ppr Plumbing Pipe Equal Shape With Standard Thickness

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

Heavier Weight Ppr Plumbing Pipe Equal Shape With Standard Thickness

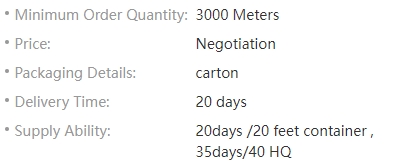

Payment & Shipping Terms

Description

Competitive Price 100% Full Inspection Polypropylene Plastic Pipe DIN8077/8078

Application
1. Residential cool/hot water piping system.
2. Transport and discharge for industrial water and chemicals.
3. Piping system for purified water and drinking water.
4. Production line system of beverage and liquid medicine.
5. Solar heating and cooling equipment system.
6. Piping system for air compression.
7. Caliduct, floor and wall heating equipment.
8. Piping system for other industries and agriculture.

Heavier Weight Ppr Plumbing Pipe Equal Shape With Standard Thickness 0

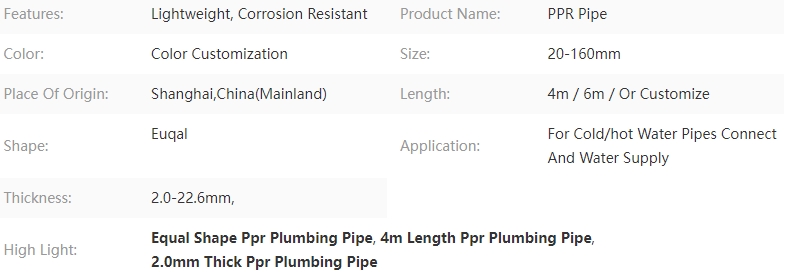

Product Information

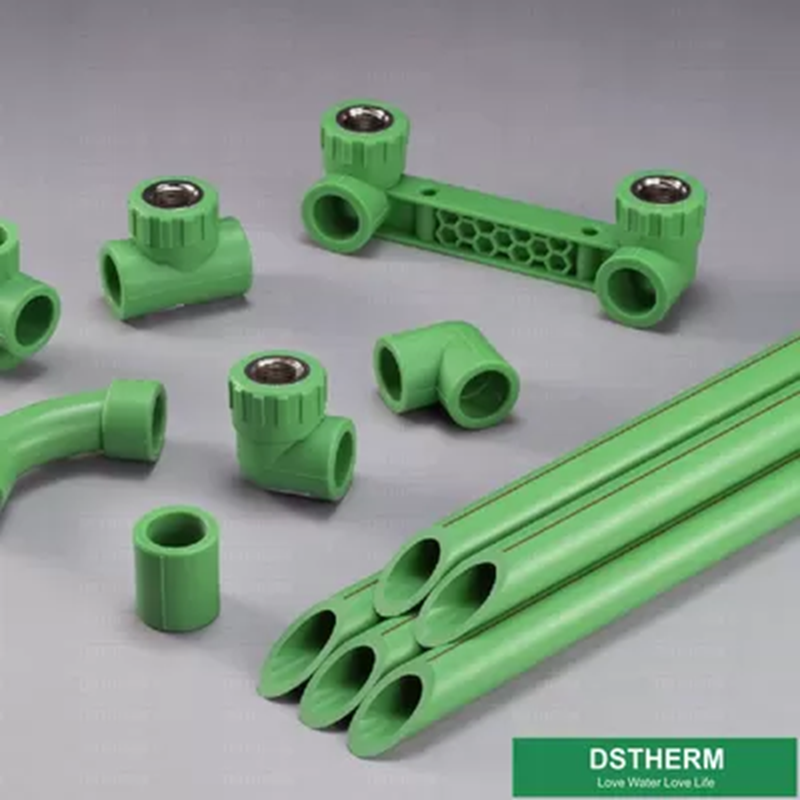

PPR pipe & fittings for water supply:

1.Material:PPR--original material from Korea
2.Size:20mm to 160mm
3.Color:green /white/coffee or on request
4.Standard:DIN
5.the reasonable price with excellent quality
6.quick delivery settle for the sales planning of customers

PPR products features:

1).Sanitary; innocuity; green architecture material; can be used for purified water pipe

2).Heat-enduring; temperature of the water running through the pipe can reach 95 degree under the long time regular work pressure

3).Erode-enduring; anti-filthy; avoid pipe jam and rust on basin and bathtub

4).Keep warm and save energy: caloric transmit quotiety is 1/200.It is a good facility to keep the pipe warm and save energy.

5).Light ;intensive;t he weight is 1/8 of the metal; compression resistance has reached 5MPa and above; tenacity; able to endure impacts

ADVANTAGED:

1) Healthy, bacteriological neutral, conforming to drinking water standards.

2) High impact strength and resistant to high temperatures(the maximum sustained working

temperature is up to 70 degrees, the maximum transient temperature is up to 95 degrees)

3) Convenient and reliable installation, low construction expenses

4) Excellent heat-insulation property from minimum thermal conductivity

5) Lightweight, convenient to transport and handle, good for labor-saving

6) Smooth inner walls reduce pressure loss and increase flow speed

7) Sound insulation (reduced by 40% compared to galvanized steel pipes)

8) Light colors and excellent design ensure suitability for both exposed and hidden installation

9) Recyclable, environment-friendly, accords with GBM standards

Outer Diameter(mm)	Thickness(mm)
Outer Diameter(mm)	S5	s4	S3.2	S2.5(customized)
20+0.3	2.0+0.3	2.3+0.4	2.8+0.4	3.4+0.5
25+0.3	2.3+0.4	2.8+0.4	3.5+0.5	4.2+0.6
32+0.3	2.9+0.4	3.6+0.5	4.4+0.6	5.4+0.7
40+0.3	3.7+0.5	4.5+0.6	5.5+0.7	6.7+0.8
50+0.3	4.6+0.6	5.6+0.7	6.9+0.8	8.3+1.0
63+0.3	5.8+0.7	7.1+0.9	8.6+1.0	10.5+1.2
75+0.3	6.8+0.8	8.4+1.0	10.3+1.2	12.5+1.4
90+0.3	8.2+1.0	10.1+1.2	12.3+1.4	15.0+1.6
110+0.3	10.0+1.0	12.3+1.4	15.1+1.7	18.3+2.0
125+0.3	11.4+1.3	14.0+1.5	17.1+1.9	20.8+2.2
140+0.3	12.7+1.4	15.7+1.7	19.2+2.1	23.3+2.5
160+0.3	14.6+1.6	17.9+1.9	21.9+2.3	26.6+2.8
