Plastic Ppr Pipe

Environmental Friendly Polypropylene Plastic Pipe , Custom Plastic Water Pipe

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

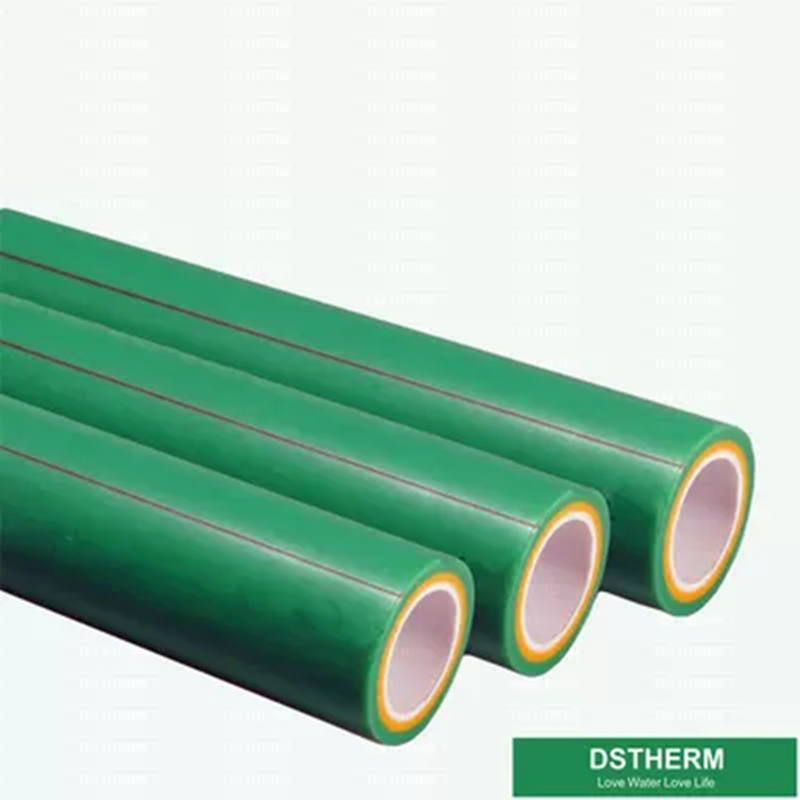

Environmental Friendly Polypropylene Plastic Pipe , Custom Plastic Water Pipe

Payment & Shipping Terms

Description

New Design Best Price 100% Full Test PPR Pipe factory with 25 years experience 20-160mm

Outer Diameter(mm)	Thickness(mm)
Outer Diameter(mm)	S5	s4	S3.2	S2.5(customized)
20+0.3	2.0+0.3	2.3+0.4	2.8+0.4	3.4+0.5
25+0.3	2.3+0.4	2.8+0.4	3.5+0.5	4.2+0.6
32+0.3	2.9+0.4	3.6+0.5	4.4+0.6	5.4+0.7
40+0.3	3.7+0.5	4.5+0.6	5.5+0.7	6.7+0.8
50+0.3	4.6+0.6	5.6+0.7	6.9+0.8	8.3+1.0
63+0.3	5.8+0.7	7.1+0.9	8.6+1.0	10.5+1.2
75+0.3	6.8+0.8	8.4+1.0	10.3+1.2	12.5+1.4
90+0.3	8.2+1.0	10.1+1.2	12.3+1.4	15.0+1.6
110+0.3	10.0+1.0	12.3+1.4	15.1+1.7	18.3+2.0
125+0.3	11.4+1.3	14.0+1.5	17.1+1.9	20.8+2.2
140+0.3	12.7+1.4	15.7+1.7	19.2+2.1	23.3+2.5
160+0.3	14.6+1.6	17.9+1.9	21.9+2.3	26.6+2.8

1.High Temperature Resistance:

PPR pipe's maximum sustained working temperature is up to 70°C , the maximum transient temperature is up to 90°C .

2.Heat Preservation:

PPR pipe's low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.

3.Non-toxic:

no heavy metal additives, our PN25 pp materials plastic food grade ppr pipe with red blue color line would not be covered with dirt or contaminated by bacterium.

4.Corrosion Resistance:

resist chemical matters and electron chemical corrosion.

5.Low Installation Costs:

light weight and ease of installation can reduce installation costs.

6.Longevity: more than 50 years under proper use.

7.Recycled and Environment-friendly.

Environmental Friendly Polypropylene Plastic Pipe , Custom Plastic Water Pipe 0

Advantages of using PPR pipe:

♦ Health and environmental protection. Polypropylene is environmentally friendly materials, can be used to make drinking water delivery.

♦ Joint with hot melt connection, become a whole, 100 percent no leakage, other materials with silk mouth connection, its permeability less, also avoid the glue bonding of toxic.
♦ High temperature resistance, good pressure resistance, small conveying resistance.
♦ The price is cheap and affordable.
♦ Long service life, according to the national standard GB/T18742 production and use can be used for 50 years.

Parameters of the PPR Pipe SDR11/S5/PN10
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter
20	20	2.0	16.0
25	25	2.3	20.4
32	32	2.9	26.2
40	40	3.7	32.6
50	50	4.6	40.8
63	63	5.8	51.4
75	75	6.8	61.4
90	90	8.2	73.6
110	110	10	90.0
160	160	14.6	130.8
