Plastic Ppr Pipe

  • Double Color Ppr Plastic Water Pipe Polypropylene Plastic Pipe
Double Color Ppr Plastic Water Pipe Polypropylene Plastic Pipe

Double Color Ppr Plastic Water Pipe Polypropylene Plastic Pipe

  • Place of Origin:Zhejiang China
  • Brand Name:DSTHERM
  • Certification:ISO9001
  • Model Number:20-160mm
  • Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
  • INQUIRY


Double Color Ppr Plastic Water Pipe Polypropylene Plastic Pipe

Payment & Shipping Terms

Description


Double Color Ppr Plastic Water Pipe Polypropylene Plastic Pipe 0

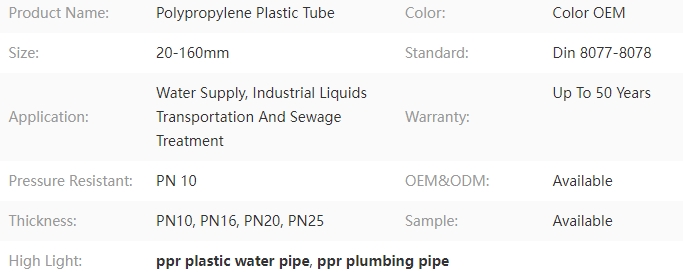

Polypropylene Plastic Tube ISO9001, DIN8077/8078 Polypropylene Color customization Brand Name Seefine or OEM



Product Introduction

Our PPR pipes are made of the highest quality PPR material, which is tested under extreme conditions & conforms to global quality standards for quality; our PPR pipes are reliable and designed to give levels of performance in the face of the harshest of elements. Conforming to world-class standards of quality, they are extremely reliable & offer convenient & reliable installation in any plumbing system.



ADVANTAGES:

1) Healthy, bacteriological neutral, conforming to drinking water standards.



2) High impact strength and resistant to high temperatures(the maximum sustained working

temperature is up to 70 degrees, the maximum transient temperature is up to 95 degrees)



3) Convenient and reliable installation, low construction expenses



4) Excellent heat-insulation property from minimum thermal conductivity



5) Lightweight, convenient to transport and handle, good for labor-saving



6) Smooth inner walls reduce pressure loss and increase flow speed



7) Sound insulation (reduced by 40% compared to galvanized steel pipes)



8) Light colors and excellent design ensure suitability for both exposed and hidden installation



9) Recyclable, environment-friendly, accords with GBM standards



Parameters of the PPR Pipe SDR11/S5/PN10
Nominal Outer Diameter Diameter Wall Thickness Inner Diameter
20 20 2.0 16.0
25 25 2.3 20.4
32 32 2.9 26.2
40 40 3.7 32.6
50 50 4.6 40.8
63 63 5.8 51.4
75 75 6.8 61.4
90 90 8.2 73.6
110 110 10 90.0
160 160 14.6 130.8



Parameters of the PPR Pipe SDR9/S4/PN12.5
Nominal Outer Diameter Diameter Wall Thickness Inner Diameter
20 20 2.3 15.4
25 25 2.8 19.4
32 32 3.6 24.8
40 40 4.5 31.0
50 50 5.6 38.8
63 63 7.1 48.8
75 75 8.4 58.2
90 90 10.1 69.8
110 110 12.3 85.4
160 160 17.9 124.2



Parameters of the PPR Pipe SDR7.4/S3.2/PN16
Nominal Outer Diameter Diameter Wall Thickness Inner Diameter
20 20 2.8 14.4
25 25 3.5 18.0
32 32 4.4 23.3
40 40 5.5 29.0
50 50 6.9 36.2
63 63 8.6 45.6
75 75 10.3 54.4
90 90 12.3 65.4
110 110 15.1 79.8



Parameters of the PPR Pipe SDR6/S2.5/PN20
Nominal Outer Diameter Diameter Wall Thickness Inner Diameter
20 20 3.4 13.2
25 25 4.2 16.6
32 32 5.4 21.2
40 40 6.7 26.6
50 50 8.3 33.4
63 63 10.5 42.0
75 75 12.5 50.0
90 90 15.0 60.0
110 110 18.3 73.4



Applications

1) Cold and hot water supply systems for civil and industrial constructions, e.g. in

residential buildings, hospitals, hotels, school and office buildings, ship building

2) Drinking water systems and food industry pipe works

3) Central air conditioning system

4) Irrigating system for gardens and green houses

5) Public and sport facilities such as swimming pools and stadiums

6) For rainwater utilization systems

Double Color Ppr Plastic Water Pipe Polypropylene Plastic Pipe 1

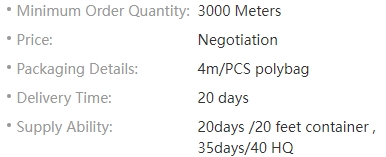

Payment term :LC ,TT .

Delivery time : 20days /20 feet container , 35days/40 HQ

Samples lead time: 3-7 days

MOQ: 100-4000pcs

Package: pcs/polybag, 4 meters/tube or as client's request
