Plastic Ppr Pipe

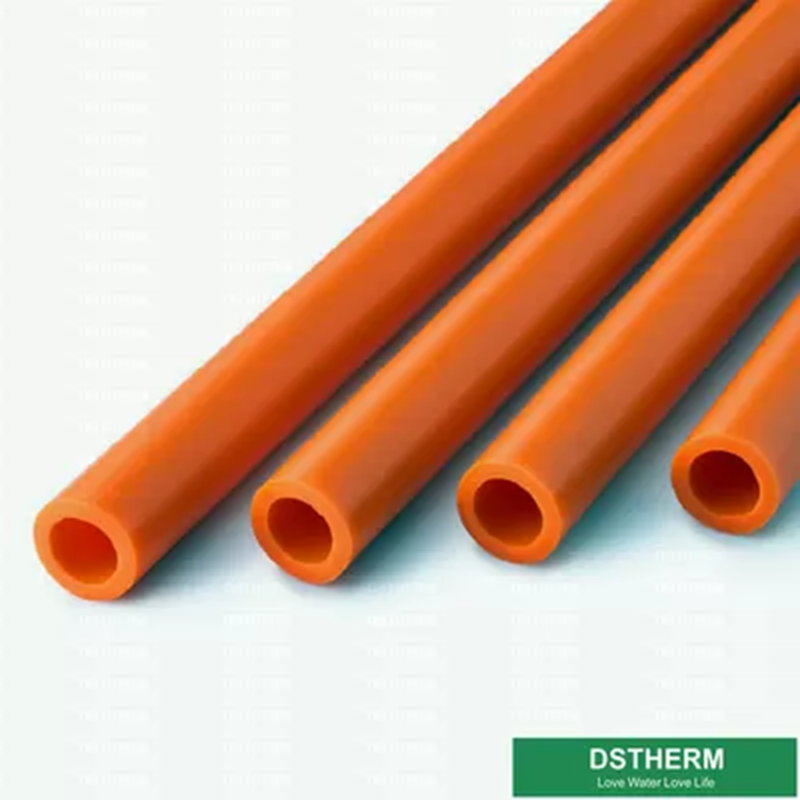

2mm Thickness Ppr Plastic Pipe Polypropylene Water Supply Pipe DIN Standard

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm

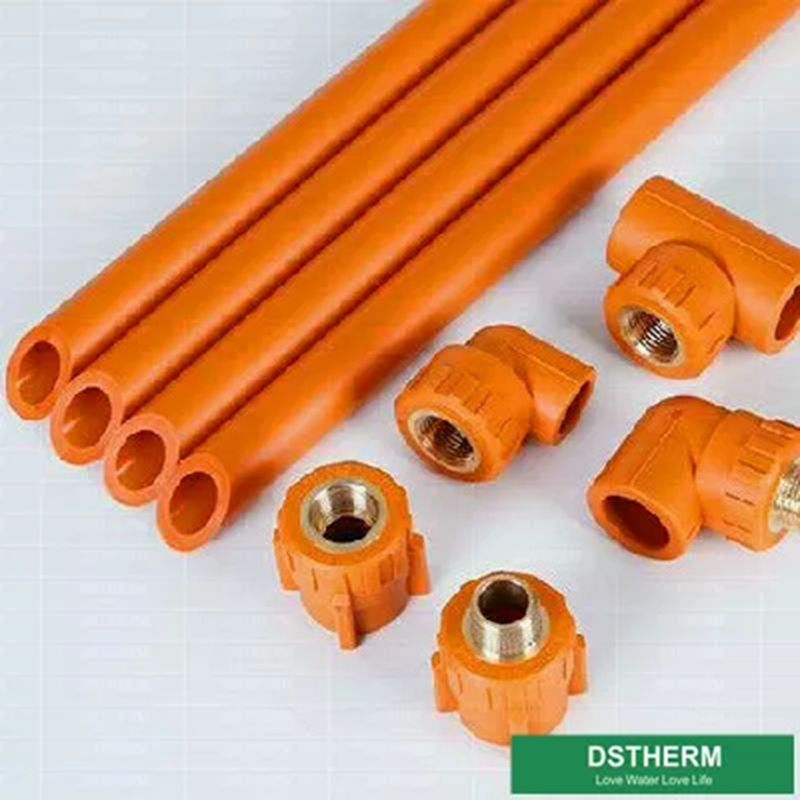

Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

2mm Thickness Ppr Plastic Pipe Polypropylene Water Supply Pipe DIN Standard

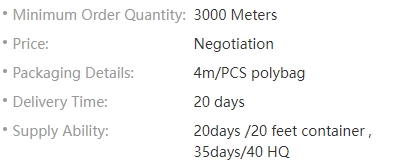

Payment & Shipping Terms

Description

2mm Thickness Ppr Plastic Pipe Polypropylene Water Supply Pipe DIN Standard 0

Polypropylene Plastic Pipe ISO9001, DIN8077/8078 Polypropylene Color customization

Product Information

· 1. Material: PPR -- original material from Korea

· 2. Size: 20mm to 160mm

· 3. Color: green /white/coffee or on request

· 4. Standard: DIN

· 5. the reasonable price with excellent quality

· 6. quick delivery settle for the sales planning of customers

P-R Water Supply Pipe

	PN 1.0MPa	PN 1.6MPa	PN 2.0MPa	PN 2.5MPa
Outer Diameter d_n(mm)	Wall Thickness e_n(mm)	Wall Thickness e_n(mm)	Wall Thickness e_n(mm)	Wall Thickness e_n(mm)
16		1.9	2.2
20	2	2.3	2.8	3.4
25	2.3	2.8	3.5	4.2
32	2.9	3.6	4.4	5.4
40	3.7	4.5	5.5	6.7
50	4.6	5.6	6.9	8.3
63	5.8	7.1	8.6	10.5
75	6.8	8.4	10.1	12.5
90	8.2	10.1	12.3	15
110	10	12.3	15.1	18.3
160	14.6	17.9	21.9	26.6

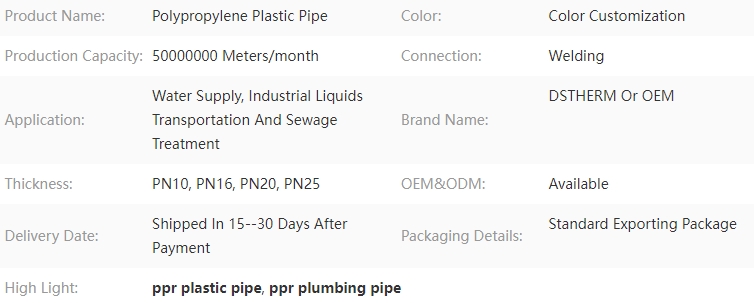

Product name	PN25 pp materials plastic food grade ppr pipe with red blue color line
Type	ppr plastic pipe
Color	white or customized
MOQ	1000SQM
Thickness	2.0-26.6mm
Raw material	PPR
Country of origin	China
Payment terms	30% T/T as deposit, the balance being paid against copy of B/L.
Application of ppr pipes	Used to hot and cold water supply
Advantage of PPR pipes	Health, non-toxic, resistance to high temperature and high pressure, light weight, wall smooth, long service life, green environmental protection.
Delivery time	Within 15~ 20 days after received your advance payment

Outer Diameter(mm)	Thickness(mm)
Outer Diameter(mm)	S5	s4	S3.2	S2.5(customized)
20+0.3	2.0+0.3	2.3+0.4	2.8+0.4	3.4+0.5
25+0.3	2.3+0.4	2.8+0.4	3.5+0.5	4.2+0.6
32+0.3	2.9+0.4	3.6+0.5	4.4+0.6	5.4+0.7
40+0.3	3.7+0.5	4.5+0.6	5.5+0.7	6.7+0.8
50+0.3	4.6+0.6	5.6+0.7	6.9+0.8	8.3+1.0
63+0.3	5.8+0.7	7.1+0.9	8.6+1.0	10.5+1.2
75+0.3	6.8+0.8	8.4+1.0	10.3+1.2	12.5+1.4
90+0.3	8.2+1.0	10.1+1.2	12.3+1.4	15.0+1.6
110+0.3	10.0+1.0	12.3+1.4	15.1+1.7	18.3+2.0
125+0.3	11.4+1.3	14.0+1.5	17.1+1.9	20.8+2.2
140+0.3	12.7+1.4	15.7+1.7	19.2+2.1	23.3+2.5
160+0.3	14.6+1.6	17.9+1.9	21.9+2.3	26.6+2.8

2mm Thickness Ppr Plastic Pipe Polypropylene Water Supply Pipe DIN Standard 1
Applications
1) Cold and hot water supply systems for civil and industrial constructions, e.g. in
residential buildings, hospitals, hotels, school and office buildings, ship building
2) Drinking water systems and food industry pipe works
3) Central air conditioning system
4) Irrigating system for gardens and green houses
5) Public and sport facilities such as swimming pools and stadiums
6) For rainwater utilization systems

Advantages:
1, High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
2, Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.
Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.
3, Corrosion Resistant: resist chemical matters or electron chemical corrosion.
4, Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
5, Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
6, Long Life: more than 50 years under normal conditions.
7, Recycled and Environment-friendly.

Payment term :LC ,TT .
Delivery time : 20days /20 feet container , 35days/40 HQ
Samples lead time: 3-7 days
MOQ: 100-4000pcs
Package: pcs/polybag, 4 meters/tube or as client's request
