Plastic Ppr Pipe

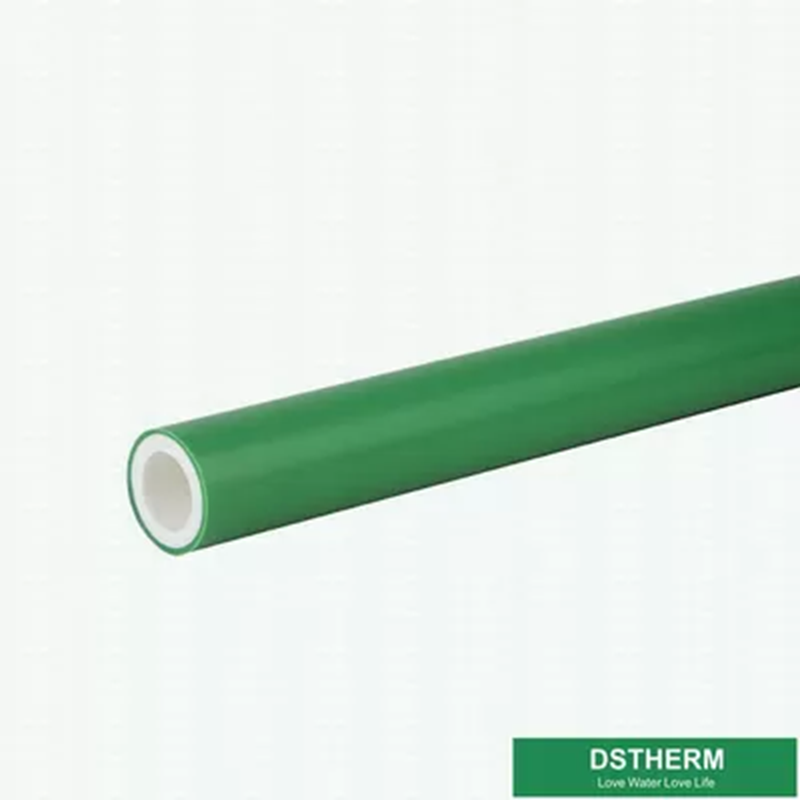

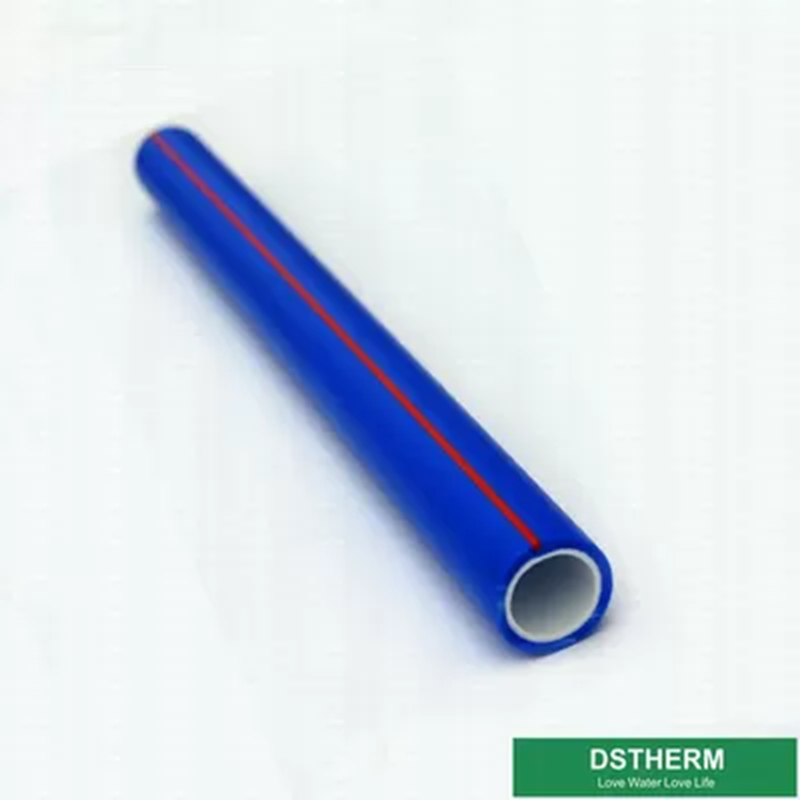

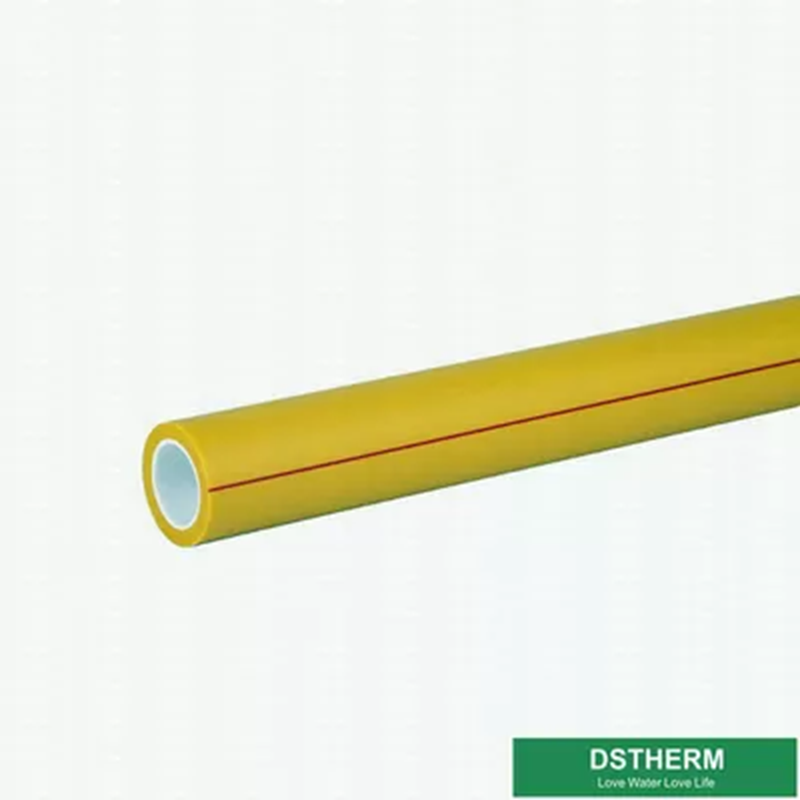

PPR Chemical Resistant Plastic Pipe Recycled Middle Weight For Cold / Hot Water

PPR Chemical Resistant Plastic Pipe Recycled Middle Weight For Cold / Hot Water

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

PPR Chemical Resistant Plastic Pipe Recycled Middle Weight For Cold / Hot Water

Payment & Shipping Terms

Description

PPR Chemical Resistant Plastic Pipe Recycled Middle Weight For Cold / Hot Water 0

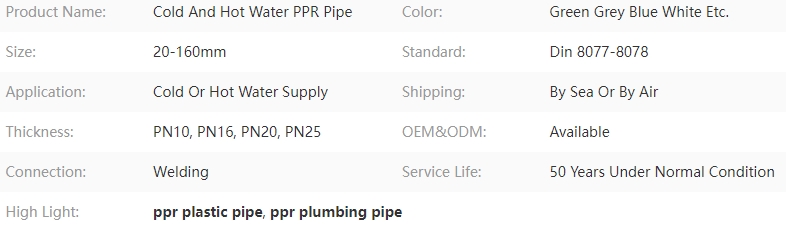

Cold and Hot Water PPR Pipe ISO9001 Polypropylene DIN8077/8078 20-160mm

1. High Temperature Resistance:
PPR pipe's maximum sustained working temperature is up to 70°C , the maximum transient temperature is up to 90°C .

2. Heat Preservation:
PPR pipe's low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.

3. Non-toxic:
no heavy metal additives, our PN25 pp materials plastic food grade ppr pipe with red blue color line would not be covered with dirt or contaminated by bacterium.

4. Corrosion Resistance:
resist chemical matters and electron chemical corrosion.

5. Low Installation Costs:
light weight and ease of installation can reduce installation costs.

6. Longevity: more than 50 years under proper use.

7.Recycled and Environment-friendly.

Parameters of the PPR Pipe SDR9/S4/PN12.5
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter
20	20	2.3	15.4
25	25	2.8	19.4
32	32	3.6	24.8
40	40	4.5	31.0
50	50	5.6	38.8
63	63	7.1	48.8
75	75	8.4	58.2
90	90	10.1	69.8
110	110	12.3	85.4
160	160	17.9	124.2

Parameters of the PPR Pipe SDR7.4/S3.2/PN16
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter
20	20	2.8	14.4
25	25	3.5	18.0
32	32	4.4	23.3
40	40	5.5	29.0
50	50	6.9	36.2
63	63	8.6	45.6
75	75	10.3	54.4
90	90	12.3	65.4
110	110	15.1	79.8

Parameters of the PPR Pipe SDR6/S2.5/PN20
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter
20	20	3.4	13.2
25	25	4.2	16.6
32	32	5.4	21.2
40	40	6.7	26.6
50	50	8.3	33.4
63	63	10.5	42.0
75	75	12.5	50.0
90	90	15.0	60.0
110	110	18.3	73.4

Applications
1) Cold and hot water supply systems for civil and industrial constructions, e.g. in
residential buildings, hospitals, hotels, school and office buildings, ship building
2) Drinking water systems and food industry pipe works
3) Central air conditioning system
4) Irrigating system for gardens and green houses
5) Public and sport facilities such as swimming pools and stadiums
6) For rainwater utilization systems
PPR Chemical Resistant Plastic Pipe Recycled Middle Weight For Cold / Hot Water 1

Advantages:
1, High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
2, Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.
Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.
3, Corrosion Resistant: resist chemical matters or electron chemical corrosion.
4, Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
5, Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
6, Long Life: more than 50 years under normal conditions.
7, Recycled and Environment-friendly.

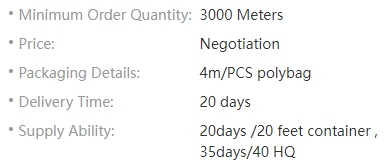

Payment term :LC ,TT .
Delivery time : 20days /20 feet container , 35days/40 HQ
Samples lead time: 3-7 days
MOQ: 100-4000pcs
Package: pcs/polybag, 4 meters/tube or as client's request
