Orange Color Plastic PPR Pipe Heavier Weight Anti - Filthy Compression Resistance

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

Orange Color Plastic PPR Pipe Heavier Weight Anti - Filthy Compression Resistance

Payment & Shipping Terms

Description

Orange Color Plastic PPR Pipe Heavier Weight Anti - Filthy Compression Resistance 0

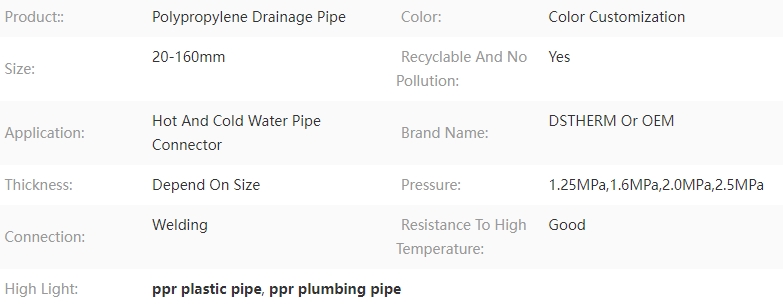

Polypropylene Drainage Pipe DIN8077/8078 Polypropylene Color customization 20-160mm

PPR products features:

1). Sanitary; innocuity; green architecture material; can be used for purified water pipe

2). Heat-enduring; temperature of the water running through the pipe can reach 95 degree under the long time regular work pressure

3). Erode-enduring; anti-filthy; avoid pipe jam and rust on basin and bathtub

4). Keep warm and save energy: caloric transmit quotiety is 1/200.It is a good facility to keep the pipe warm and save energy.

5). Light ;intensive;t he weight is 1/8 of the metal; compression resistance has reached 5MPa and above; tenacity; able to endure impacts

Parameters of the PPR Pipe SDR11/S5/PN10
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter
20	20	2.0	16.0
25	25	2.3	20.4
32	32	2.9	26.2
40	40	3.7	32.6
50	50	4.6	40.8
63	63	5.8	51.4
75	75	6.8	61.4
90	90	8.2	73.6
110	110	10	90.0
160	160	14.6	130.8

Parameters of the PPR Pipe SDR9/S4/PN12.5
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter
20	20	2.3	15.4
25	25	2.8	19.4
32	32	3.6	24.8
40	40	4.5	31.0
50	50	5.6	38.8
63	63	7.1	48.8
75	75	8.4	58.2
90	90	10.1	69.8
110	110	12.3	85.4
160	160	17.9	124.2

Applications

1) Cold and hot water supply systems for civil and industrial constructions, e.g. in

residential buildings, hospitals, hotels, school and office buildings, ship building

2) Drinking water systems and food industry pipe works

3) Central air conditioning system

4) Irrigating system for gardens and green houses

5) Public and sport facilities such as swimming pools and stadiums

6) For rainwater utilization systems

Orange Color Plastic PPR Pipe Heavier Weight Anti - Filthy Compression Resistance 1

Orange Color Plastic PPR Pipe Heavier Weight Anti - Filthy Compression Resistance 2

Advantages:

1, High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.

2, Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.

Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.

3, Corrosion Resistant: resist chemical matters or electron chemical corrosion.

4, Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.

5, Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.

6, Long Life: more than 50 years under normal conditions.

7, Recycled and Environment-friendly.

Payment term :LC ,TT .

Delivery time : 20days /20 feet container , 35days/40 HQ

Samples lead time: 3-7 days

MOQ: 100-4000pcs

Package: pcs/polybag, 4 meters/tube or as client's request
