Plastic Ppr Pipe

Corrosion Resistant Ppr Plumbing Pipe White Color High Working Temperature

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

Corrosion Resistant Ppr Plumbing Pipe White Color High Working Temperature

Payment & Shipping Terms

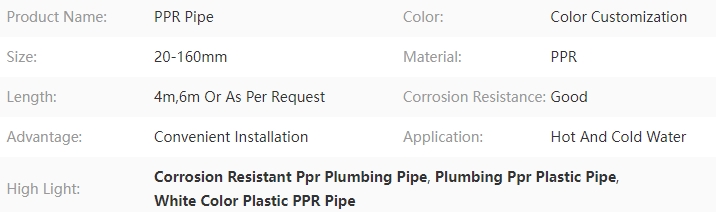

Description

AAA Quality Fast Delivery Lowest Price ppr cold and hot water supply pipe 20-160mm ISO

Material: PPR

size: 20-160mm

Pressure Rating: PN1.25,PN1.6,PN2.0,PN2.5

Colour: green ,light grey, white or other colors on request
Connection:socket fusion joint,electro fusion joint or transition joint
Standard: din 8077-8078

Production temperature:-45 to +95 degree cesius

Parameters of the PPR Pipe SDR11/S5/PN10
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter
20	20	2.0	16.0
25	25	2.3	20.4
32	32	2.9	26.2
40	40	3.7	32.6
50	50	4.6	40.8
63	63	5.8	51.4
75	75	6.8	61.4
90	90	8.2	73.6
110	110	10	90.0
160	160	14.6	130.8

Parameters of the PPR Pipe SDR9/S4/PN12.5
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter
20	20	2.3	15.4
25	25	2.8	19.4
32	32	3.6	24.8
40	40	4.5	31.0
50	50	5.6	38.8
63	63	7.1	48.8
75	75	8.4	58.2
90	90	10.1	69.8
110	110	12.3	85.4
160	160	17.9	124.2

Parameters of the PPR Pipe SDR7.4/S3.2/PN16
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter
20	20	2.8	14.4
25	25	3.5	18.0
32	32	4.4	23.3
40	40	5.5	29.0
50	50	6.9	36.2
63	63	8.6	45.6
75	75	10.3	54.4
90	90	12.3	65.4
110	110	15.1	79.8

Parameters of the PPR Pipe SDR6/S2.5/PN20
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter
20	20	3.4	13.2
25	25	4.2	16.6
32	32	5.4	21.2
40	40	6.7	26.6
50	50	8.3	33.4
63	63	10.5	42.0
75	75	12.5	50.0
90	90	15.0	60.0
110	110	18.3	73.4

Applications

1) Cold and hot water supply systems for civil and industrial constructions, e.g. in

residential buildings, hospitals, hotels, school and office buildings, ship building

2) Drinking water systems and food industry pipe works

3) Central air conditioning system

4) Irrigating system for gardens and green houses

5) Public and sport facilities such as swimming pools and stadiums

6) For rainwater utilization systems

Corrosion Resistant Ppr Plumbing Pipe White Color High Working Temperature 0

Advantages:

1, High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.

2, Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.

Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.

3, Corrosion Resistant: resist chemical matters or electron chemical corrosion.

4, Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.

5, Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.

6, Long Life: more than 50 years under normal conditions.

7, Recycled and Environment-friendly.

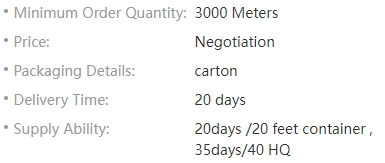

Payment term :LC ,TT .

Delivery time : 20days /20 feet container , 35days/40 HQ

Samples lead time: 3-7 days

MOQ: 100-4000pcs

Package: pcs/polybag, 4 meters/tube or as client's request
