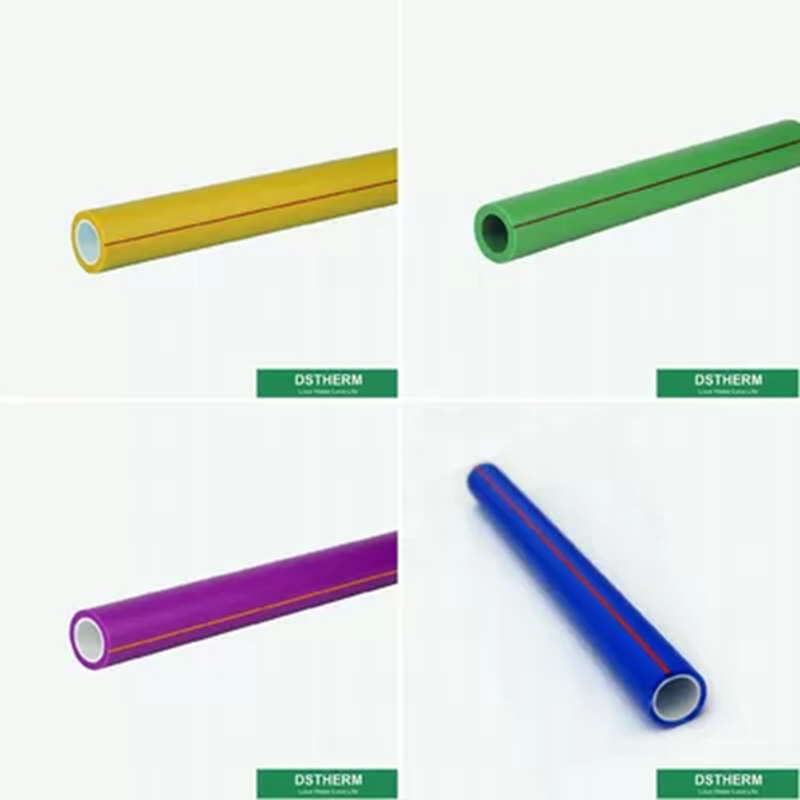

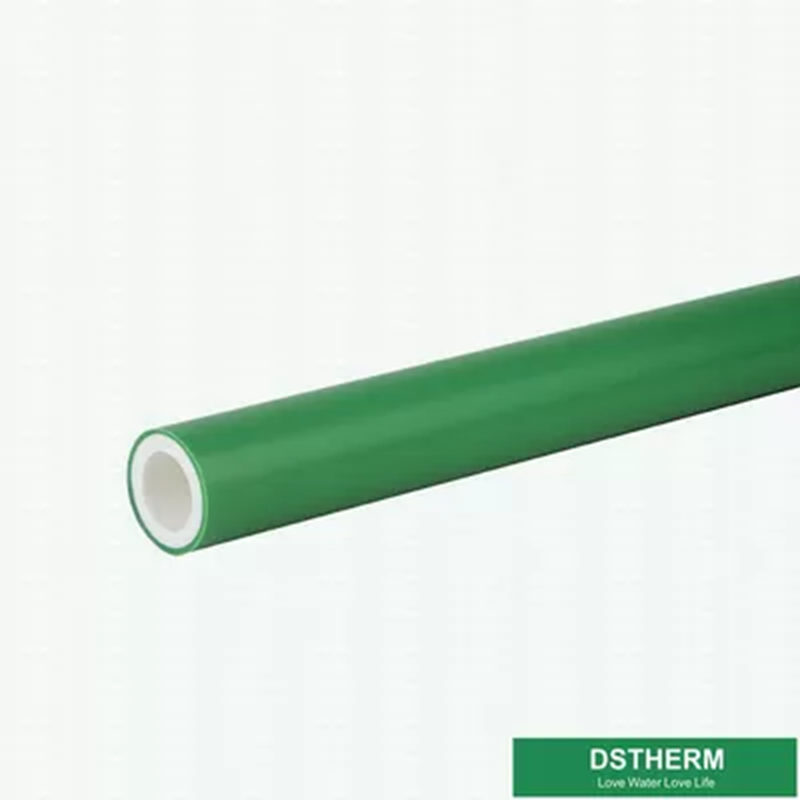

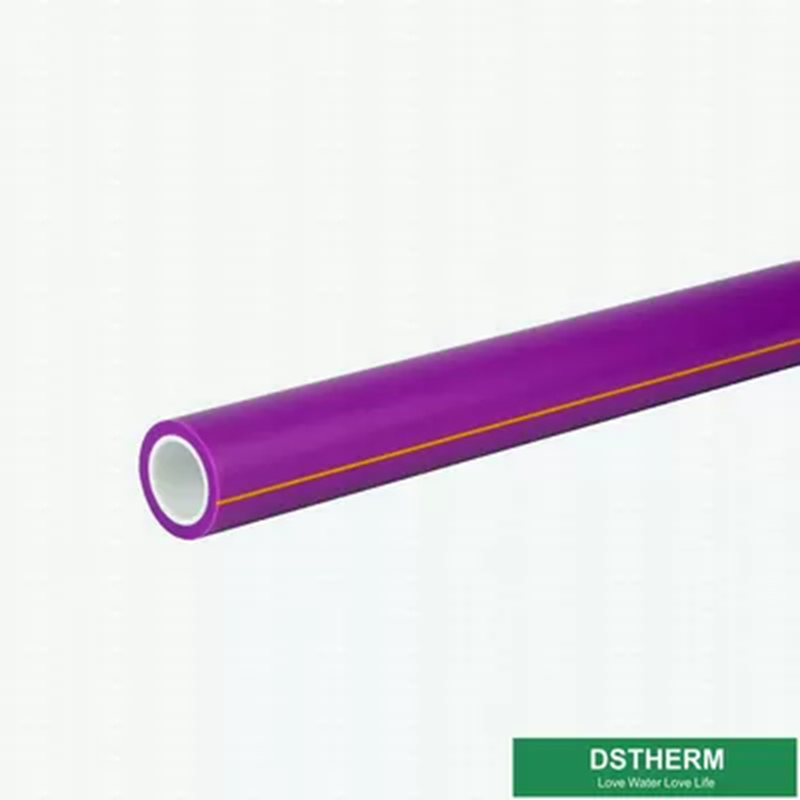

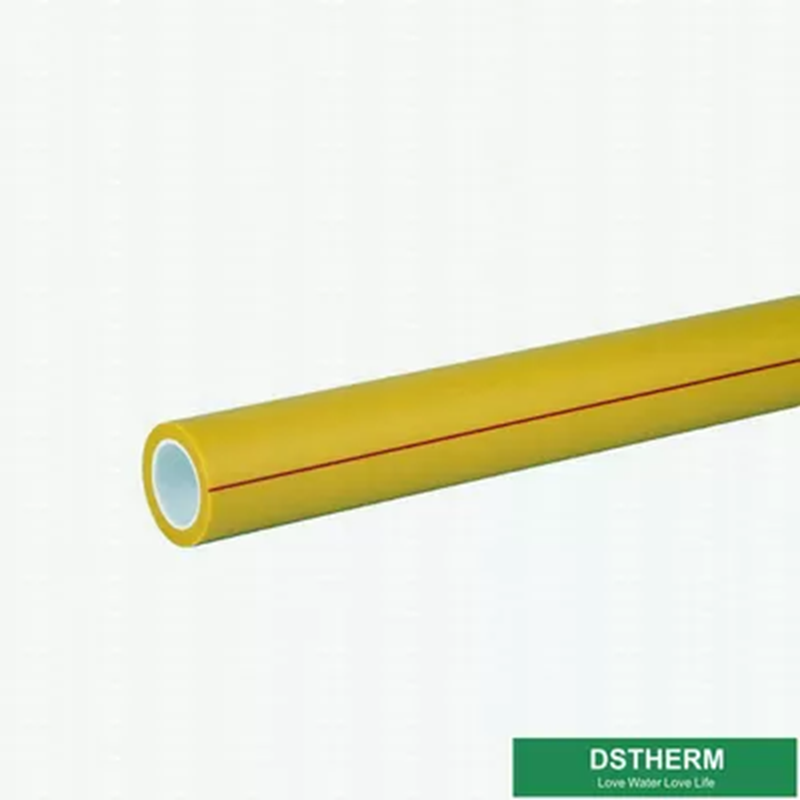

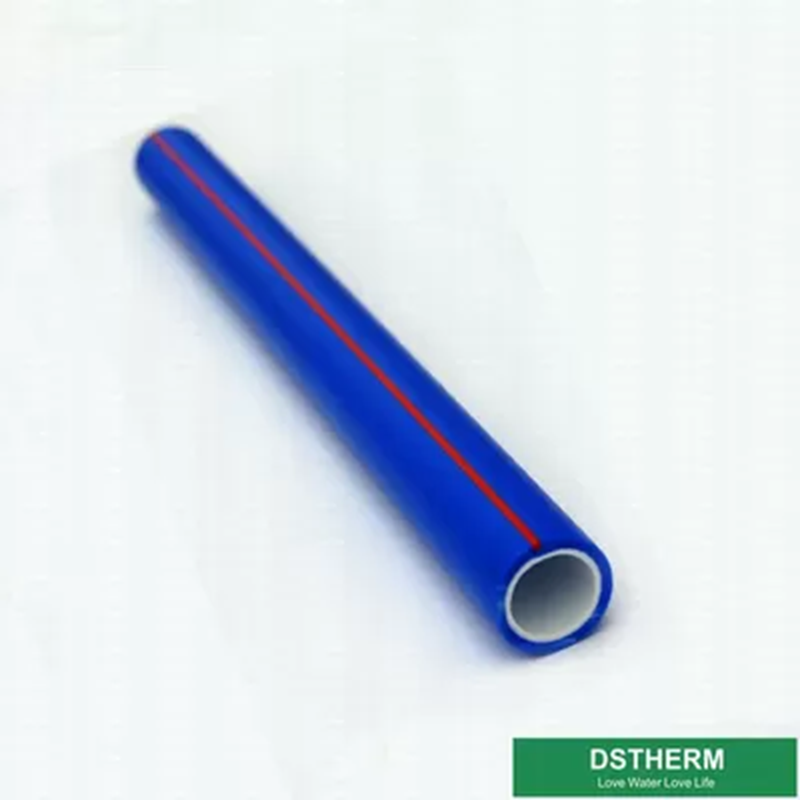

Colorful Ppr Polypropylene Water Supply Pipe Ppr Plastic Water Pipe Smooth Inner Walls

Colorful Ppr Polypropylene Water Supply Pipe Ppr Plastic Water Pipe Smooth Inner Walls

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

Colorful Ppr Polypropylene Water Supply Pipe Ppr Plastic Water Pipe Smooth Inner Walls

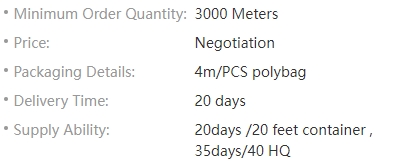

Payment & Shipping Terms

Description

Colorful Ppr Polypropylene Water Supply Pipe Ppr Plastic Water Pipe Smooth Inner Walls 0

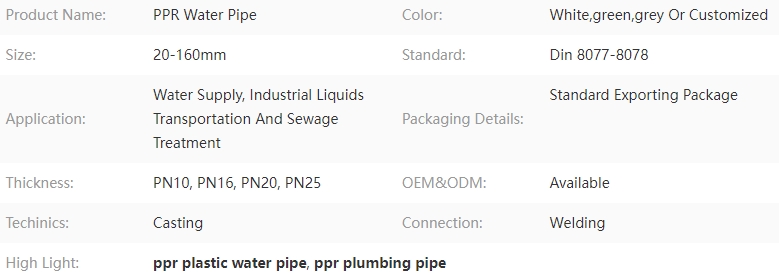

PPR Water Pipe ISO9001, DIN8077/8078 Polypropylene Color OEM 20-160mm

Material: PPR

size: 20-160mm

Pressure Rating: PN1.25,PN1.6,PN2.0,PN2.5

Colour: green ,light grey, white or other colors on request
Connection:socket fusion joint,electro fusion joint or transition joint
Standard: din 8077-8078

Production temperature:-45 to +95 degree cesius

Parameters of the PPR Pipe SDR11/S5/PN10
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter
20	20	2.0	16.0
25	25	2.3	20.4
32	32	2.9	26.2
40	40	3.7	32.6
50	50	4.6	40.8
63	63	5.8	51.4
75	75	6.8	61.4
90	90	8.2	73.6
110	110	10	90.0
160	160	14.6	130.8

PPR pipe & fittings for water supply:

Parameters of the PPR Pipe SDR6/S2.5/PN20
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter
20	20	3.4	13.2
25	25	4.2	16.6
32	32	5.4	21.2
40	40	6.7	26.6
50	50	8.3	33.4
63	63	10.5	42.0
75	75	12.5	50.0
90	90	15.0	60.0
110	110	18.3	73.4

· 1.Material:PPR--original material from Korea

· 2.Size:20mm to 160mm

· 3.Color:green /white/coffee or on request

· 4.Standard:DIN

· 5.the reasonable price with excellent quality

· 6.quick delivery settle for the sales planning of customers

PPR products features:

1).Sanitary; innocuity; green architecture material; can be used for purified water pipe

2).Heat-enduring; temperature of the water running through the pipe can reach 95 degree under the long time regular work pressure

3).Erode-enduring; anti-filthy; avoid pipe jam and rust on basin and bathtub

4).Keep warm and save energy: caloric transmit quotiety is 1/200.It is a good facility to keep the pipe warm and save energy.

5).Light ;intensive; the weight is 1/8 of the metal; compression resistance has reached 5MPa and above; tenacity; able to endure impacts

ADVANTAGED:

1) Healthy, bacteriological neutral, conforming to drinking water standards.

2) High impact strength and resistant to high temperatures(the maximum sustained working

temperature is up to 70 degrees, the maximum transient temperature is up to 95 degrees)

3) Convenient and reliable installation, low construction expenses

4) Excellent heat-insulation property from minimum thermal conductivity

5) Lightweight, convenient to transport and handle, good for labor-saving

6) Smooth inner walls reduce pressure loss and increase flow speed

7) Sound insulation (reduced by 40% compared to galvanized steel pipes)

8) Light colors and excellent design ensure suitability for both exposed and hidden installation

9) Recyclable, environment-friendly, accords with GBM standards

Colorful Ppr Polypropylene Water Supply Pipe Ppr Plastic Water Pipe Smooth Inner Walls 1

advantages:

· High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius

· Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe

· Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium

· Corrosion Resistant: resist chemical matters or electron chemical corrosion

· Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system

· Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes

· Long Life: more than 50 years under normal conditions

· Recycled and Environment-friendly
