Plastic Ppr Pipe

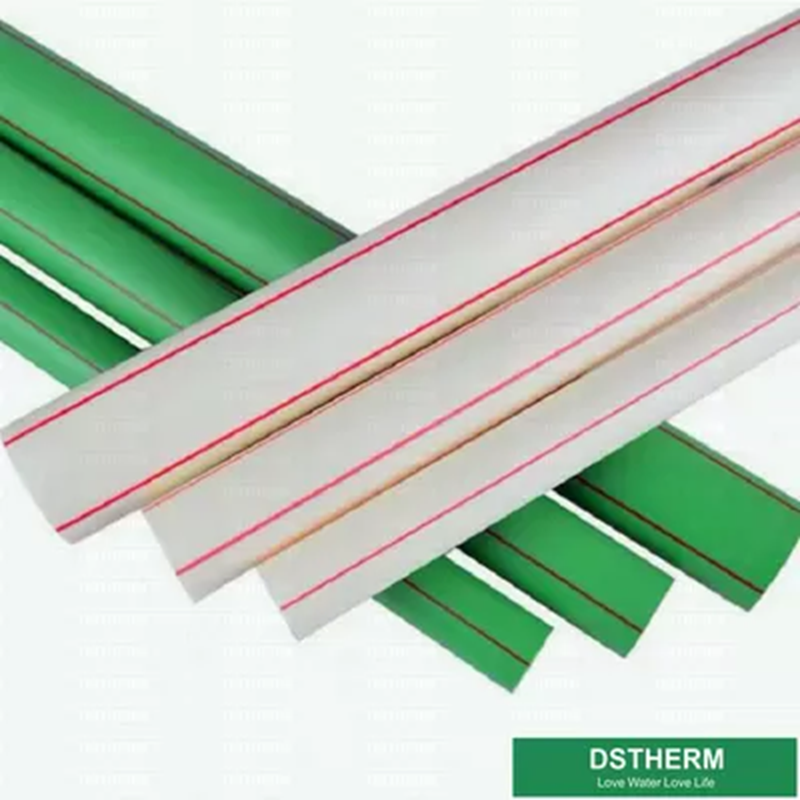

6m Length Smooth Surface Fiberglass Ppr Plumbing Pipe
- Place of Origin:Zhejiang China
- Brand Name:DSTHERM
- Certification:ISO9001
- Model Number:20-160mm
- Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
6m Length Smooth Surface Fiberglass Ppr Plumbing Pipe

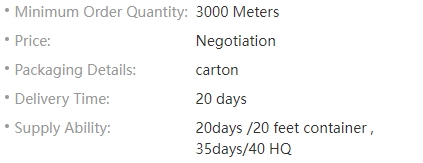

Payment & Shipping Terms
Description
Top Quality Free Sample Suppliers of ppr cold and hot water supply pipe 20-160mm
Product Advantages
1.High Temperature Resistance
2.Heat Preservation
3.Heat Preservation
4.Corrosion Resistant
5.Lower Installation Costs
OEM&ODM Service
Customized color can be green, red, blue, black,
grey etc.
Product Description
a. Non-conductive: Good insulation, assuring a safe system
b. Smooth surface : Small friction coefficient to ensure the cables go through smoothly
c. Fire resistance: Self-extinguishing, do not support combustion
d. Corrosion Resistance: Resistant to acids, bases and salts, assuring a lower maintenance cost and
a longer performance life
e. Impact strength: Resistant to compression and impact, suitable to be buried in concrete
f. Easy Installation: solvent cement and threading joining
PPR products features:
1).Sanitary; innocuity; green architecture material; can be used for purified water pipe
2).Heat-enduring; temperature of the water running through the pipe can reach 95 degree under the long time regular work pressure
3).Erode-enduring; anti-filthy; avoid pipe jam and rust on basin and bathtub
4).Keep warm and save energy: caloric transmit quotiety is 1/200.It is a good facility to keep the pipe warm and save energy.
5).Light ;intensive;t he weight is 1/8 of the metal; compression resistance has reached 5MPa and above; tenacity; able to endure impacts
ADVANTAGED:
1) Healthy, bacteriological neutral, conforming to drinking water standards.
2) High impact strength and resistant to high temperatures(the maximum sustained working
temperature is up to 70 degrees, the maximum transient temperature is up to 95 degrees)
3) Convenient and reliable installation, low construction expenses
4) Excellent heat-insulation property from minimum thermal conductivity
5) Lightweight, convenient to transport and handle, good for labor-saving
6) Smooth inner walls reduce pressure loss and increase flow speed
7) Sound insulation (reduced by 40% compared to galvanized steel pipes)
8) Light colors and excellent design ensure suitability for both exposed and hidden installation
9) Recyclable, environment-friendly, accords with GBM standards
PP-R Water Supply Pipe
|
|
PN 1.0MPa | PN 1.6MPa | PN 2.0MPa | PN 2.5MPa |
|
Outer Diameter dn(mm) |
Wall Thickness en (mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
| 16 | 1.9 | 2.2 | ||
| 20 | 2 | 2.3 | 2.8 | 3.4 |
| 25 | 2.3 | 2.8 | 3.5 | 4.2 |
| 32 | 2.9 | 3.6 | 4.4 | 5.4 |
| 40 | 3.7 | 4.5 | 5.5 | 6.7 |
| 50 | 4.6 | 5.6 | 6.9 | 8.3 |
| 63 | 5.8 | 7.1 | 8.6 | 10.5 |
| 75 | 6.8 | 8.4 | 10.1 | 12.5 |
| 90 | 8.2 | 10.1 | 12.3 | 15 |
| 110 | 10 | 12.3 | 15.1 | 18.3 |
| 160 | 14.6 | 17.9 | 21.9 | 26.6 |
