Description

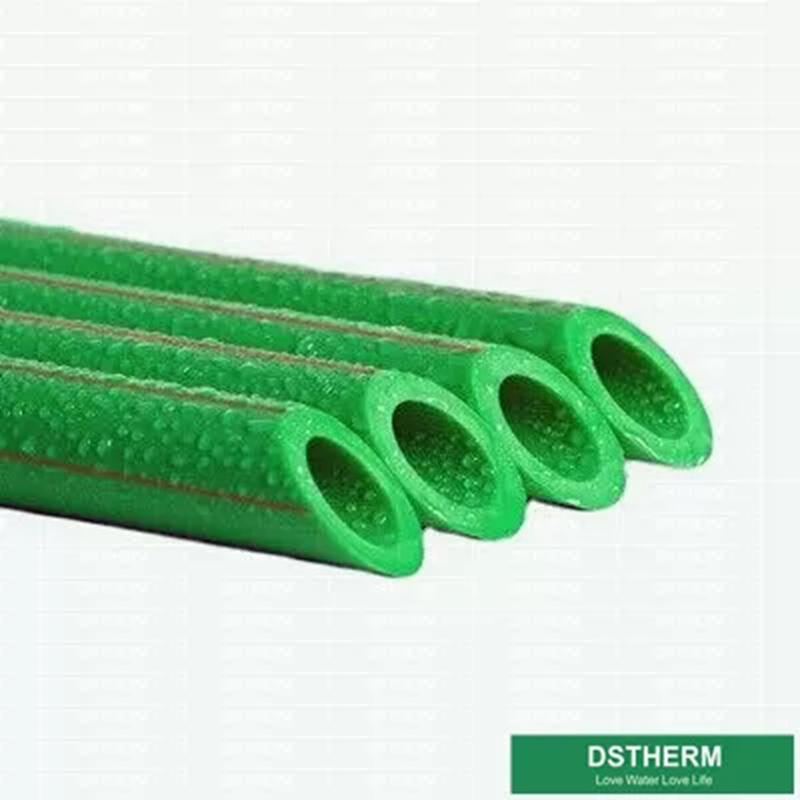

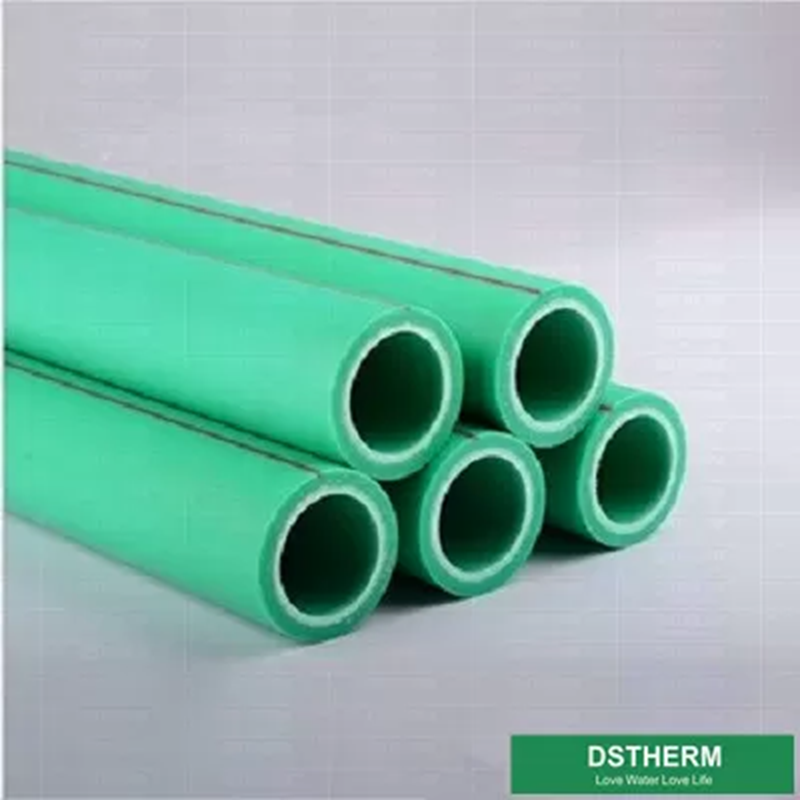

Wholesale Popular Style 3A Quality PP-R hot water pipe
Parameters of the PPR Pipe SDR11/S5/PN10 | |||
Nominal Outer Diameter | Diameter | Wall Thickness | Inner Diameter |
20 | 20 | 2.0 | 16.0 |
25 | 25 | 2.3 | 20.4 |
32 | 32 | 2.9 | 26.2 |
40 | 40 | 3.7 | 32.6 |
50 | 50 | 4.6 | 40.8 |
63 | 63 | 5.8 | 51.4 |
75 | 75 | 6.8 | 61.4 |
90 | 90 | 8.2 | 73.6 |
110 | 110 | 10 | 90.0 |
160 | 160 | 14.6 | 130.8 |
Parameters of the PPR Pipe SDR9/S4/PN12.5 | |||
Nominal Outer Diameter | Diameter | Wall Thickness | Inner Diameter |
20 | 20 | 2.3 | 15.4 |
25 | 25 | 2.8 | 19.4 |
32 | 32 | 3.6 | 24.8 |
40 | 40 | 4.5 | 31.0 |
50 | 50 | 5.6 | 38.8 |
63 | 63 | 7.1 | 48.8 |
75 | 75 | 8.4 | 58.2 |
90 | 90 | 10.1 | 69.8 |
110 | 110 | 12.3 | 85.4 |
160 | 160 | 17.9 | 124.2 |
Parameters of the PPR Pipe SDR7.4/S3.2/PN16 | |||
Nominal Outer Diameter | Diameter | Wall Thickness | Inner Diameter |
20 | 20 | 2.8 | 14.4 |
25 | 25 | 3.5 | 18.0 |
32 | 32 | 4.4 | 23.3 |
40 | 40 | 5.5 | 29.0 |
50 | 50 | 6.9 | 36.2 |
63 | 63 | 8.6 | 45.6 |
75 | 75 | 10.3 | 54.4 |
90 | 90 | 12.3 | 65.4 |
110 | 110 | 15.1 | 79.8 |
Product Description
a. Non-conductive: Good insulation, assuring a safe system
b. Smooth surface : Small friction coefficient to ensure the cables go through smoothly
c. Fire resistance: Self-extinguishing, do not support combustion
d. Corrosion Resistance: Resistant to acids, bases and salts, assuring a lower maintenance cost and
a longer performance life
e. Impact strength: Resistant to compression and impact, suitable to be buried in concrete
f. Easy Installation: solvent cement and threading joining
Advantage
1. Sanitary, non-toxic, no heavy metal additives, directly apply to the water supply system.
2. Heat insulation and Saving Energy: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.
Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.
3. Light weight, high strength and high impact strength.
4. Lower Installation Costs: light weight and good hot-melt performance can reduce installation costs by as much as 50% over metal piping system.
5. Convenient installation, reliable, recycled, environmental protection and safe.
6. Corrosion Resistant: resist chemical matters or electron chemical corrosion.
7 High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
8.Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
9. Long service life: more than fifty years under the normal pressure and temperature.
Intended use
For interior hot and cold water distribution systems in buildings and floor & central heating systems, air ducts
PN 10 - cold water distribution and floor heating systems
PN 16 - higher pressure cold water distribution and DHW systems at lower pressures
PN 20 - hot water distribution systems, central heating
Application
1. Residential cool/hot water piping system.
2. Transport and discharge for industrial water and chemicals.
3. Piping system for purified water and drinking water.
4. Production line system of beverage and liquid medicine.
5. Solar heating and cooling equipment system.
6. Piping system for air compression.
7. Caliduct, floor and wall heating equipment.
8. Piping system for other industries and agriculture
