20mm Diameter Plastic PPR Pipe Sanitary Energy Saving Easy Installation

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

20mm Diameter Plastic PPR Pipe Sanitary Energy Saving Easy Installation

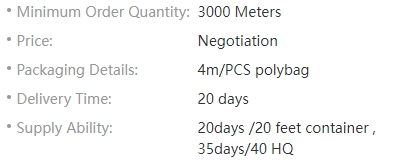

Payment & Shipping Terms

Description

20mm Diameter Plastic PPR Pipe Sanitary Energy Saving Easy Installation 0

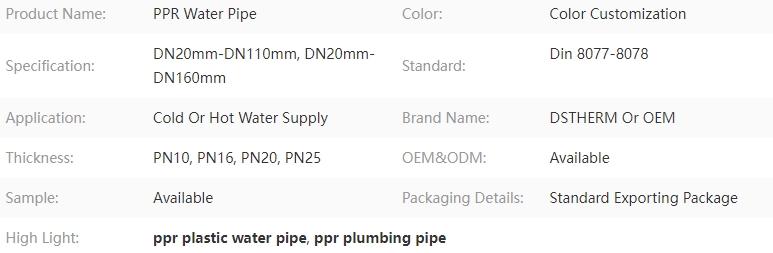

PPR Water Pipee ISO9001, DIN8077/8078 Polypropylene Color customization 20-160mm

Parameters of the PPR Pipe SDR11/S5/PN10
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter
20	20	2.0	16.0
25	25	2.3	20.4
32	32	2.9	26.2
40	40	3.7	32.6
50	50	4.6	40.8
63	63	5.8	51.4
75	75	6.8	61.4
90	90	8.2	73.6
110	110	10	90.0
160	160	14.6	130.8

Parameters of the PPR Pipe SDR9/S4/PN12.5
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter
20	20	2.3	15.4
25	25	2.8	19.4
32	32	3.6	24.8
40	40	4.5	31.0
50	50	5.6	38.8
63	63	7.1	48.8
75	75	8.4	58.2
90	90	10.1	69.8
110	110	12.3	85.4
160	160	17.9	124.2

Parameters of the PPR Pipe SDR7.4/S3.2/PN16
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter
20	20	2.8	14.4
25	25	3.5	18.0
32	32	4.4	23.3
40	40	5.5	29.0
50	50	6.9	36.2
63	63	8.6	45.6
75	75	10.3	54.4
90	90	12.3	65.4
110	110	15.1	79.8

Product Description

a. Non-conductive: Good insulation, assuring a safe system
b. Smooth surface : Small friction coefficient to ensure the cables go through smoothly
c. Fire resistance: Self-extinguishing, do not support combustion
d. Corrosion Resistance: Resistant to acids, bases and salts, assuring a lower maintenance cost and
a longer performance life
e. Impact strength: Resistant to compression and impact, suitable to be buried in concrete
f. Easy Installation: solvent cement and threading joining

Advantage
1. Sanitary, non-toxic, no heavy metal additives, directly apply to the water supply system.
2. Heat insulation and Saving Energy: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.
Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.
3. Light weight, high strength and high impact strength.
4. Lower Installation Costs: light weight and good hot-melt performance can reduce installation costs by as much as 50% over metal piping system.
5. Convenient installation, reliable, recycled, environmental protection and safe.
6. Corrosion Resistant: resist chemical matters or electron chemical corrosion.
7 High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
8.Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
9. Long service life: more than fifty years under the normal pressure and temperature.
Intended use
For interior hot and cold water distribution systems in buildings and floor & central heating systems, air ducts
PN 10 - cold water distribution and floor heating systems
PN 16 - higher pressure cold water distribution and DHW systems at lower pressures
PN 20 - hot water distribution systems, central heating

Application
1. Residential cool/hot water piping system.
2. Transport and discharge for industrial water and chemicals.
3. Piping system for purified water and drinking water.
4. Production line system of beverage and liquid medicine.
5. Solar heating and cooling equipment system.
6. Piping system for air compression.
7. Caliduct, floor and wall heating equipment.
8. Piping system for other industries and agriculture
