PPR Fiberglass Composite Pipe

PPR Fiberglass Composite Pipe Furring Resistance For Cold Hot Water Supply

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

PPR Fiberglass Composite Pipe Furring Resistance For Cold / Hot Water Supply

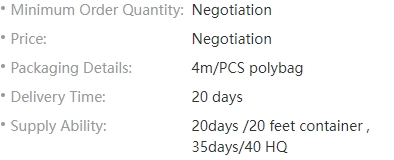

Payment & Shipping Terms

Description

Glass Fiber Tube ISO9001 DIN8077/8078 Color customization size 20-160

PPR Fiberglass Composite Pipe Furring Resistance For Cold / Hot Water Supply 0

PP-R Fiber Composite pipe

OEM Available

Material: PPR HYOSUNG R200P from Korea,

Standard: ISO 15874: DIN8077-8078

Production temperature: -40 - +95°C

Pressure Rating: PN10,PN12.5,PN16 ,PN20
Connection:socket fusion joint,electro fusion joint or transition joint

	PN 1.25MPa	PN 1.6MPa	PN 2.0MPa	PN 2.5MPa
Outer Diameter dn(mm)	Wall Thickness en(mm)	Wall Thickness en(mm)	Wall Thickness en(mm)	Wall Thickness en(mm)
20	2.0	2.3	2.8	3.4
25	2.3	2.8	3.5	4.2
32	3.0	3.6	4.4	5.4
40	3.7	4.5	5.5	6.7
50	4.6	5.6	6.9	8.4
63	5.8	7.1	8.7	10.5
75	6.9	8.4	10.3	12.5
90	8.2	10.1	12.3	15.0
110	10.0	12.3	15.1	18.3
160	14.6	17.9	21.7	26.6

Items		Index
		Pipe Material	Pipe Article
Density	G/cm³20℃	0.89-0.91
Heat Transmitting Index	W/m.k(20℃)	0.23-0.24
Thread Expand Index	Mm/m.k	0.14-0.16
Flip Thread Mode Mete	W/m²(20℃)	800
Extend Intendity	Mpa	More than 20
Minitication in Portrait	135℃, 2h%	Less than 2
Swing and Beat Impact Test	15J, 0℃, 2H (disrepair rate)%	Less than 10

Features:

1. The service life is so long(The PPR cold and hot water pipe life can over 50 years in the stated condition.)

2. High temperature resistance.(Under the stated pressure condition,the temperature is 0-90°for PPR,the service life is so long.)

3. Chemaical corrosion resistance,furring resistance,increase current.The chemistry of PPR can resist chemical ionization in water,stop furring,increase by 10% compared to plate zinc.

Specification:

1. Complete items:pipe,coupling,tee,elbow,cross.

2. Size(dia):20~160mm

3. Pressure grade:S5PN1.25 S4PN1.60 S3.2PN2.0 S2.5PN2.5

4. Colour: green, white,grey or according to customers request.

Applications:

1 ) Cold, hot water supply facilities for public buildings

2 ) Food, chemical, electronic industrial pipeline networks such as pipeline networks for transporting all kinds of corrosive liquid (such as acid, buck and deionized water )

3 ) Drinking water production system pipeline networks such as pure water and mineral water

4 ) Air conditioning facility pipeline

5 ) Compressed gas pipeline networks for industry

6 ) Pipeline network for swimming pool

7 ) Pipeline network for solar energy facility

8 ) Agriculture and garden production transporting system

We can supply products of different colors as per customer's request.
