S2.5 Grade PPR Fiberglass Composite Pipe High Pressure Resistant For Building Water Supply

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

S2.5 Grade PPR Fiberglass Composite Pipe High Pressure Resistant For Building Water Supply

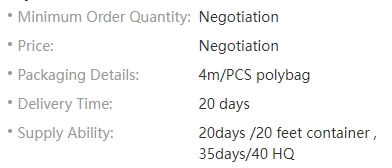

Payment & Shipping Terms

Description

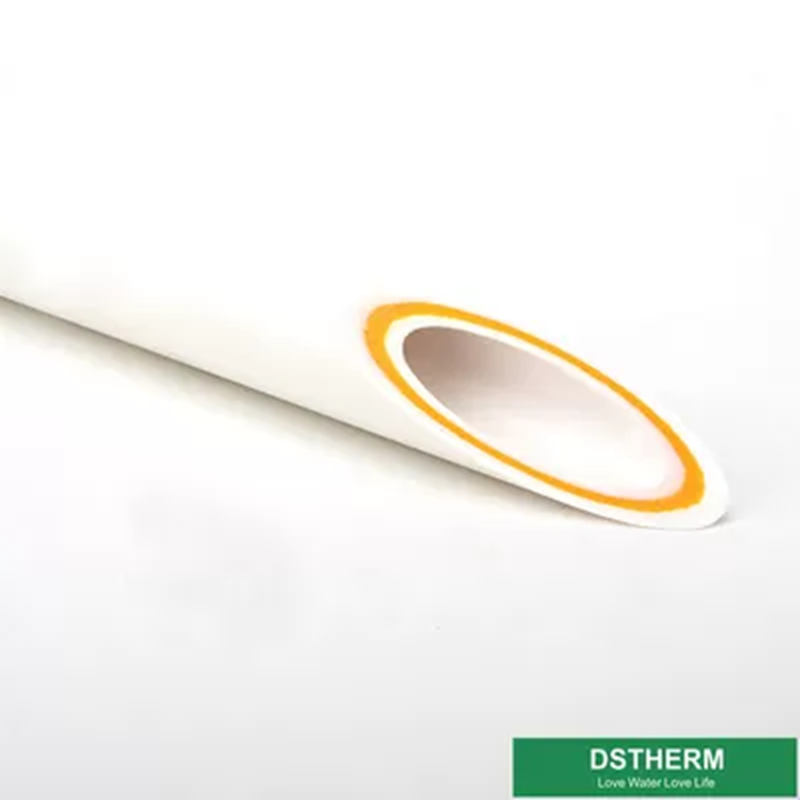

S2.5 Grade PPR Fiberglass Composite Pipe High Pressure Resistant For Building Water Supply 0

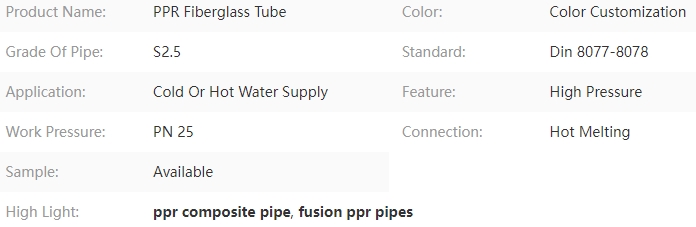

PPR Fiberglass Tube ISO9001 DIN8077/8078 Color customization size 20-160

PP-R Fiber Composite pipe

OEM Available

Material: PPR HYOSUNG R200P from Korea,

Standard: ISO 15874: DIN8077-8078

Production temperature: -40 - +95°C

Pressure Rating: PN10,PN12.5,PN16 ,PN20
Connection: socket fusion joint,electro fusion joint or transition joint

Product Name	pipe ppr glass fiber reinforced plastic fiber glass pipes for water supply
Material	fr-ppr plastic
Color	white,green
Standard	GB,DIN
Grade	fr-pp-rct
Used	hot and cold water supply

	PN 1.25MPa	PN 1.6MPa	PN 2.0MPa	PN 2.5MPa
Outer Diameter dn(mm)	Wall Thickness en(mm)	Wall Thickness en(mm)	Wall Thickness en(mm)	Wall Thickness en(mm)
20	2.0	2.3	2.8	3.4
25	2.3	2.8	3.5	4.2
32	3.0	3.6	4.4	5.4
40	3.7	4.5	5.5	6.7
50	4.6	5.6	6.9	8.4
63	5.8	7.1	8.7	10.5
75	6.9	8.4	10.3	12.5
90	8.2	10.1	12.3	15.0
110	10.0	12.3	15.1	18.3
160	14.6	17.9	21.7	26.6

Items		Index
		Pipe Material	Pipe Article
Density	G/cm³20℃	0.89-0.91
Heat Transmitting Index	W/m.k(20℃)	0.23-0.24
Thread Expand Index	Mm/m.k	0.14-0.16
Flip Thread Mode Mete	W/m²(20℃)	800
Extend Intendity	Mpa	More than 20
Minitication in Portrait	135℃, 2h%	Less than 2
Swing and Beat Impact Test	15J, 0℃, 2H (disrepair rate)%	Less than 10

Advantages:

High temperature resistance: the maximum sustained working temperature is up to 70°Cdegrees, the maximum transient temperature is up to 95°C

Heat preservation: low thermal conductivity results in preserving heat

Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium

Lower installation costs: light weight and easy installation can reduce installation costs

Higher flow capacity: smooth interior walls result in low pressure loss and high volume

Feature
1. Sanitary & non-toxic;
2. Corrosion resistant & not scaling;
3. High temperature resistant & high pressure resistant;
4. Heat preservation & energy efficient;
5. Light weight;
6. Elegant appearance;
7. Convenient & reliable installation;
8. Long service life: over 50 years

Applications:

1 ) Cold, hot water supply facilities for public buildings

2 ) Food, chemical, electronic industrial pipeline networks such as pipeline networks for transporting all kinds of corrosive liquid (such as acid, buck and deionized water )

3 ) Drinking water production system pipeline networks such as pure water and mineral water

4 ) Air conditioning facility pipeline

5 ) Compressed gas pipeline networks for industry

6 ) Pipeline network for swimming pool

7 ) Pipeline network for solar energy facility

8 ) Agriculture and garden production transporting system

We can supply products of different colors as per customer's request.

S2.5 Grade PPR Fiberglass Composite Pipe High Pressure Resistant For Building Water Supply 1
