90° Ppr Pipe Fittings Elbow Size 20 - 160mm No Heavy Metal Additives

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

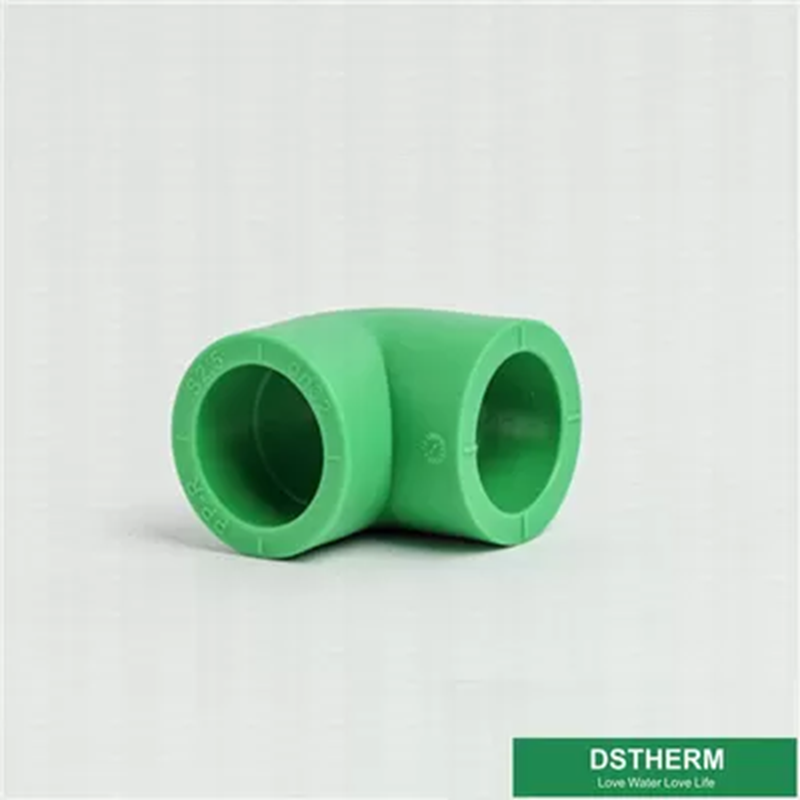

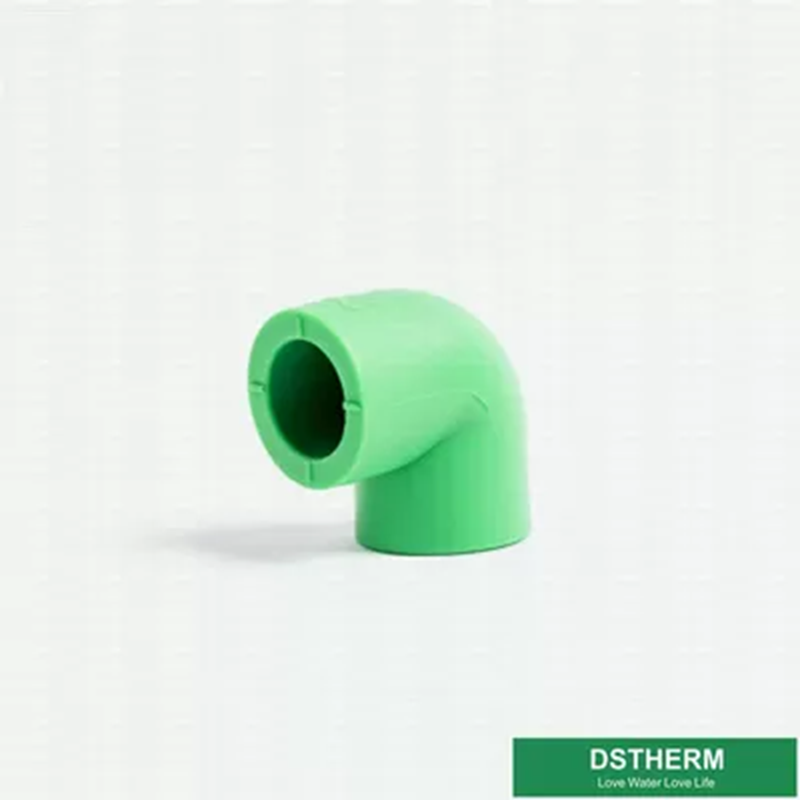

90° Ppr Pipe Fittings Elbow Size 20 - 160mm No Heavy Metal Additives

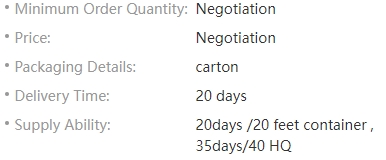

Payment & Shipping Terms

Description

90° Ppr Pipe Fittings Elbow Size 20 - 160mm No Heavy Metal Additives 0

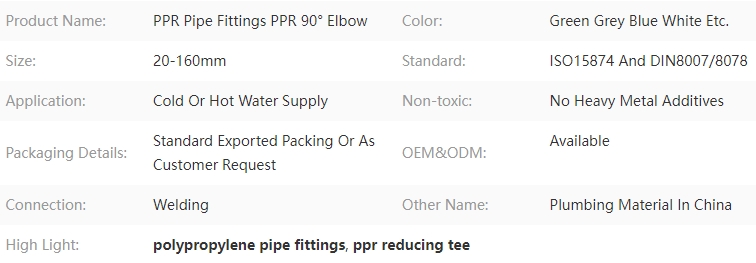

PPR Pipe Fittings PPR 90°Elbow DIN8077/8078 Colour OEM size 20-160mm CE

Color: Green White,Grey ,etc
Surface: Smooth
Pressure Rating: PN20
Size:20mm-160mm
OEM Available
Standard: ISO 15874: DIN8077-8078
Production temperature: -40 - +95°C
Certification: ISO9001

Applications:

1) Water supply systems: civil and industrial constructions, in residential buildings, hospitals,hotels,school and office buildings, ship, building

2) Drinking water systems & food industry pipe works

3) Central air conditioning system

4) Irrigating system for gardens and green houses

5) Public and sport facilities: swimming pools & stadiums

6) Rainwater utilization systems

1.Material :	PPR
2.Color:	White, Gray, Green, or as you required.
3.Size:	20-160mm
4.Logo:	OEM or customized
5.MOQ:	According
6.Samples Time:	(1)4-5days-If you want to customize your logo.
	(2)1day-For our existing samples for reference.
7.OEM Accepted	Yes
8.Certification available:	Yes
9.Packing Details:	Carton, standard export packing
10.Production Capacity:	5,000,000pcs Per month.
11.Payment Term:	(1) L/C,T/T,D/P

Permissible Working Pressure And Longevity

	Working pressure(bar)	Temperature ℃	Working year(H/Y)
Cold water	0 to10 transient	To 25	8760
Hot water	0 to10 transient	To 60	8710
Hot water	0 to10 transient	To 80	50

For Pootable Water Installations

Temperature	Service life	Safety-factor=1.5
		SDR 11	SDR 9	SDR7.4	SDR 6
		Nominal Pressere
		PN10	PN12.5	PN16	PN20
		Permissible Working Pressure
20℃	1	15.0	18.9	23.8	30.0
	10	13.7	17.3	21.7	27.2
	50	12.9	15.9	20.4	25.7
40℃	1	10.8	13.6	17.1	21.2
	10	9.2	12.4	16.0	20.2
	50	9.2	11.5	14.5	18.8
50℃	1	9.2	10.8	14.5	18.3
	10	8.2	10.5	13.1	16.5
	50	7.7	9.8	12.2	15.4
60℃	1	/	/	12.2	15.4
	10	/	/	11.0	13.8
	50	/	/	10.1	12.7
75℃	1	/	/	9.9	12.3
	10	/	/	7.5	9.3
	25	/	/	6.1	7.5

SDR=Standard Dimension Ratio(diameter/wall thickness)
SDR=d/s(S=Pope series index from ISO 4065)

Feature
1. Sanitary & non-toxic;
2. Corrosion resistant & not scaling;
3. High temperature resistant & high pressure resistant;
4. Heat preservation & energy efficient;
5. Light weight;
6. Elegant appearance;
7. Convenient & reliable installation;
8. Long service life: over 50 years
