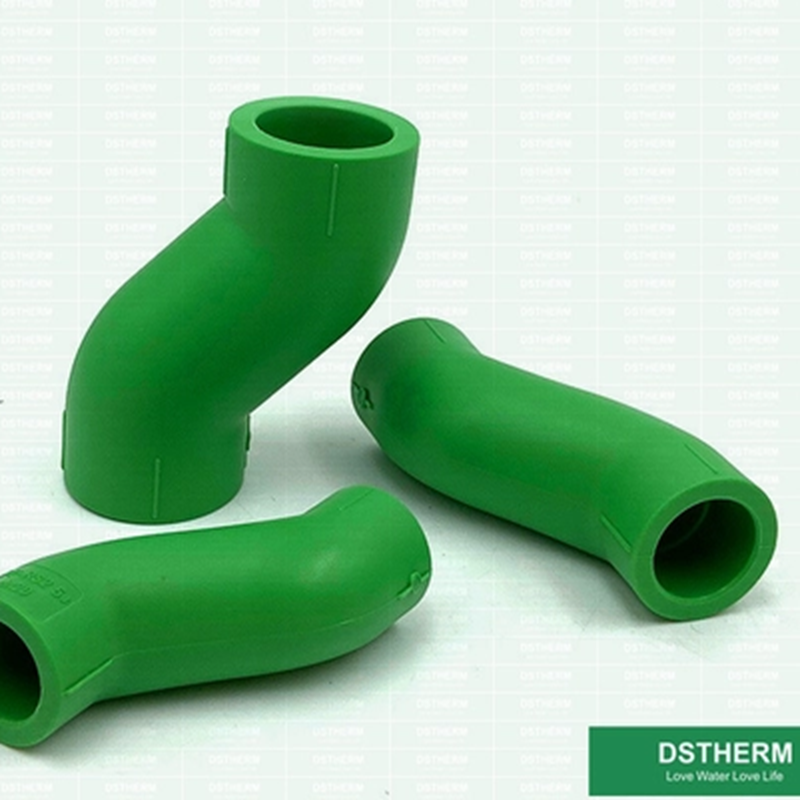

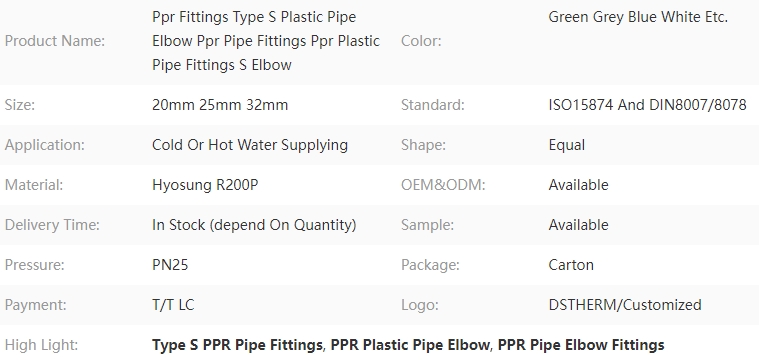

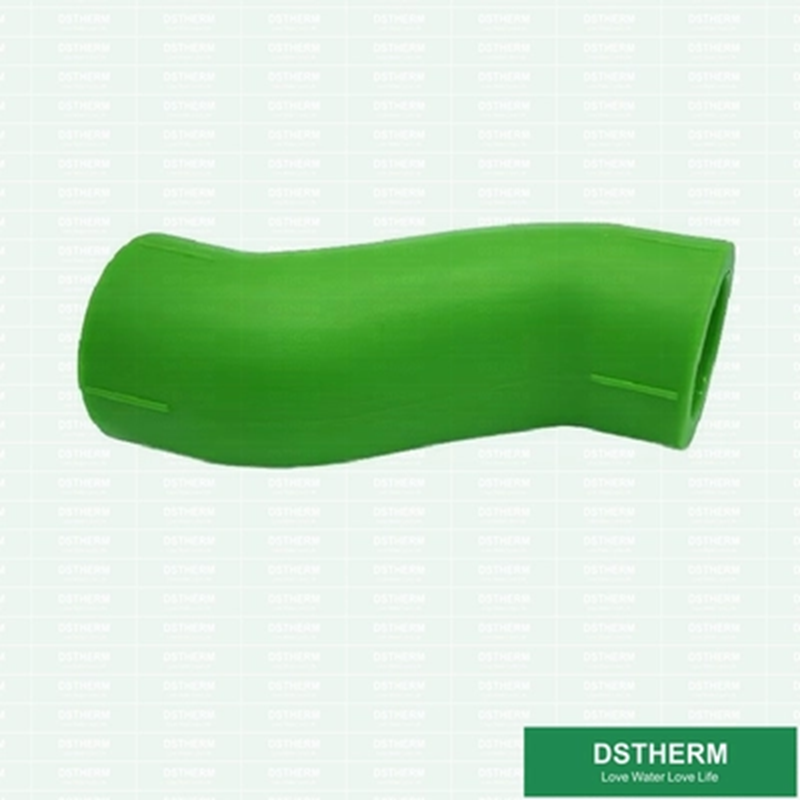

Ppr Fittings Type S Plastic Pipe Elbow Ppr Pipe Fittings Ppr Plastic Pipe Fittings S Elbow

PPR Pipe Fittings Cross PPR Socket ISO9001 DIN8077/8078 Colour OEM size 20-160mm

Material: PPR HYOSUNG R200P from Korea , Borealis A140E

Technics: Injection

Place of Origin: Shanghai, China

Connection: Welding

Shape: Equal,

Name: PPR Coupling

Color: Green White,Grey ,etc

Surface: Smooth

Pressure Rating: 2.0MPa

Size:20mm25mm 32mm
OEM Available

Material: PPR HYOSUNG R200P from Korea,

Standard: ISO 15874: 2003, DIN8077-8078

Production temperature: -40 - +95°C

Certification: ISO9001

Descriptions of coupling

Name	pp-r pipe fittings PPR Coupling PPR Socket
Color	green, white, gray, blue
Connection	socket fusion joint, electro fusion joint or transition joint
Material	polypropylene
Pressure Rating	1.0Mpa,1.25MPa, 1.6MPa, 2.0MPa ,2.5MPa
Service life	50 years
Size	20mm 25mm 32mm

Permissible Working Pressure And Longevity

	Working pressure(bar)	Temperature ℃	Working year(H/Y)
Cold water	0 to10 transient	To 25	8760
Hot water	0 to10 transient	To 60	8710
		To 80	50

For Water Installations

Temperature	Service life	Safety-factor=1.5
		SDR 11	SDR 9	SDR7.4	SDR 6
		Nominal Pressere
		PN10	PN12.5	PN16	PN20
		Permissible Working Pressure
20℃	1	15.0	18.9	23.8	30.0
	10	13.7	17.3	21.7	27.2
	50	12.9	15.9	20.4	25.7
40℃	1	10.8	13.6	17.1	21.2
	10	9.2	12.4	16.0	20.2
	50	9.2	11.5	14.5	18.8
50℃	1	9.2	10.8	14.5	18.3
	10	8.2	10.5	13.1	16.5
	50	7.7	9.8	12.2	15.4
60℃	1	/	/	12.2	15.4
	10	/	/	11.0	13.8
	50	/	/	10.1	12.7
75℃	1	/	/	9.9	12.3
	10	/	/	7.5	9.3
	25	/	/	6.1	7.5

SDR=Standard Dimension Ratio(diameter/wall thickness)
SDR=d/s(S=Pope series index from ISO 4065)

Feature

1. Sanitary & non-toxic;
2. Corrosion resistant & not scaling;
3. High temperature resistant & high pressure resistant;
4. Heat preservation & energy efficient;
5. Light weight;
6. Elegant appearance;
7. Convenient & reliable installation;
8. Long service life: over 50 years

Application of ppr pipe and fittings

1. The civil-use and industrial-use construction inner cold/warm water and water-giving systems;

2. Public sites, (such as schools, hospitals), gyms(such as swimming pools, playground);

3. Drinking water systems and food industry management system'

4. Garden and warm rooms irrigating systems;

5. Traditional heat-giving/ heat-absorbing systems;

6. Central air-conditioner system;

7. Chemical flowing transferring pipe system.

Our advantages

1). 20 Years' Experience in production

2). accept OEM Order

3). ISO9001 approved

4). We use All New raw material in products

5). Sufficient products with complete specifications for your choice

Extra Introduction: Aluminum Ppr Pipe, Ppr Aluminum Composite Pipe,Ppr Aluminum Stability Pipe
Ppr Pipe Introduction: Polypropylene Random plastic type C pipe.

1. What is Ppr Pipe? Ppr Pipe means: Polypropylene Random Copolymer plastic type C pipe.
PPR pipe is type c and a straight and rigid cylindrical pipe, made from Polypropylene Random Copolymer plastic raw mateiral, produced through a continuous extrusion process. They are commonly offered in light green, dark green, blue color, orange color, white color, etc... and in outer diameter sizes ranging from 20mm to 315mm making the pipe walls far thicker according to ISO15874 and DIN8077/8088

2. Ppr Pipe Standard:

ISO15874

DIN8077/8078

3. Color: According to different countries and markets, different customers have different request on the colors, so we have customized Colors, such as Green Color, White Color,bulue color, orange color, dark green clor, etc...

4. Package: DSTHERM Brand Package/ We also accept customer customized brand package with custome logo and descriptions.
UV Ppr Aluminum Composite Pipe 2.0mm Thickness For Public Buildings Water Supplying

What is Ppr Aluminum Composite Pipe? Aluminum-plastic composite PPR pipe is a composite pipe of five layers, inside and outside layers of which are made of PP-R, tightly bonded with melt adhesive to the mid-layer of aluminum core which is longitudinally welded in an overlapping way.

Aluminum Ppr Pipe Aluminum Foiled Ppr Pipe PPR Aluminum Composite Stable Pipe Corrosion Resistance Ppr Aluminum Pipe

Product: Ppr Aluminum Composite pipe
Material: PPR+Aluminum
Size: 20mm 25mm 32mm 40mm 50mm 63mm 75mm 90mm 110mm
Certificate:ISO9001
Standard: ISO15874; DIN8077/8078
Working place: -40°-95°

Ppr Aluminum Composite pipe

Ppr Aluminum Composite pipe Series SDR9/S4/PN16
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter	Overall Wall Thickness	Overall Outer Diameter
20mm	20.0	2.3	15.4	3.4	21.9
25mm	25.0	2.8	19.4	4.0	27.1
32mm	32.0	3.6	24.8	4.8	34.1
40mm	40.0	4.5	31.0	5.8	42.3
50mm	50.0	5.6	38.8	6.9	52.3
63mm	63.0	7.1	48.8	8.4	65.3
75mm	75.0	8.4	58.3	9.6	77.8
90mm	90.0	10.1	70.0	11.5	93.3
110mm	110.0	13.7	85.8	13.7	114.0

Ppr Aluminum Composite Pipe

Ppr Perforated Aluminum Pipe Ppr Composite Aluminum Pipe PN16 PN20 4m Length Aluminum Foiled Pipe
What is Ppr Perforated Aluminum Pipe? Perforated Aluminum-plastic composite PPR pipe is a composite pipe of five layers, inside and outside layers of which are made of PP-R, tightly bonded with melt adhesive to the mid-layer of perforated aluminum core which is longitudinally welded in an overlapping way.

Ppr Composite Aluminum pipe with ppr aluminum-plastic ISO9001 DIN8077/8078 Color customization 20mm-160mm

PP-R Perforated Aluminum Composite pipe

Aluminum Ppr Pipe, Ppr Aluminum Composite Pipe,Ppr Aluminum Stability Pipe

Series SDR7.4/S3.2/PN20
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter	Overall Wall Thickness	Overall Outer Diameter
20mm	20.0	2.8	14.4	3.9	21.9
25mm	25.0	3.5	18.0	4.7	27.1
32mm	32.0	4.5	23.0	5.7	34.1
40mm	40.0	5.6	28.8	6.8	42.3
50mm	50.0	6.9	36.2	8.2	52.3
63mm	63.0	8.6	45.6	10.0	65.3
75mm	75.0	10.3	54.4	11.5	77.8
90mm	90.0	12.3	65.4	13.7	93.3
110mm	110.0	15.1	79.9	16.6	114.0

Aluminum Ppr Pipe, Ppr Aluminum Composite Pipe,Ppr Aluminum Stability Pipe

Series SDR6/S2.5/PN25
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter	Overall Wall Thickness	Overall Outer Diameter
20mm	20.0	3.4	13.2	4.5	21.9
25mm	25.0	4.2	16.6	5.4	27.1
32mm	32.0	5.4	21.2	6.7	34.1
40mm	40.0	6.7	26.6	8.0	42.3
50mm	50.0	8.3	33.2	9.6	52.3
63mm	63.0	10.5	42.0	11.8	65.3
75mm	75.0	12.5	49.8	13.8	77.8
90mm	90.0	15.0	59.8	16.4	93.3
110mm	110.0	18.3	73.2	19.8	114.0

Aluminum Ppr Pipe, Ppr Aluminum Composite Pipe,Ppr Aluminum Stability Pipe

Applications:

1 ) Cold, hot water supply facilities for public buildings

2 ) Food, chemical, electronic industrial pipeline networks such as pipeline networks for transporting all kinds of corrosive liquid (such as acid, buck and deionized water )

3 ) Drinking water production system pipeline networks such as pure water and mineral water

4 ) Air conditioning facility pipeline

5 ) Compressed gas pipeline networks for industry

6 ) Pipeline network for swimming pool

7 ) Pipeline network for solar energy facility

8 ) Agriculture and garden production transporting system

We can supply products of different colors as per customer's request
Aluminum Ppr Pipe, Ppr Aluminum Composite Pipe,Ppr Aluminum Stability Pipe

Aluminum Ppr Pipe, Ppr Aluminum Composite Pipe,Ppr Aluminum Stability Pipe

• Material: polypropylene and Al

• Sizes: 20 to110 mm

• PN Grade: 1.6MPa, 2.0MPa, 2.5MPa

• Colors: gray or white marked with blue or red lines

• Connection: socket fusion joint

• Standard: CJ/T 210-2005, BS6920

• Certification: ISO9001, ISO14001, OHSAS18001

• Applications: cold or hot water supply, heating system including flooring heating, wall heating and radiating system, central air conditioning system, industrial liquids transportation

• Non-toxic: no heavy metal additives, not be covered with dirt, not be contaminated by bacterium

• Corrosion Resistant: resist chemical matters or electron chemical corrosion
