Multi Color Ppr Pipe Fittings , Injection Molding 45° Elbow Eco Friendly

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

Multi Color Ppr Pipe Fittings , Injection Molding 45° Elbow Eco Friendly

Payment & Shipping Terms

Description

Multi Color Ppr Pipe Fittings , Injection Molding 45° Elbow Eco Friendly 0

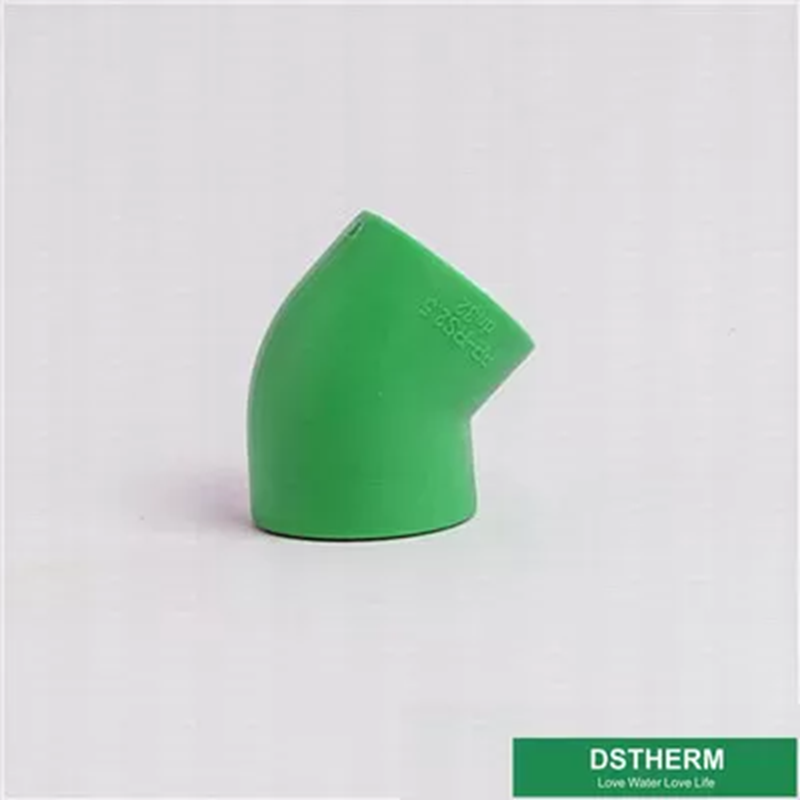

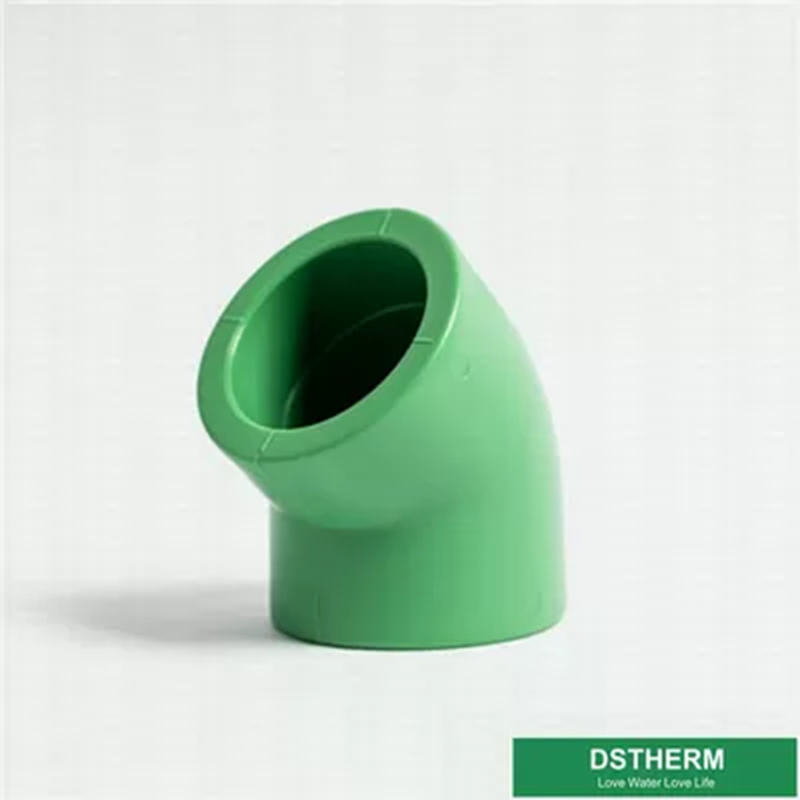

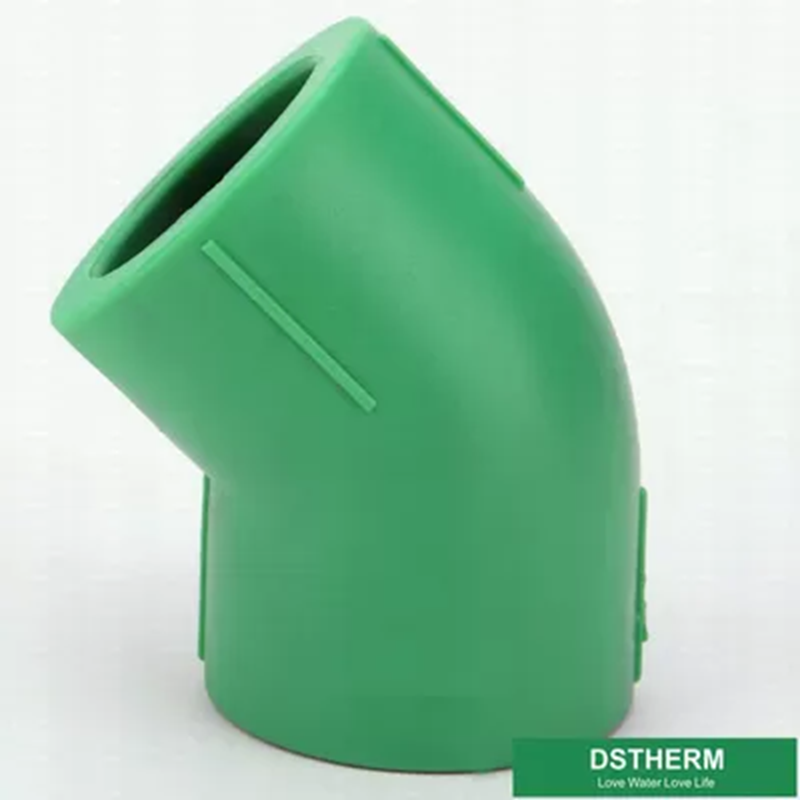

PPR Pipe Fittings PPR 45°Elbow ISO9001 DIN8077/8078 Colour OEM size 20-160mm

Material: PPR HYOSUNG R200P from Korea , Borealis A140E
Technics: Injection
Place of Origin: Shanghai, China
Connection: Welding
Shape: Equal,
Name: PPR 45°Elbow
Color: Green White, Grey ,etc
Surface: Smooth
Pressure Rating: PN20
Size:20mm-160mm
OEM Available
Standard: ISO 15874: DIN8077-8078
Production temperature: -40 - +95°C
Certification: ISO9001

Permissible Working Pressure And Longevity

	Working pressure(bar)	Temperature ℃	Working year(H/Y)
Cold water	0 to10 transient	To 25	8760
Hot water	0 to10 transient	To 60	8710
Hot water	0 to10 transient	To 80	50

Features:

1) Pressure Rating: 1.0Mpa,1.25MPa, 1.6MPa, 2.0MPa ,2.5MPa

2) Colors: Green, White, Grey, Red, Blue, Yellow and other color on request

3) Certification: ISO9001, ISO14001,CE, ROHS, SGS and so on

4) Standard: DIN 8077/8078

5) Applications: Cold or hot water supply

Application of ppr pipe and fittings

1. The civil-use and industrial-use construction inner cold/warm water and water-giving systems;

2. Public sites, (such as schools, hospitals), gyms(such as swimming pools, playground);

3. Drinking water systems and food industry management system'

4. Garden and warm rooms irrigating systems;

5. Traditional heat-giving/ heat-absorbing systems;

6. Central air-conditioner system;

7. Chemical flowing transferring pipe system.

1.Material :	PPR
2.Color:	White, Gray, Green, or as you required.
3.Size:	20-160mm
4.Logo:	Seefine or customized
5.MOQ:	500pcs
6.Samples Time:	(1)4-5days-If you want to customize your logo.
	(2)1day-For our existing samples for reference.
7.OEM Accepted	Yes
8.Certification available:	Yes
9.Packing Details:	Standard export packing
10.Production Capacity:	5,000,000pcs Per month.
11.Payment Term:	(1) L/C,T/T,D/P

Product advantages
· Long durability due to the high resistance to aggressive elements, which gives the system extremely long service life of 50 years and more.
· Incomparable smooth and porosity-free internal surface of both pipes and fittings. Which results in a very low pressure loss and absence of incrustation (reduction of section due to the limestone and scaling). Nontoxic and Physiologically harmless material.
· Resistance to bacteriological attack thus enabling safe potable water transfers.
· Resistance to wide range of chemicals and so corrosion is avoided in service lines.
· Good impact strength so as to be used in all environments and around buildings.
· Heat preservation and energy saving abilities. The heat conductivity of PP-R pipes are much lesser than metals and hence offer significantly high levels of heat preservation for transported fluids.
· High acoustic insulation against fluid noise. The fluid flow and hydraulic shocks with in the building create noise which can be very well avoided by the noise absorption ability of PP-R materials.
· Lighter weight compared to the metallic piping systems (1/9 of the steel specific gravity).
· Convenient and reliable installation methods. The PP-R pipes can even be installed in
suspended form under ceiling without problem of flexion.
