PPR Pipe Fittings

Lightweight Ppr Pipe Accessories Green Color DIN8007 8078 Fittings End Cap

Lightweight Ppr Pipe Accessories Green Color DIN8007 8078 Fittings End Cap

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

Lightweight Ppr Pipe Accessories Green Color DIN8007 / 8078 Fittings End Cap

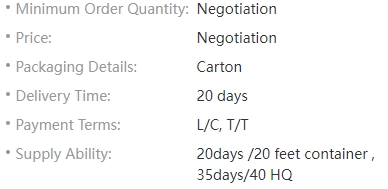

Payment & Shipping Terms

Description

Lightweight Ppr Pipe Accessories Green Color DIN8007 / 8078 Fittings End Cap 0

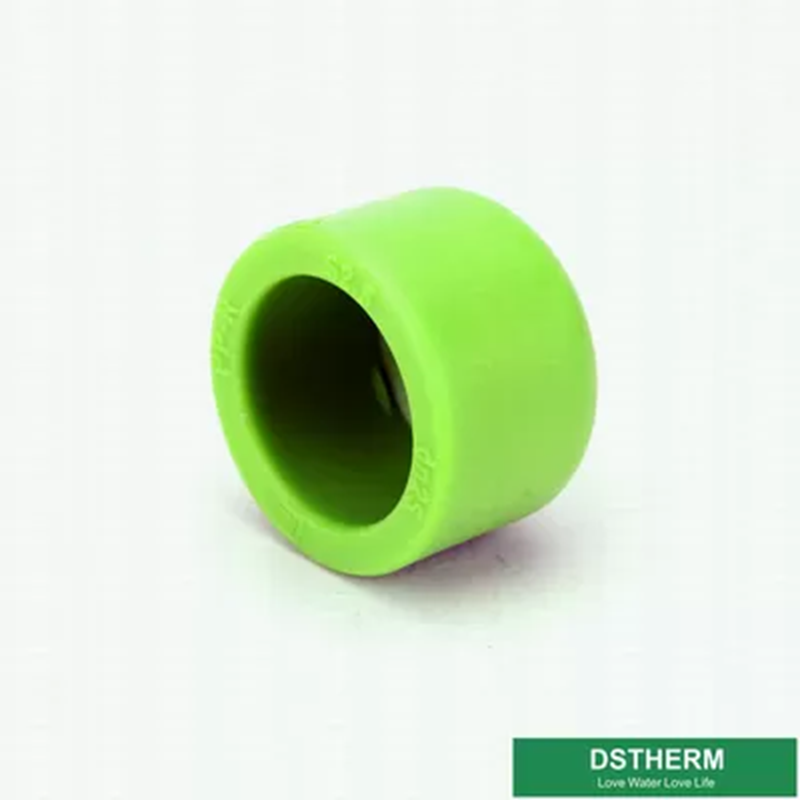

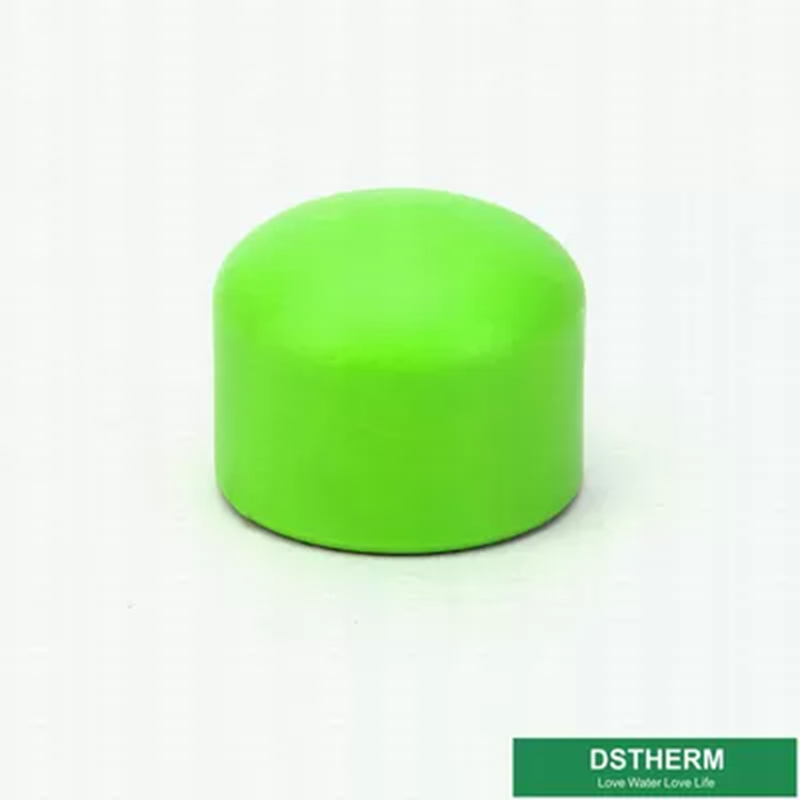

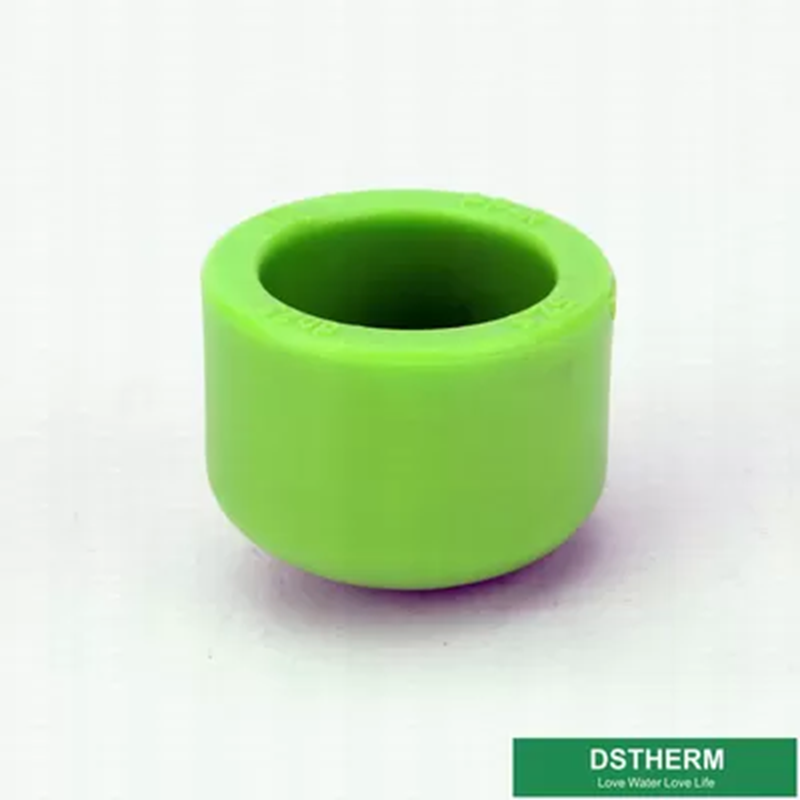

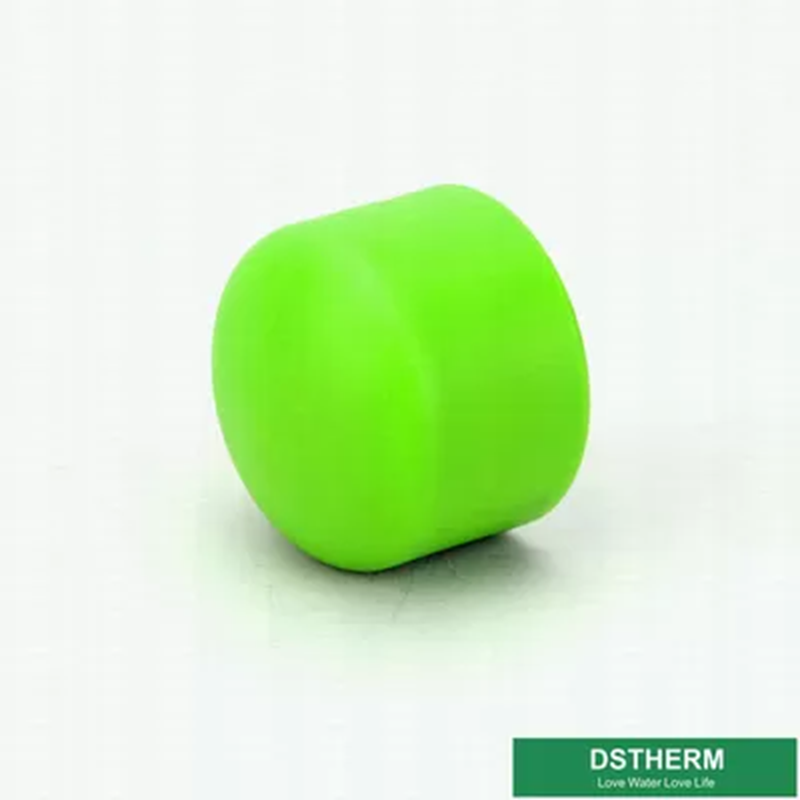

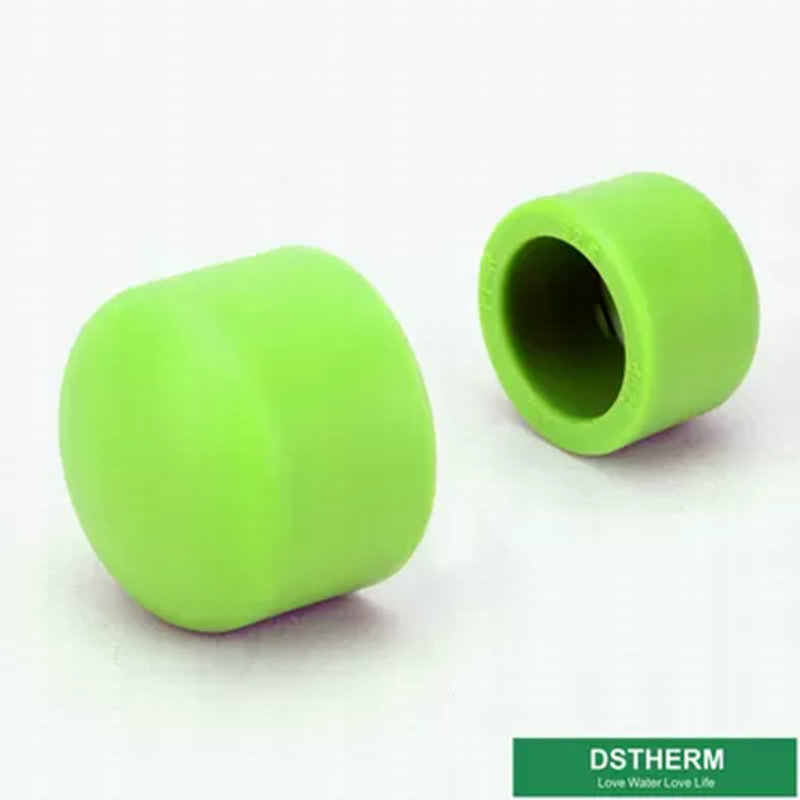

DSTHERM Green PPR Pipe Fittings End Cap Size 20-160mm Lightweight DIN8007/8078

Advantage:

1) Healthy, bacteriological neutral, conforming to drinking water standards
2) Resistant to high temperatures, good impact strength

3) Convenient and reliable installation, low construction expenses
4) Excellent heat-insulation property from minimum thermal conductivity
5) Lightweight, convenient to transport and handle, good for labor-saving
6) Smooth inner walls reduce pressure loss and increase flow speed.
7) Sound insulation (reduced by 40% compared to galvanized steel pipes)
8) Light colors and excellent design ensure suitability for both exposed and hidden installation
9) Recyclable, environment-friendly, accords with GBM standards

Applications
> Distribution for cool and hot water;
> Duct for drinkable water system;
> Pipes for kinds of high-temperature and low-temperature heating system;
> Pipes for heating and coolling settings in solar energy system;
> Connecting pipe for air conditioners.

Features:

1. Hygienic, non-toxic: the product, green building materials, can be used for the piping system of pure drinking water.
2. Polypropylene-random (PP-R) water-supplying pipes and fittings from 20 to 160mm
3. Colors: Green
4. Long service life: under the prescriptive condition, the piping system can be used for more than 50 years.
5. Brass inserts (welding die) especially for PP-R from 20mm to 63mm available
6. PP-R pipe system related accessories available, including tools, clamps, and welding machines

1.High Temperature Resistance: the maximum sustained working temperature is up to 70 °C,the maximum transient temperature is up to 95°C
2.Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
3. Corrosion Resistant: resist chemical matters or electron chemical corrosion
4. Lower Installation Costs: light weight and ease of installation can reduce installation costs
5.Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume
6. Long Life: more than 50 years under normal conditions more than 50 years under normal conditions
7. Recycled and Environment-friendly

Temperature	Service life	Safety-factor=1.5
		SDR 11	SDR 9	SDR7.4	SDR 6
		Nominal Pressere
		PN10	PN12.5	PN16	PN20
		Permissible Working Pressure
20℃	1	15.0	18.9	23.8	30.0
	10	13.7	17.3	21.7	27.2
	50	12.9	15.9	20.4	25.7
40℃	1	10.8	13.6	17.1	21.2
	10	9.2	12.4	16.0	20.2
	50	9.2	11.5	14.5	18.8
50℃	1	9.2	10.8	14.5	18.3
	10	8.2	10.5	13.1	16.5
	50	7.7	9.8	12.2	15.4
60℃	1	/	/	12.2	15.4
	10	/	/	11.0	13.8
	50	/	/	10.1	12.7
75℃	1	/	/	9.9	12.3
	10	/	/	7.5	9.3
	25	/	/	6.1	7.5

Advantages
1) Lower total installed cost – Lightweight product is easier and faster to handle and install and less heavy equipment is required to lift and position pipe. This can result in reduced installation costs.
2) Easy to handle –PP and PP-R are lightweight products making handling and positioning pipe fittings easier and safer. Less heavy equipment is needed to unload, handle product on site and position into trenches.
3) Optimum hydraulic performance – PP-R’s smooth inner skin is resistant to build up and allows optimum hydraulic flow.
4) Chemical resistance – PP-R pipe fittings are resistant to corrosion by aggressive and saline soils and substances typically found in sewage effluent, including most industrial discharges.
5) Sensitive to the environment – The material-efficient production reduces the use of raw materials. PP and PP-R pipe fittings are long life products.
6) Flexibile – PP and PP-R are flexible pipe fittings which have the ability to cope with soil movement and external loading without cracking.
