PPR Aluminum Pipe
Industrial Aluminum Plastic Composite Pipe Plastic Composite Pipe High Strength
- Place of Origin:Zhejiang China
- Brand Name:DSTHERM
- Certification:ISO9001
- Model Number:20-160mm
- Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
Industrial Aluminum Plastic Composite Pipe Plastic Composite Pipe High Strength

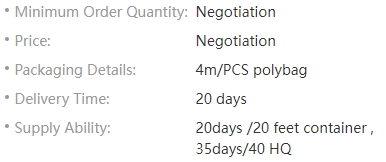

Payment & Shipping Terms

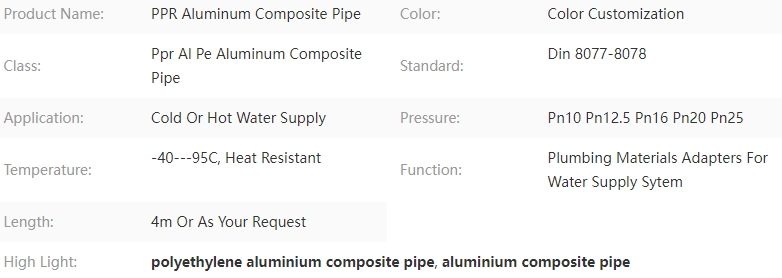

PPR aluminum composite pipe ISO9001 Material Polypropylene Color customization 20-160mm

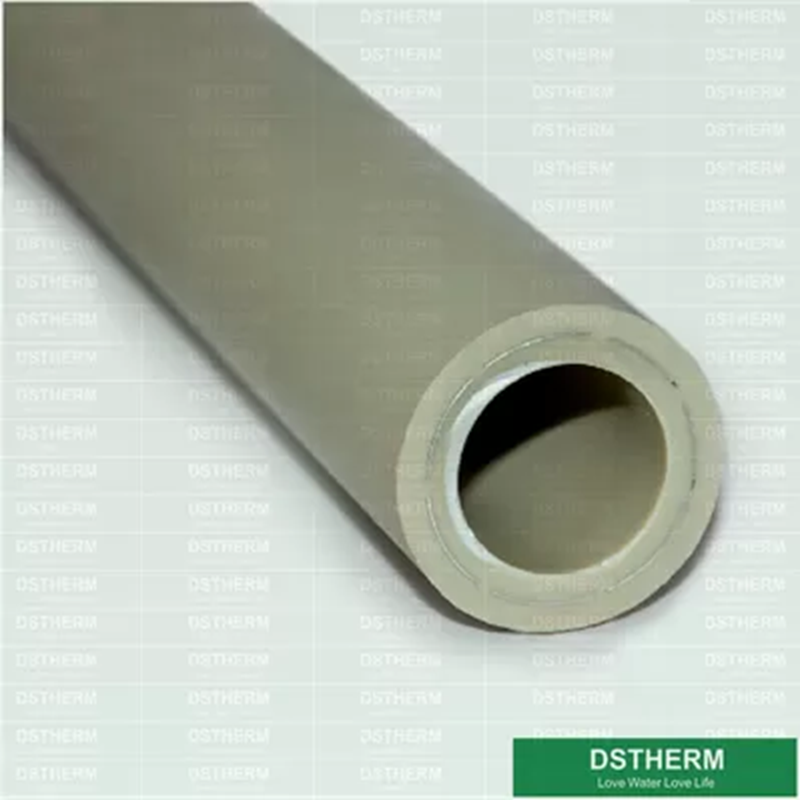

Product: PP-R Aluminum Composite pipe
Material: 100% PPR
Size: 16-160mm
Certificate:ISO9001
Standard: ISO15874; DIN8077/8078
Working place: -40°-95°
| Series SDR9/S4/PN16 | |||||
|

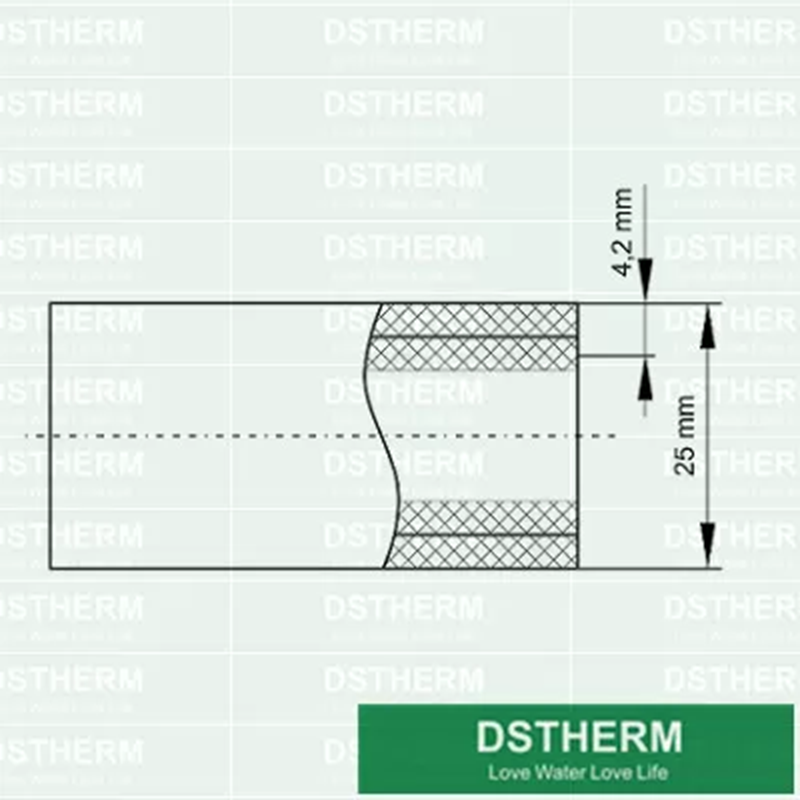

Nominal Outer Diameter |
Diameter | Wall Thickness | Inner Diameter |
Overall Wall Thickness |
Overall Outer Diameter |
| 20mm | 20.0 | 2.3 | 15.4 | 3.4 | 21.9 |
| 25mm | 25.0 | 2.8 | 19.4 | 4.0 | 27.1 |
| 32mm | 32.0 | 3.6 | 24.8 | 4.8 | 34.1 |
| 40mm | 40.0 | 4.5 | 31.0 | 5.8 | 42.3 |
| 50mm | 50.0 | 5.6 | 38.8 | 6.9 | 52.3 |
| 63mm | 63.0 | 7.1 | 48.8 | 8.4 | 65.3 |
| 75mm | 75.0 | 8.4 | 58.3 | 9.6 | 77.8 |
| 90mm | 90.0 | 10.1 | 70.0 | 11.5 | 93.3 |
| 110mm | 110.0 | 13.7 | 85.8 | 13.7 | 114.0 |
| Series SDR7.4/S3.2/PN20 | |||||
|
Nominal Outer Diameter |
Diameter | Wall Thickness | Inner Diameter |
Overall Wall Thickness |
Overall Outer Diameter |
| 20mm | 20.0 | 2.8 | 14.4 | 3.9 | 21.9 |
| 25mm | 25.0 | 3.5 | 18.0 | 4.7 | 27.1 |
| 32mm | 32.0 | 4.5 | 23.0 | 5.7 | 34.1 |
| 40mm | 40.0 | 5.6 | 28.8 | 6.8 | 42.3 |
| 50mm | 50.0 | 6.9 | 36.2 | 8.2 | 52.3 |
| 63mm | 63.0 | 8.6 | 45.6 | 10.0 | 65.3 |
| 75mm | 75.0 | 10.3 | 54.4 | 11.5 | 77.8 |
| 90mm | 90.0 | 12.3 | 65.4 | 13.7 | 93.3 |
| 110mm | 110.0 | 15.1 | 79.9 | 16.6 | 114.0 |
| Series SDR6/S2.5/PN25 | |||||
|
Nominal Outer Diameter |
Diameter | Wall Thickness | Inner Diameter |
Overall Wall Thickness |
Overall Outer Diameter |
| 20mm | 20.0 | 3.4 | 13.2 | 4.5 | 21.9 |
| 25mm | 25.0 | 4.2 | 16.6 | 5.4 | 27.1 |
| 32mm | 32.0 | 5.4 | 21.2 | 6.7 | 34.1 |
| 40mm | 40.0 | 6.7 | 26.6 | 8.0 | 42.3 |
| 50mm | 50.0 | 8.3 | 33.2 | 9.6 | 52.3 |
| 63mm | 63.0 | 10.5 | 42.0 | 11.8 | 65.3 |
| 75mm | 75.0 | 12.5 | 49.8 | 13.8 | 77.8 |
| 90mm | 90.0 | 15.0 | 59.8 | 16.4 | 93.3 |
| 110mm | 110.0 | 18.3 | 73.2 | 19.8 | 114.0 |
Applications
1. Cold and hot water supply
2. Heating system including flooring heating, wall
3. Heating and radiant system
4. Central air conditioning system
5. Industrial liquids transportation
Advantages
1. Light weight, convenient to transport and handle
2. High strength
3. Less resistance
4. Corrosion resistance
5. No pipe furring
6. Sound insulation
7. Easy to install
8. Long lifespan
9. Low cost
10. Long usage life of at least 50 years
Features:

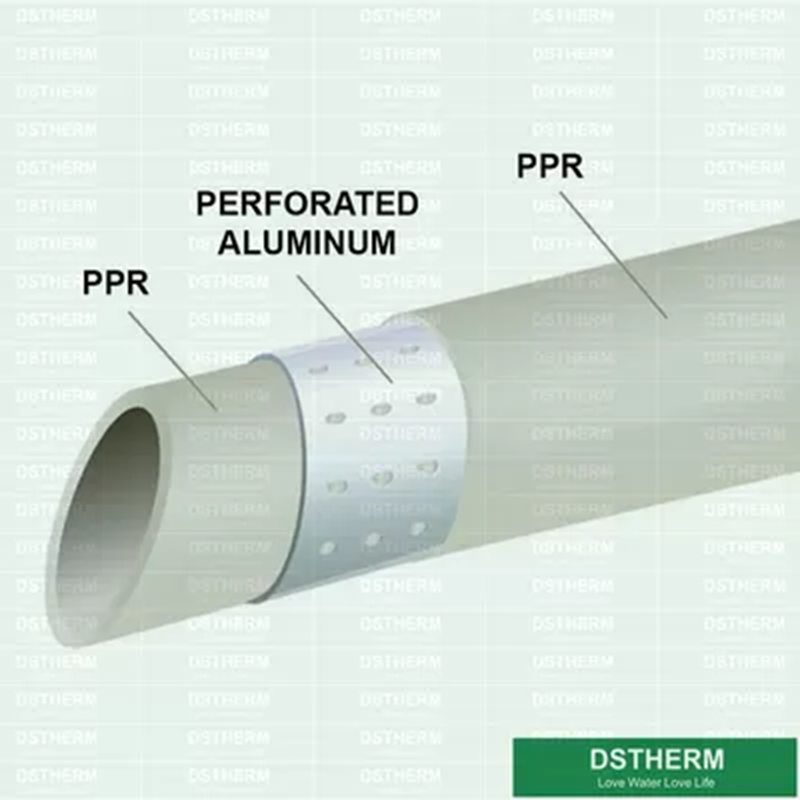

•Material: PPR--Random Polypropylene and aluminum
•Sizes: 20mm to 110mm
•Colors: light grey, white , or other colors on request
•Connection: socket fusion joint, electro fusion joint or transition joint
•Standard: CJ/T210-2005
•Factory Certification: ISO9001, ISO14001, BV
•Applications: Cold or hot water supply, heating system including flooring heating, wall heating and radiating system, Central air conditioning system, industrial liquids transportation
