Equal / Reducing Shape Polypropylene Pipe Fittings Din 8077 / 8078 20mm - 160mm

Equal / Reducing Shape Polypropylene Pipe Fittings Din 8077 / 8078 20mm - 160mm

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

Equal / Reducing Shape Polypropylene Pipe Fittings Din 8077 / 8078 20mm - 160mm

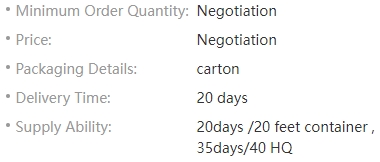

Payment & Shipping Terms

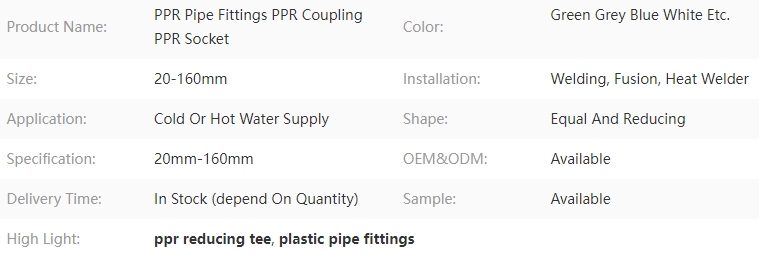

Description

Equal / Reducing Shape Polypropylene Pipe Fittings Din 8077 / 8078 20mm - 160mm 0

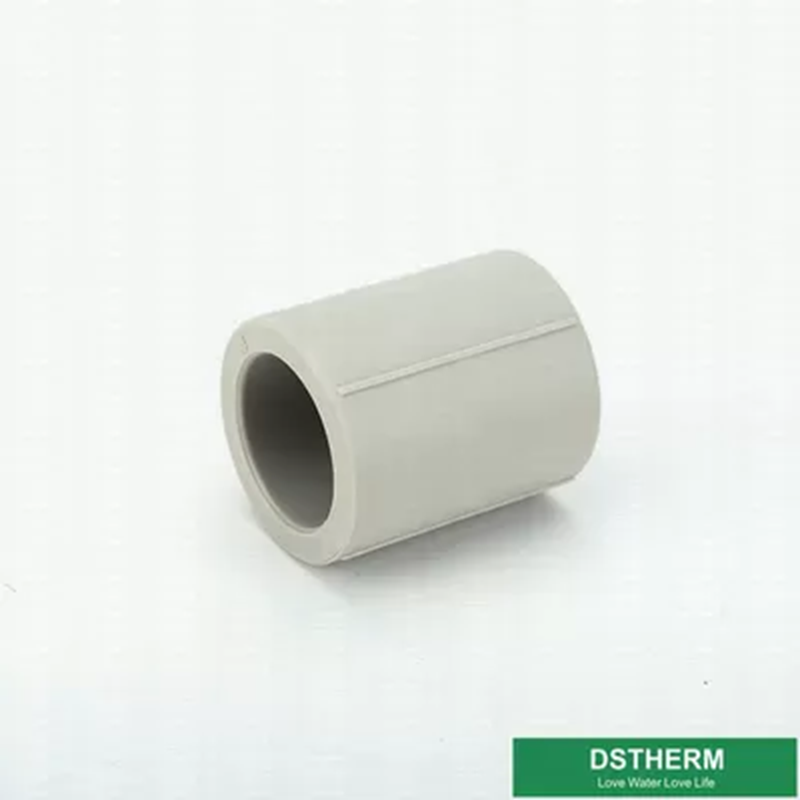

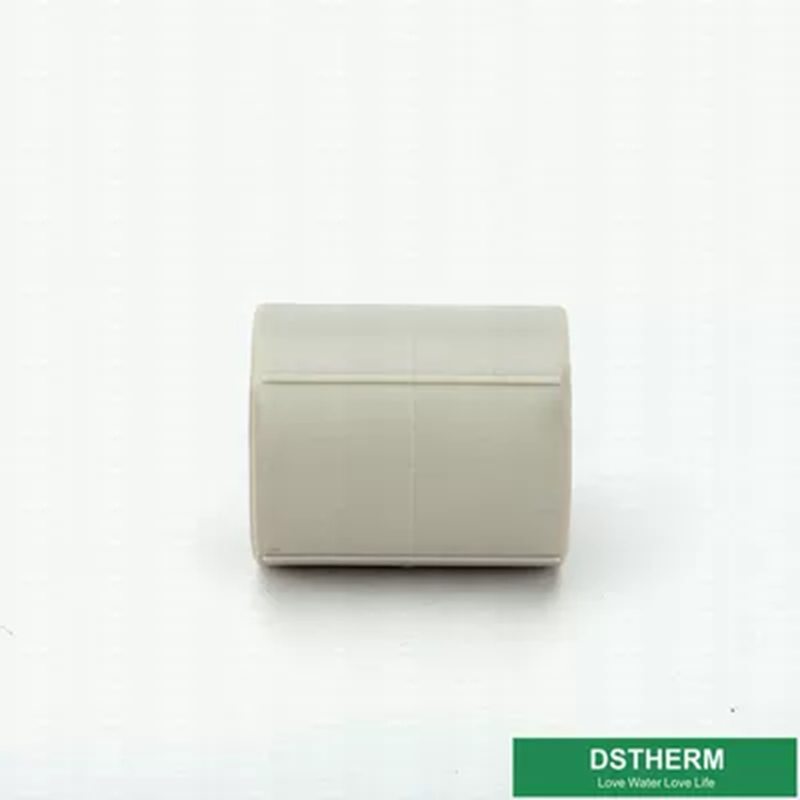

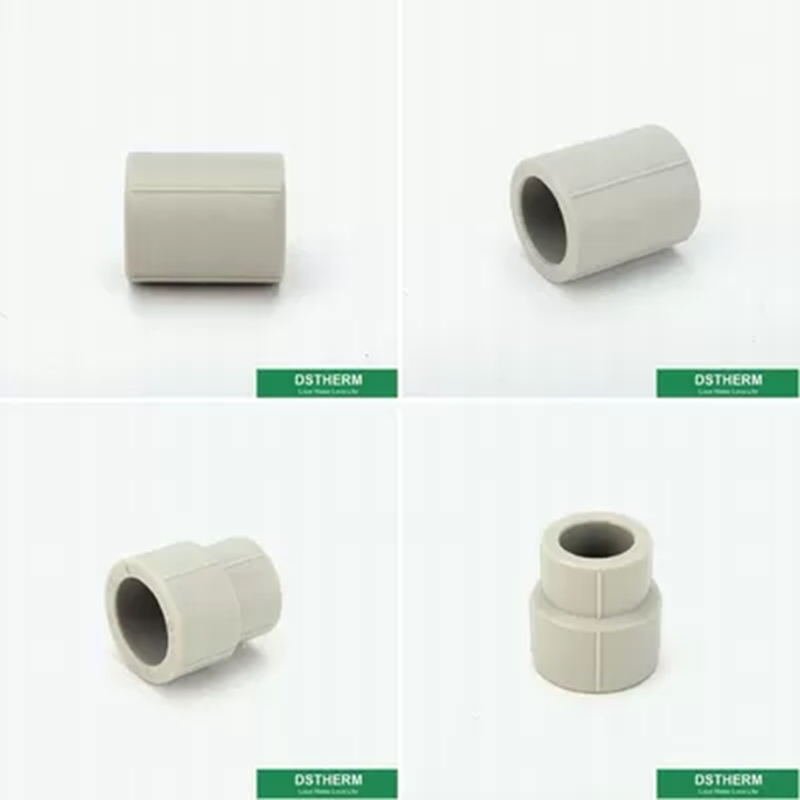

Equal / Reducing Shape Ppr Pipe Socket Din 8077 / 8078 With Customized Color ISO CE

Material: PPR HYOSUNG R200P from Korea , Borealis A140E

Technics: Injection

Place of Origin: Shanghai, China

Connection: Welding

Shape: Equal,

Name: PPR Coupling

Color: Green White,Grey ,etc

Surface: Smooth

Pressure Rating: 2.0MPa

Size:20mm-160mm
OEM Available

Material: PPR HYOSUNG R200P from Korea,

Standard: ISO 15874: 2003, DIN8077-8078

Production temperature: -40 - +95°C

Certification: ISO9001,

Descriptions of coupling

Name	pp-r pipe fittings PPR Coupling PPR Socket
Color	green, white, gray, blue
Connection	socket fusion joint, electro fusion joint or transition joint
Material	polypropylene
Pressure Rating	1.0Mpa,1.25MPa, 1.6MPa, 2.0MPa ,2.5MPa
Service life	50 years
Size	20mm-160mm

Permissible Working Pressure And Longevity

	Working pressure(bar)	Temperature ℃	Working year(H/Y)
Cold water	0 to10 transient	To 25	8760
Hot water	0 to10 transient	To 60	8710
Hot water	0 to10 transient	To 80	50

For Water Installations

Temperature	Service life	Safety-factor=1.5
		SDR 11	SDR 9	SDR7.4	SDR 6
		Nominal Pressere
		PN10	PN12.5	PN16	PN20
		Permissible Working Pressure
20℃	1	15.0	18.9	23.8	30.0
	10	13.7	17.3	21.7	27.2
	50	12.9	15.9	20.4	25.7
40℃	1	10.8	13.6	17.1	21.2
	10	9.2	12.4	16.0	20.2
	50	9.2	11.5	14.5	18.8
50℃	1	9.2	10.8	14.5	18.3
	10	8.2	10.5	13.1	16.5
	50	7.7	9.8	12.2	15.4
60℃	1	/	/	12.2	15.4
	10	/	/	11.0	13.8
	50	/	/	10.1	12.7
75℃	1	/	/	9.9	12.3
	10	/	/	7.5	9.3
	25	/	/	6.1	7.5

SDR=Standard Dimension Ratio(diameter/wall thickness)
SDR=d/s(S=Pope series index from ISO 4065)

Feature

1. Sanitary & non-toxic;
2. Corrosion resistant & not scaling;
3. High temperature resistant & high pressure resistant;
4. Heat preservation & energy efficient;
5. Light weight;
6. Elegant appearance;
7. Convenient & reliable installation;
8. Long service life: over 50 years

Application of ppr pipe and fittings

1. The civil-use and industrial-use construction inner cold/warm water and water-giving systems;

2. Public sites, (such as schools, hospitals), gyms(such as swimming pools, playground);

3. Drinking water systems and food industry management system'

4. Garden and warm rooms irrigating systems;

5. Traditional heat-giving/ heat-absorbing systems;

6. Central air-conditioner system;

7. Chemical flowing transferring pipe system.

Our advantages

1). 15 Years' Experience in production

2). accept OEM Order

3). ISO9001 approved
