Corrosion Resistant Ppr Pipe Accessories For Water Supply Polypropylene Equal Tee

Corrosion Resistant Ppr Pipe Accessories For Water Supply Polypropylene Equal Tee

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

Corrosion Resistant Ppr Pipe Accessories For Water Supply Polypropylene Equal Tee

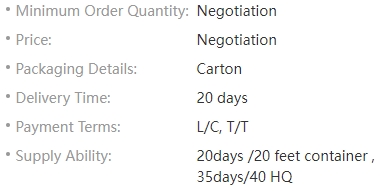

Payment & Shipping Terms

Description

Corrosion Resistant Ppr Pipe Accessories For Water Supply Polypropylene Equal Tee 0

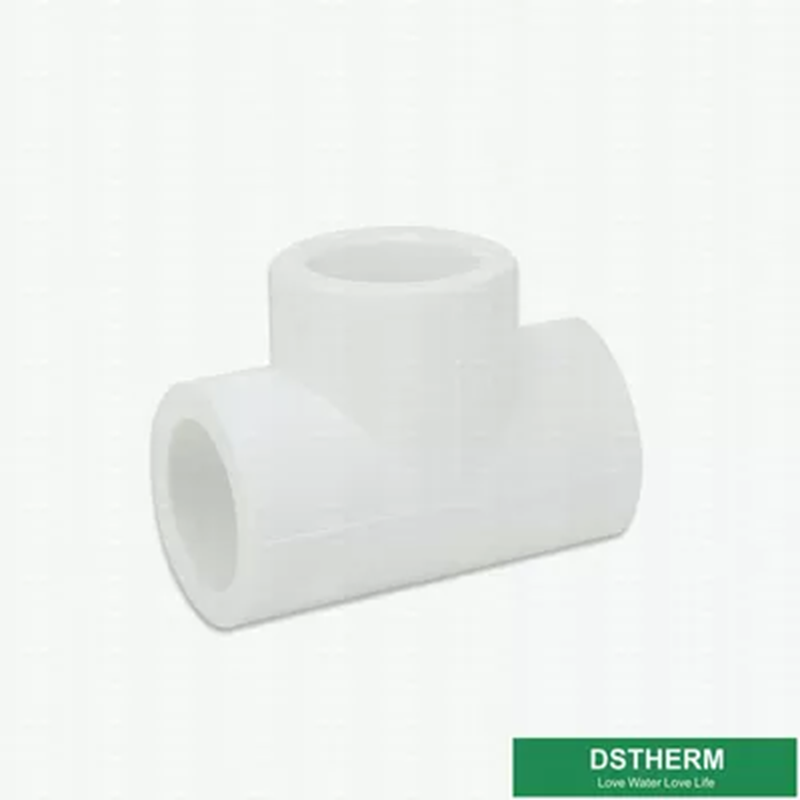

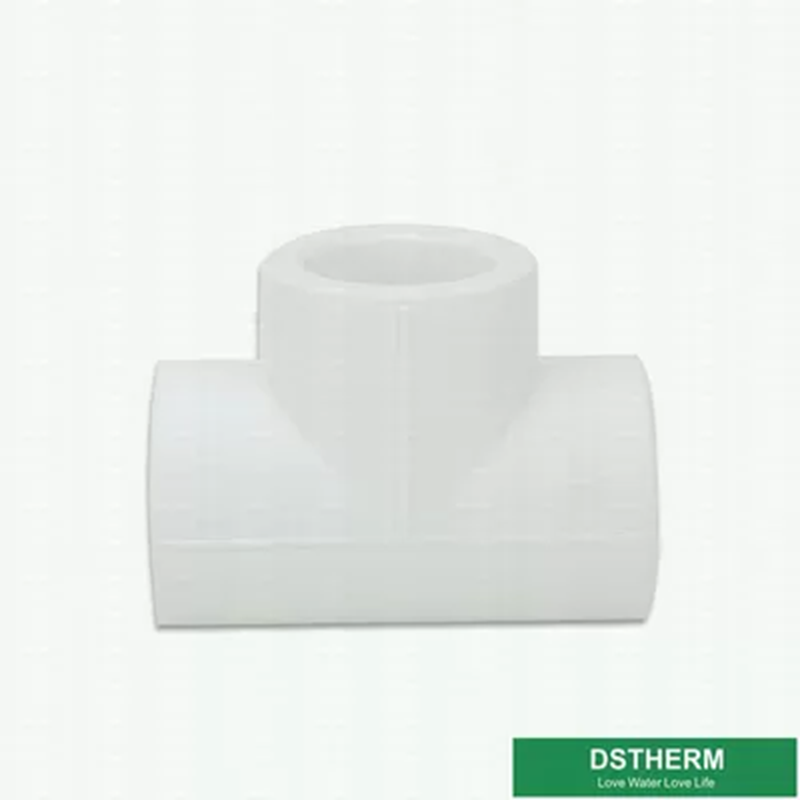

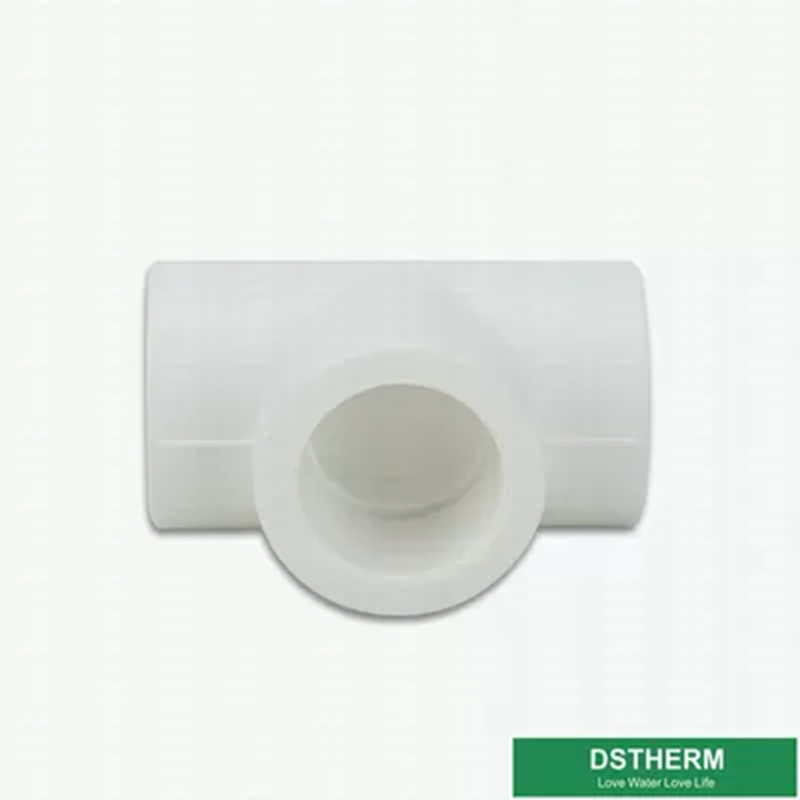

DSTHERM White PPR Pipe Fittings Equal Tee Size 20-160mm For Water Supply Polypropylene

Material: PPR HYOSUNG R200P from Korea , Borealis A140E

Technics: Injection
Place of Origin: Shanghai, China
Connection: Welding
Shape: Equal,
Name: PPR Equal Tee
Color: White and other color on request
Surface: Smooth
Pressure Rating: PN20
Size:20mm-160mm
OEM Available
Standard: ISO 15874: DIN8077-8078
Production temperature: -40 - +95°C
Certification: ISO9001

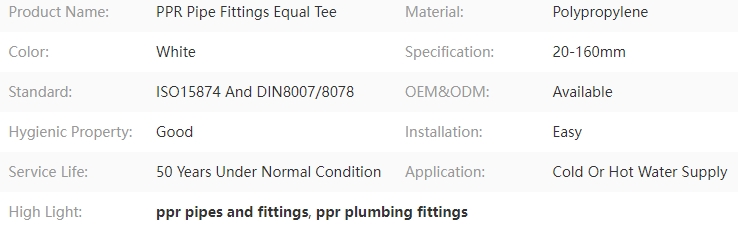

PPR Equal Tee Description
Items	PPR Equal Tee
Brand	DSTHERM,OEM,ODM
Material	PP-R
Size	20 – 160mm
Color	White and other color on request
Connection	Hot melting
Pressure	PN12.5, PN16, PN20, PN 25
Standard	ISO15874, DIN8077, DIN8078
Certification	ISO9001
Application	For Water Supply system
Warranty Period	50 years

Water Installations

Temperature	Service life	Safety-factor=1.5
		SDR 11	SDR 9	SDR7.4	SDR 6
		Nominal Pressere
		PN10	PN12.5	PN16	PN20
		Permissible Working Pressure
20℃	1	15.0	18.9	23.8	30.0
	10	13.7	17.3	21.7	27.2
	50	12.9	15.9	20.4	25.7
40℃	1	10.8	13.6	17.1	21.2
	10	9.2	12.4	16.0	20.2
	50	9.2	11.5	14.5	18.8
50℃	1	9.2	10.8	14.5	18.3
	10	8.2	10.5	13.1	16.5
	50	7.7	9.8	12.2	15.4
60℃	1	/	/	12.2	15.4
	10	/	/	11.0	13.8
	50	/	/	10.1	12.7
75℃	1	/	/	9.9	12.3
	10	/	/	7.5	9.3
	25	/	/	6.1	7.5

SDR=Standard Dimension Ratio(diameter/wall thickness)
SDR=d/s(S=Pope series index from ISO 4065)

Application:
1For cold and hot water Standard: DIN 8078 / 80771 Light weight, convenient to transport and handle
2 High strength and less resistance
3 Easy to install and long lifespan
4 Healthy and non-toxic, bacterial neutral, conforming to drinking water standards
5 Low cost and recyclable; thereby benefiting the environment6 Colors: white, other customized colors available

Advantages
1, High Temperature Resistance: the maximum sustained working temperature is up to 70 Degrees Celsius, the maximum transient temperature is up to 95 Degrees Celsius.
2, Heat Preservation: low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.
Non-toxic: no heavy metal additives would not be covered with dirty or contaminated by bacterium.
3, Corrosion Resistant: resist chemical matters or electron chemical corrosion.
4, Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system.
5, Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes.
6, Long Life: more than 50 years under normal conditions.
7, Recycled and Environment-friendly.
