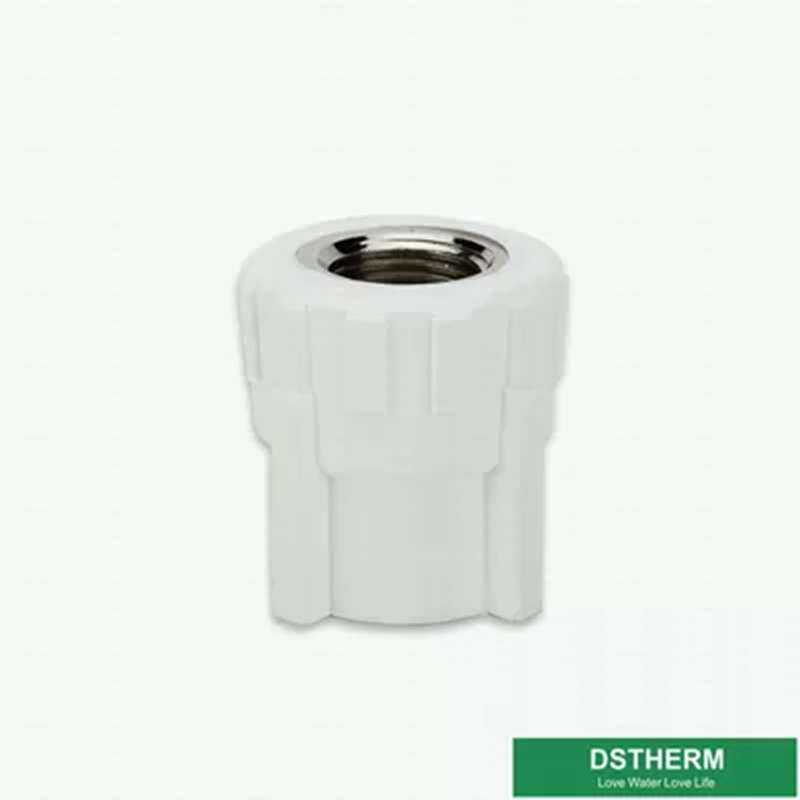

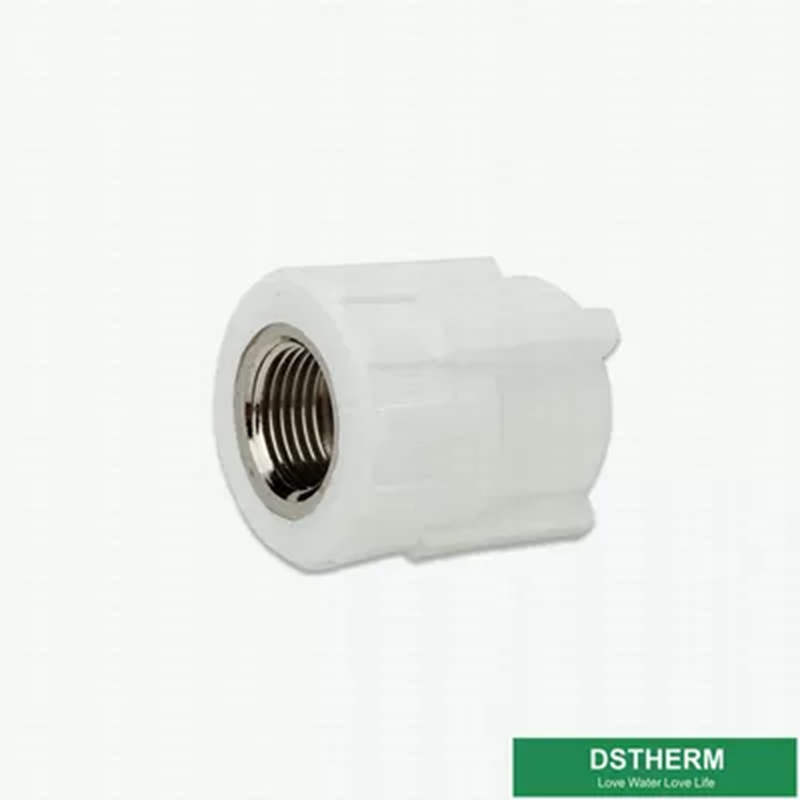

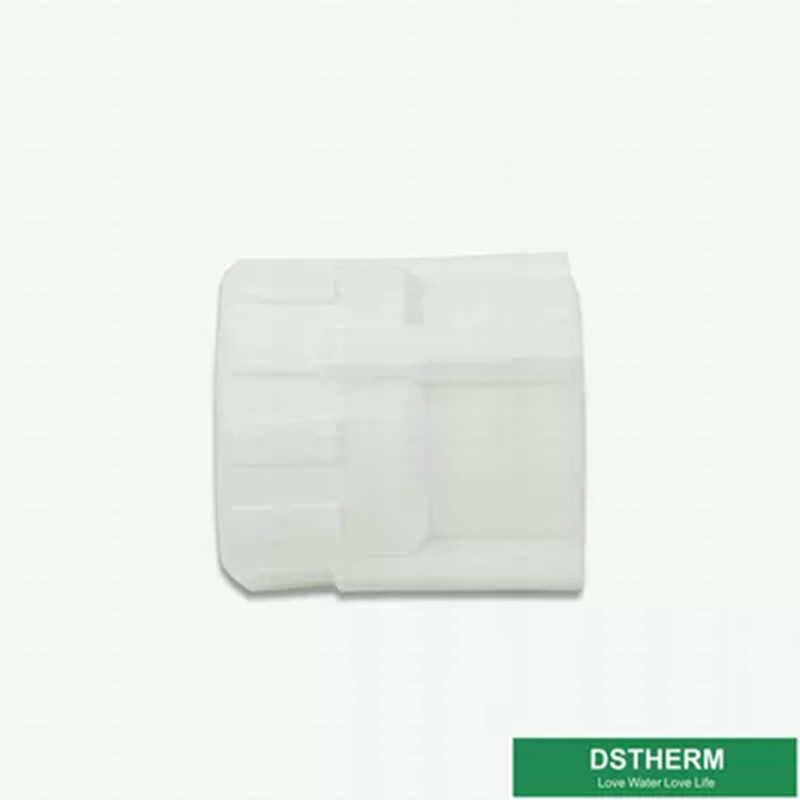

Casting Technics White Ppr Pipe Accessories Female Threaded Coupling

Casting Technics White Ppr Pipe Accessories Female Threaded Coupling

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-110mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

Casting Technics White Ppr Pipe Accessories Female Threaded Coupling

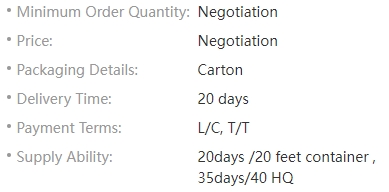

Payment & Shipping Terms

Description

Casting Technics White Ppr Pipe Accessories Female Threaded Coupling 0

DSTHERM White PPR Pipe Fittings Female Threaded Coupling Size 20-160mm Heat Preservation

Material: PPR HYOSUNG R200P from Korea , Borealis A140E
Technics: Injection
Place of Origin: Shanghai, China
Connection: Welding
Shape: Equal,
Name: PPR Female threaded Coupling
Color: White and other color on request
Surface: Smooth
Pressure Rating: 2.0MPa
Size:20x1/2–90x3
OEM Available
Material: PPR HYOSUNG R200P from Korea,58-3A cooper for brass insert
Standard: ISO 15874: 2003, DIN8077-8078
Production temperature: -40 - +95°C
Certification: ISO9001

1. High Temperature Resistance: the maximum sustained working temperature is up to 70 °C,the maximum transient temperature is up to 95°C
2. Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
3. Corrosion Resistant: resist chemical matters or electron chemical corrosion
4. Lower Installation Costs: light weight and ease of installation can reduce installation costs
5. Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume
6. Long Life: more than 50 years under normal conditions more than 50 years under normal conditions
7. Recycled and Environment-friendly

Feature
1. Sanitary & non-toxic;
2. Corrosion resistant & not scaling;
3. High temperature resistant & high pressure resistant;
4. Heat preservation & energy efficient;
5. Light weight;
6. Elegant appearance;
7. Convenient & reliable installation;
8. Long service life: over 50 years

Application Field
Potable water pipe networks for cold and warm water installations of residential
buildings, hospitals, hotels, schools, office buildings and shipbuilding
Pipe networks for rainwater utilization systems
Pipe networks for compressed air plants
Pipe networks for swimming pool facilities
Pipe networks for solar plants
Pipe networks in agriculture and horticulture
Heating pipes for residential housing
Pipe networks for industry,
For Water Installations

Temperature	Service life	Safety-factor=1.5
		SDR 11	SDR 9	SDR7.4	SDR 6
		Nominal Pressere
		PN10	PN12.5	PN16	PN20
		Permissible Working Pressure
20℃	1	15.0	18.9	23.8	30.0
	10	13.7	17.3	21.7	27.2
	50	12.9	15.9	20.4	25.7
40℃	1	10.8	13.6	17.1	21.2
	10	9.2	12.4	16.0	20.2
	50	9.2	11.5	14.5	18.8
50℃	1	9.2	10.8	14.5	18.3
	10	8.2	10.5	13.1	16.5
	50	7.7	9.8	12.2	15.4
60℃	1	/	/	12.2	15.4
	10	/	/	11.0	13.8
	50	/	/	10.1	12.7
75℃	1	/	/	9.9	12.3
	10	/	/	7.5	9.3
	25	/	/	6.1	7.5
