Brass Ball Valve

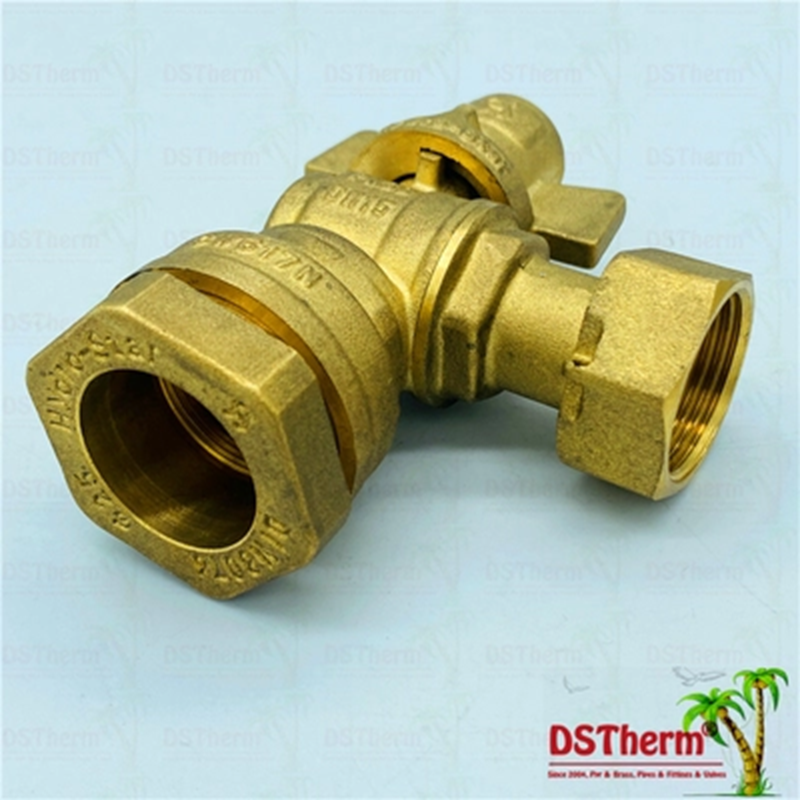

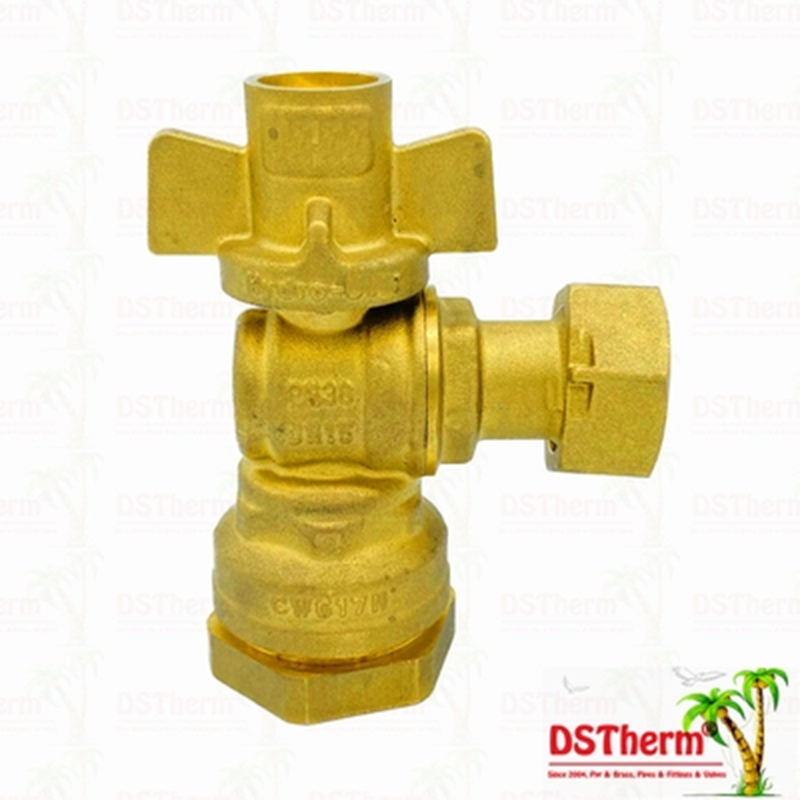

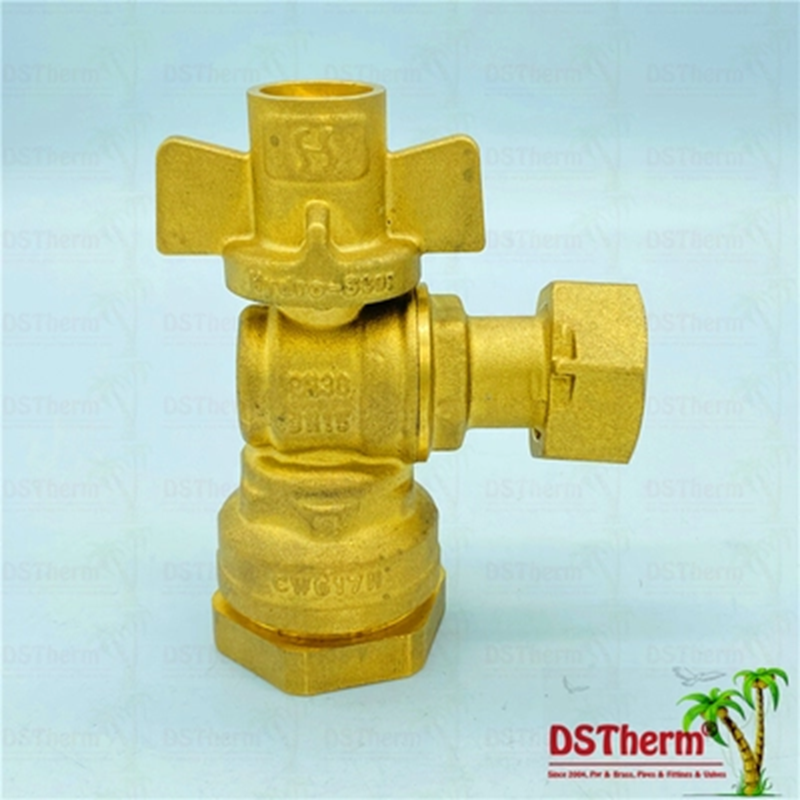

Water Control Single Union Ball Valve With Brass Handle With Female Threaded Connector

Water Control Single Union Ball Valve With Brass Handle With Female Threaded Connector

Place of Origin:Zhejiang China
Brand Name:DSTHERM/OEM/CUSTOMIZED
Certification:ISO9001,CE
Model Number:1/2'-1'
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

Water Control Single Union Ball Valve With Brass Handle With Female Threaded Connector

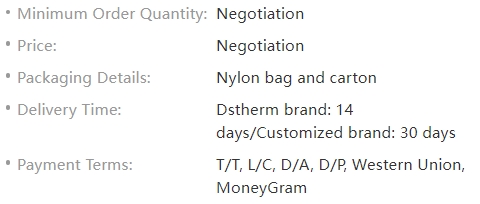

Payment & Shipping Terms

Description

Water Control Single Union Ball Valve With Brass Check Valve Brass Handle With Female Threaded Connector

Water Control Single Union Ball Valve With Brass Handle With Female Threaded Connector 0

Raw Material:

Handle: Brass Elbow Handle With Steel Screw Nut

Body: Brass Body

Screw :Steel

Ball : Brass Ball

Union: Brass Union

OEM: Accepted

MOQ: Negotiable

Water Control Single Union Ball Valve With Brass Handle With Female Threaded Connector 1

What is Brass Ball Valve used for?

Common applications of brass ball valves are used in food, chemical, and oil and gas processing, and in conveying gaseous fluids. It is also safe to use in the delivery of potable drinking water.

What is Union Brass Ball Valve used for?

Union Brass Ball Valve have wide range usage. The connection solution is more flexible to connect with fittings and valves. It is also used in food, chemical, and oil and gas processing, and in conveying gaseous fluids. It is also safe to use in the delivery of potable drinking water.

Water Control Single Union Ball Valve With Brass Handle With Female Threaded Connector 2

Ball Valve With Check Valve Elbow Handle Single Union Check Valve With Brass Ball Valve.

Material	Brass Body, Brass Bonnet, Chromed brass ball, iron handle
Surface	Natural brass or Nickel plated
Size	1/2"3/4"1"11/4"11/2"2"21/2"3"4"
Samples Time	1) 2 days - For our existing samples for reference 2) 30 days - If new size, need make the new mould
OEM Acceptable	Yes
Service	7*24 Hours
Packing Details	Poly bag, inner box, out carton( pallet)
Payment Term	T/T, L/C, WESTERN UNION
Delivery Time	35-40 days after confirming the order
Minimum Order Quantity	2000-3000 Pieces

Water Control Single Union Ball Valve With Brass Handle With Female Threaded Connector 3

Item: Ball Valve
Size: 1/4" - 4"
Brass material: 59-3
Connection Type: Female BSP x Female BSP
Handle Material: IRON / AL
Handle Type: Lever
Stem Type: Blowout Proof
Stem Material: Brass
Seat Material: PTFE
Body Seal Material: PTFE

Ball Material: Chrome Plated Brass
Valve Basic Body Material: Brass
Surface Treatment: Nickel Plating
Application: Can be used for oil & petroleum, and water
Max. Temp: -20°C to+120°C
Working Pressure: 25bar/362.5psi
Port: All
Features: Full Port for Maximum Flow Rate
Standards: EN13828

Water Control Single Union Ball Valve With Brass Handle With Female Threaded Connector 4

Water Control Single Union Ball Valve With Brass Handle With Female Threaded Connector 5

Advantages

1) Fast Material Supply.

2) Every valve goes through a six-step QC process before delivery.

Material Control, Machining Quality Control, In-coming Material Inspection, Assembly Line Quality Control, Leakage Testing, Final Inspection Before Delivery.

3) 100% Leakage Test.

4) Strictly and perfect management in production.

5) Guarantee Quality In Competitive Price.

6) On-time Delivery.

7) Complete R&D facilities and Excellent team.

8) Annual R&D projects reach the number of 100.

9) Have rich experience and strong ability to develop new products.

QC:

· We promise to supply you high quality and durable goods for you.

· Our worker will check every accessory before hand-assembled.

· Our quality inspector will check every product one by one before packing.

· Regular checking on line from production in each workshop
