1/2" - 4" Standard Forged High Pressure Brass Ball Valve For Gas Pipe

Brass Ball Valve For Gas Pipe Gas Brass Ball Valve Gas Ball Valve Standard Ball Valve Forged High Pressure Ball Valve

BRASS Ball Valve

What is Brass Ball Valve used for?

Common applications of brass ball valves are used in food, chemical, and oil and gas processing, and in conveying gaseous fluids. It is also safe to use in the delivery of potable drinking water.

What is Union Brass Ball Valve used for?

Union Brass Ball Valve have wide range usage. The connection solution is more flexible to connect with fittings and valves. It is also used in food, chemical, and oil and gas processing, and in conveying gaseous fluids. It is also safe to use in the delivery of potable drinking water.

DSTHERM Brass Ball Valve

With 20+ years production experience . DSTHERM Gas piping system is widely famous at home and abroad by its' high quality and good price .
1. Full size:1/2''-4''
2. Accept customization: line, typing, color, packaging, length
3. water pressure: High Pressure
4. Best materials: 100% New Material
5.50 years life
6. High Temperature Resistance
7.Non-toxic, harmless, no rust, no corrosion
8. Large production capacity: 10 production lines, each can produce 18,000 pieces/day



What's better a gate valve or a ball valve?

Ball valves are more effective at forming a tight seal and have more reliability and longevity than gate valves, but tend to be more expensive. They are often used for shutoff and control applications. Because ball valves can open and close immediately, they are more likely than gate valves to cause water hammer.

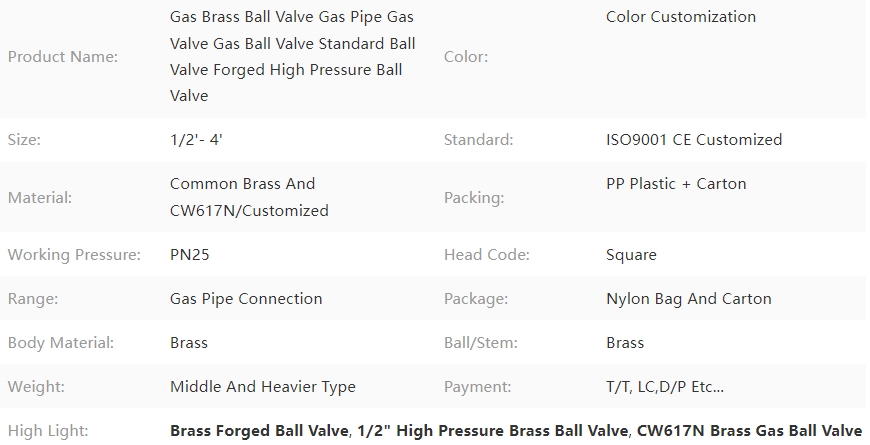

Item: Ball Valve Size: 1/4" - 4" Brass material: 59-3 Connection Type: Female BSP x Female BSP Handle Material: IRON / AL Handle Type: Lever Stem Type: Blowout Proof Stem Material: Brass Seat Material: PTFE Body Seal Material: PTFE

Ball Material: Chrome Plated Brass Valve Basic Body Material: Brass Surface Treatment: Nickel Plating Application: Can be used for oil & petroleum, and water Max. Temp: -20°C to+120°C Working Pressure: 25bar/362.5psi Port: All Features: Full Port for Maximum Flow Rate Standards: EN13828

Advantages
1) Fast Material Supply.
2) Every valve goes through a six-step QC process before delivery.
Material Control, Machining Quality Control, In-coming Material Inspection, Assembly Line Quality Control, Leakage Testing, Final Inspection Before Delivery.
3) 100% Leakage Test.
4) Strictly and perfect management in production.
5) Guarantee Quality In Competitive Price.
6) On-time Delivery.
7) Complete R&D facilities and Excellent team.
8) Annual R&D projects reach the number of 100.
9) Have rich experience and strong ability to develop new products.
QC:
· We promise to supply you high quality and durable goods for you.
· Our worker will check every accessory before hand-assembled.
· Our quality inspector will check every product one by one before packing.
· Regular checking on line from production in each workshop
Production step :
1) purchasing the material and forged the semi-products .
2) processing the semi-products in workshop .
3) assembling the goods .
4) testing the sealing in pressure and checking quality of the goods
5) package
6) deliveing the goods on time .
Package:
1) the package standard : standart export carton, box .
2) if customer has special requirement. it is available to provide the colorful package against the design of customer.
