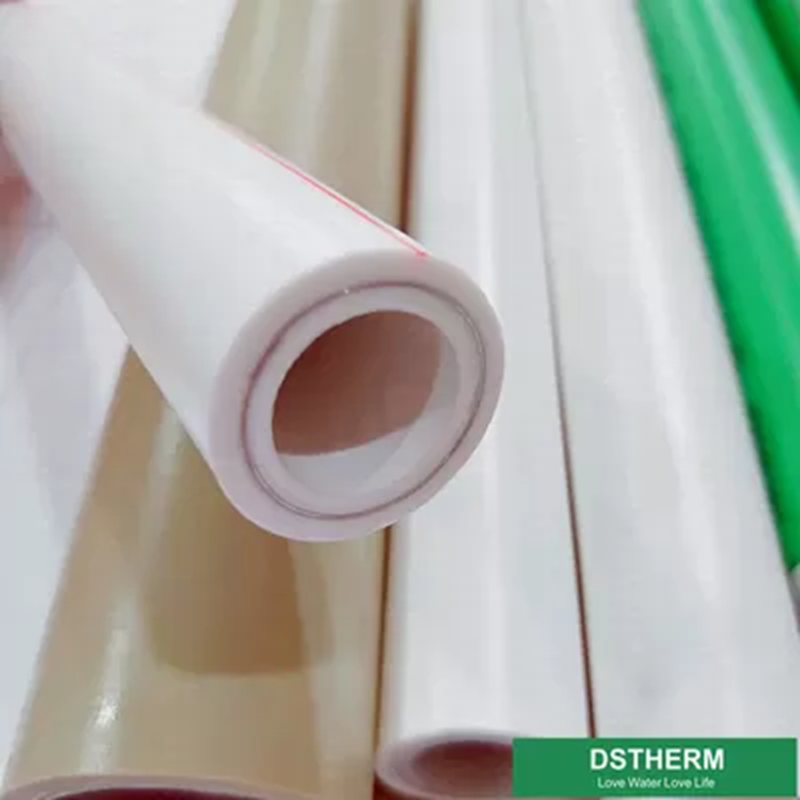

PPR Aluminum Pipe
Stable PPR Composite Plumbing Pipes Aluminum Plastic Pipe Smooth Inner Wall
- Place of Origin:Zhejiang China
- Brand Name:DSTHERM
- Certification:ISO9001
- Model Number:20-160mm
- Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
Stable PPR Composite Plumbing Pipes Aluminum Plastic Pipe Smooth Inner Wall
Payment & Shipping Terms
Description
PPR Aluminum stable composite pipe ISO9001 DIN8077/8078 Material Polypropylene Color customization 20-160mm
Product: PP-R Aluminum Composite pipe
Material: 100% PPR
Size: 16-160mm
Certificate:ISO9001
Standard: ISO15874; DIN8077/8078
Working place: -40°-95°
| Series SDR9/S4/PN16 | |||||
|
Nominal Outer Diameter |
Diameter | Wall Thickness | Inner Diameter |
Overall Wall Thickness |
Overall Outer Diameter |
| 20mm | 20.0 | 2.3 | 15.4 | 3.4 | 21.9 |
| 25mm | 25.0 | 2.8 | 19.4 | 4.0 | 27.1 |
| 32mm | 32.0 | 3.6 | 24.8 | 4.8 | 34.1 |
| 40mm | 40.0 | 4.5 | 31.0 | 5.8 | 42.3 |
| 50mm | 50.0 | 5.6 | 38.8 | 6.9 | 52.3 |
| 63mm | 63.0 | 7.1 | 48.8 | 8.4 | 65.3 |
| 75mm | 75.0 | 8.4 | 58.3 | 9.6 | 77.8 |
| 90mm | 90.0 | 10.1 | 70.0 | 11.5 | 93.3 |
| 110mm | 110.0 | 13.7 | 85.8 | 13.7 | 114.0 |
| Series SDR7.4/S3.2/PN20 | |||||
|
Nominal Outer Diameter |
Diameter | Wall Thickness | Inner Diameter |
Overall Wall Thickness |
Overall Outer Diameter |
| 20mm | 20.0 | 2.8 | 14.4 | 3.9 | 21.9 |
| 25mm | 25.0 | 3.5 | 18.0 | 4.7 | 27.1 |
| 32mm | 32.0 | 4.5 | 23.0 | 5.7 | 34.1 |
| 40mm | 40.0 | 5.6 | 28.8 | 6.8 | 42.3 |
| 50mm | 50.0 | 6.9 | 36.2 | 8.2 | 52.3 |
| 63mm | 63.0 | 8.6 | 45.6 | 10.0 | 65.3 |
| 75mm | 75.0 | 10.3 | 54.4 | 11.5 | 77.8 |
| 90mm | 90.0 | 12.3 | 65.4 | 13.7 | 93.3 |
| 110mm | 110.0 | 15.1 | 79.9 | 16.6 | 114.0 |
| Series SDR6/S2.5/PN25 | |||||
|
Nominal Outer Diameter |
Diameter | Wall Thickness | Inner Diameter |
Overall Wall Thickness |
Overall Outer Diameter |
| 20mm | 20.0 | 3.4 | 13.2 | 4.5 | 21.9 |
| 25mm | 25.0 | 4.2 | 16.6 | 5.4 | 27.1 |
| 32mm | 32.0 | 5.4 | 21.2 | 6.7 | 34.1 |
| 40mm | 40.0 | 6.7 | 26.6 | 8.0 | 42.3 |
| 50mm | 50.0 | 8.3 | 33.2 | 9.6 | 52.3 |
| 63mm | 63.0 | 10.5 | 42.0 | 11.8 | 65.3 |
| 75mm | 75.0 | 12.5 | 49.8 | 13.8 | 77.8 |
| 90mm | 90.0 | 15.0 | 59.8 | 16.4 | 93.3 |
| 110mm | 110.0 | 18.3 | 73.2 | 19.8 | 114.0 |
Advantages
1. Light weight, convenient to transport and handle
2. High strength
3. Less resistance
4. Corrosion resistance
5. No pipe furring
6. Sound insulation
7. Easy to install
8. Long lifespan
9. Low cost
10. Long usage life of at least 50 years
Applications
1 ) Cold, hot water supply facilities for public buildingsApplications:
2 ) Food, chemical, electronic industrial pipeline networks such as pipeline networks for transporting all kinds of corrosive liquid (such as acid, buck and deionized water )
3 ) Drinking water production system pipeline networks such as pure water and mineral water
4 ) Air conditioning facility pipeline
5 ) Compressed gas pipeline networks for industry
6 ) Pipeline network for swimming pool
7 ) Pipeline network for solar energy facility
8 ) Agriculture and garden production transporting system
We can supply products of different colors as per customer's request
Specifications
PP-R aluminum plastic composite pipe
1. Working pressure:PN16/PN20/PN25
2. Outside diameter:20/25/32/40/50/63/75/90/110mm
PPR Aluminum Pipe ISO9001 DIN8077/8078 Material Polypropylene Color customization 20-160mm
Product: PP-R Aluminum Composite pipe
Material: 100% PPR
Size: 16-160mm
Certificate:ISO9001
Standard: ISO15874; DIN8077/8078
Working place: -40°-95°
| Series SDR9/S4/PN16 | |||||
|
Nominal Outer Diameter |
Diameter | Wall Thickness | Inner Diameter |
Overall Wall Thickness |
Overall Outer Diameter |
| 20mm | 20.0 | 2.3 | 15.4 | 3.4 | 21.9 |
| 25mm | 25.0 | 2.8 | 19.4 | 4.0 | 27.1 |
| 32mm | 32.0 | 3.6 | 24.8 | 4.8 | 34.1 |
| 40mm | 40.0 | 4.5 | 31.0 | 5.8 | 42.3 |
| 50mm | 50.0 | 5.6 | 38.8 | 6.9 | 52.3 |
| 63mm | 63.0 | 7.1 | 48.8 | 8.4 | 65.3 |
| 75mm | 75.0 | 8.4 | 58.3 | 9.6 | 77.8 |
| 90mm | 90.0 | 10.1 | 70.0 | 11.5 | 93.3 |
| 110mm | 110.0 | 13.7 | 85.8 | 13.7 | 114.0 |
| Series SDR7.4/S3.2/PN20 | |||||
|
Nominal Outer Diameter |
Diameter | Wall Thickness | Inner Diameter |
Overall Wall Thickness |
Overall Outer Diameter |
| 20mm | 20.0 | 2.8 | 14.4 | 3.9 | 21.9 |
| 25mm | 25.0 | 3.5 | 18.0 | 4.7 | 27.1 |
| 32mm | 32.0 | 4.5 | 23.0 | 5.7 | 34.1 |
| 40mm | 40.0 | 5.6 | 28.8 | 6.8 | 42.3 |
| 50mm | 50.0 | 6.9 | 36.2 | 8.2 | 52.3 |
| 63mm | 63.0 | 8.6 | 45.6 | 10.0 | 65.3 |
| 75mm | 75.0 | 10.3 | 54.4 | 11.5 | 77.8 |
| 90mm | 90.0 | 12.3 | 65.4 | 13.7 | 93.3 |
| 110mm | 110.0 | 15.1 | 79.9 | 16.6 | 114.0 |
| Series SDR6/S2.5/PN25 | |||||
|
Nominal Outer Diameter |
Diameter | Wall Thickness | Inner Diameter |
Overall Wall Thickness |
Overall Outer Diameter |
| 20mm | 20.0 | 3.4 | 13.2 | 4.5 | 21.9 |
| 25mm | 25.0 | 4.2 | 16.6 | 5.4 | 27.1 |
| 32mm | 32.0 | 5.4 | 21.2 | 6.7 | 34.1 |
| 40mm | 40.0 | 6.7 | 26.6 | 8.0 | 42.3 |
| 50mm | 50.0 | 8.3 | 33.2 | 9.6 | 52.3 |
| 63mm | 63.0 | 10.5 | 42.0 | 11.8 | 65.3 |
| 75mm | 75.0 | 12.5 | 49.8 | 13.8 | 77.8 |
| 90mm | 90.0 | 15.0 | 59.8 | 16.4 | 93.3 |
| 110mm | 110.0 | 18.3 | 73.2 | 19.8 | 114.0 |
Applications
1. Cold and hot water supply
2. Heating system including flooring heating, wall
3. Heating and radiant system
4. Central air conditioning system
5. Industrial liquids transportation
Advantages
1. Light weight, convenient to transport and handle
2. High strength
3. Less resistance
4. Corrosion resistance
5. No pipe furring
6. Sound insulation
7. Easy to install
8. Long lifespan
9. Low cost
10. Long usage life of at least 50 years
Plastic Composite Fiberglass Ppr Pipe Pn25 50mm Ppr Aluminum Composite Pipe 50mm For Wall Heating System
PPR Fiberglass Composite Pipe
PPR Fiberglass reinforced multilayer composite pipes
Are you searching for PPR Fiber Glass Composite Pipe Suppliers for your industrial plumbing applications? Then look no further, DSHTERM is the most massive Industrial PPR pipes and fittings Supplier in China market. We have the products & expertise that can meet your requirements.
PPR Fiber Glass Pipe DSTHERM
DSTHERM Fiber-G (PPR/Fiberglass/ PPR) composite pipes :DSTHERM Fiber-G polymer composite pipes produced by multi-extrusion method with middle layer made of special polymer-fiberglass composition, which was specially designed in the laboratory of Blue Ocean plant.
Glass Fiber Reinforces Fiberglass Composite Pipes ISO9001 DIN8077/8078 Color customization size 20-160
PP-R Fiber Composite pipe
OEM Available
Material: PPR HYOSUNG R200P from Korea,
Standard: ISO 15874: DIN8077-8078
Production temperature: -40 - +95°C
Pressure Rating: PN10,PN12.5,PN16 ,PN20
Connection:socket fusion joint,electro fusion joint or transition joint
| PN 1.25MPa | PN 1.6MPa | PN 2.0MPa | PN 2.5MPa | |
|
Outer Diameter dn(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
Wall Thickness en(mm) |
| 20 | 2.0 | 2.3 | 2.8 | 3.4 |
| 25 | 2.3 | 2.8 | 3.5 | 4.2 |
| 32 | 3.0 | 3.6 | 4.4 | 5.4 |
| 40 | 3.7 | 4.5 | 5.5 | 6.7 |
| 50 | 4.6 | 5.6 | 6.9 | 8.4 |
| 63 | 5.8 | 7.1 | 8.7 | 10.5 |
| 75 | 6.9 | 8.4 | 10.3 | 12.5 |
| 90 | 8.2 | 10.1 | 12.3 | 15.0 |
| 110 | 10.0 | 12.3 | 15.1 | 18.3 |
| 160 | 14.6 | 17.9 | 21.7 | 26.6 |
| Items | Index | ||
| Pipe Material | Pipe Article | ||
| Density | G/cm³20℃ | 0.89-0.91 | |
| Heat Transmitting Index | W/m.k(20℃) | 0.23-0.24 | |
| Thread Expand Index | Mm/m.k | 0.14-0.16 | |
| Flip Thread Mode Mete | W/m²(20℃) | 800 | |
| Extend Intendity | Mpa | More than 20 | |
| Minitication in Portrait | 135℃, 2h% | Less than 2 | |
| Swing and Beat Impact Test | 15J, 0℃, 2H (disrepair rate)% | Less than 10 | |
Advantages:
High temperature resistance: the maximum sustained working temperature is up to 70°Cdegrees, the maximum transient temperature is up to 95°C
Heat preservation: low thermal conductivity results in preserving heat
Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
Lower installation costs: light weight and easy installation can reduce installation costs
Higher flow capacity: smooth interior walls result in low pressure loss and high volume
Feature
1. Sanitary & non-toxic;
2. Corrosion resistant & not scaling;
3. High temperature resistant & high pressure resistant;
4. Heat preservation & energy efficient;
5. Light weight;
6. Elegant appearance;
7. Convenient & reliable installation;
8. Long service life: over 50 years
Applications:
1 ) Cold, hot water supply facilities for public buildings
2 ) Food, chemical, electronic industrial pipeline networks such as pipeline networks for transporting all kinds of corrosive liquid (such as acid, buck and deionized water )
3 ) Drinking water production system pipeline networks such as pure water and mineral water
4 ) Air conditioning facility pipeline
5 ) Compressed gas pipeline networks for industry
6 ) Pipeline network for swimming pool
7 ) Pipeline network for solar energy facility
8 ) Agriculture and garden production transporting system
We can supply products of different colors as per customer's request.
What is Ppr Aluminum Pipe? Aluminum-plastic composite PPR pipe is a composite pipe of five layers, inside and outside layers of which are made of PP-R, tightly bonded with melt adhesive to the mid-layer of aluminum core which is longitudinally welded in an overlapping way.

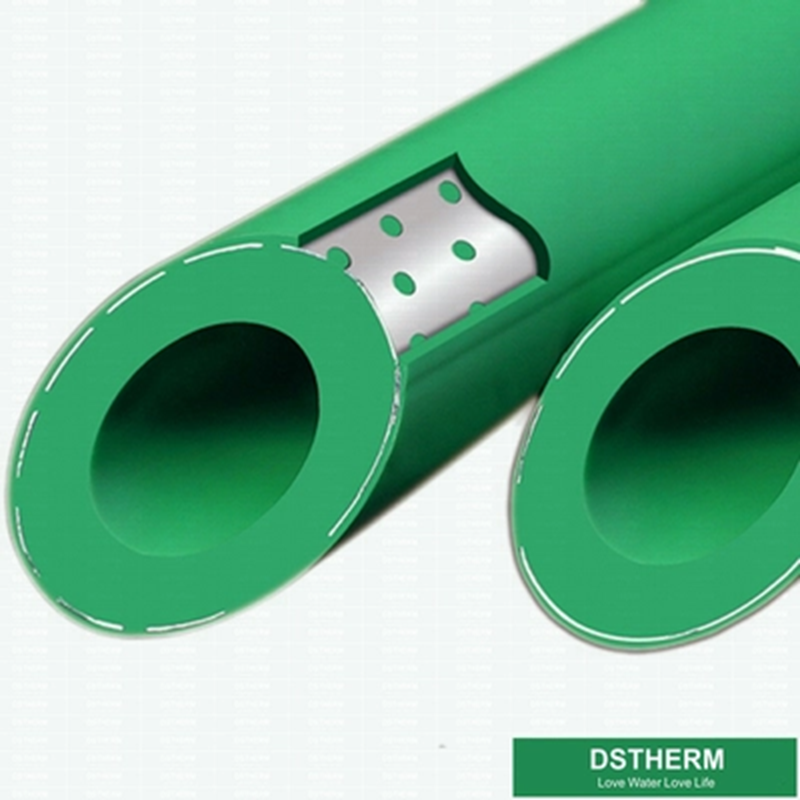

What is Ppr Perforated Aluminum Pipe? Perforated Aluminum-plastic composite PPR pipe is a composite pipe of five layers, inside and outside layers of which are made of PP-R, tightly bonded with melt adhesive to the mid-layer of perforated aluminum core which is longitudinally welded in an overlapping way.
Ppr Composite Aluminum pipe with ppr aluminum-plastic ISO9001 DIN8077/8078 Color customization 20mm-160mm
Product: PP-R Perforated Aluminum Composite pipe
Material: PPR+Aluminum
Size: 20mm 25mm 32mm 40mm 50mm 63mm 75mm 90mm 110mm
Certificate:ISO9001
Standard: ISO15874; DIN8077/8078
Working place: -40°-95°
PP-R Perforated Aluminum Composite pipe
| Series SDR9/S4/PN16 | |||||
|
Nominal Outer Diameter |
Diameter | Wall Thickness | Inner Diameter |
Overall Wall Thickness |
Overall Outer Diameter |
| 20mm | 20.0 | 2.3 | 15.4 | 3.4 | 21.9 |
| 25mm | 25.0 | 2.8 | 19.4 | 4.0 | 27.1 |
| 32mm | 32.0 | 3.6 | 24.8 |
