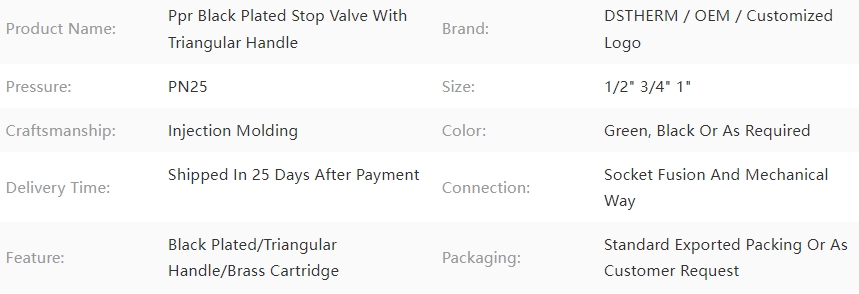

Specification
Panel, handle and sleeve can be customized in color!
Working Principle
The valve operates by rotating the triangular handle, which drives the brass cartridge to move vertically. This motion opens or closes the fluid passage:
Opening: The cartridge lifts, allowing fluid to flow through the PPR base.
Closing: The cartridge descends, pressing tightly against the seat to block fluid flow.
The brass cartridge ensures minimal friction and long-term sealing, while the PPR base provides structural integrity and secure pipe connections.
Functions
Controls the on/off flow of liquids or gases in piping systems.
Regulates flow rate with adjustable shut-off capability.
Provides a tight seal to prevent leaks, even under high-pressure conditions.
Compatible with residential, commercial, and industrial fluid systems.
Feature
Triangular Handle: Ergonomically designed for easy grip and precise control.
Electrophoretic Black Finish: Durable, corrosion-resistant coating for enhanced aesthetics and longevity.
Brass Cartridge: High-quality brass valve core ensures reliable sealing, wear resistance, and compatibility with high-temperature/pressure fluids.
PPR Base: Polypropylene random copolymer (PPR) material offers chemical resistance, thermal stability, and leak-proof connections.
Injection Molding Process: Ensures dimensional accuracy, structural consistency, and cost-efficiency.
Customization: Available in standard sizes (1/2", 3/4", 1") with options for custom sizes, colors, logos, and packaging.
Applications
Plumbing Systems: Cold/hot water supply lines, heating systems, and water treatment installations.
HVAC: Integration into heating, ventilation, and air conditioning pipelines.
Municipal Infrastructure: Used in public water distribution and drainage networks.
Packaging Details
(1) Export safe box.
(2) Inner boxes with filler.
(3) Outpackage is high quality cartons.
(4) Custom package.
Our advantages
1). Over 20 Years' Experience in production
2). Accept OEM Order
3). ISO9001 approved
4). We use All New raw material in products
5). Sufficient products with complete specifications for your choice
We will be your better choice!
