PPR Pipe Fittings

  • Plastic Ppr Pipe Accessories Welding Connection For Pressure Testing
  • Plastic Ppr Pipe Accessories Welding Connection For Pressure Testing
Plastic Ppr Pipe Accessories Welding Connection For Pressure TestingPlastic Ppr Pipe Accessories Welding Connection For Pressure Testing

Plastic Ppr Pipe Accessories Welding Connection For Pressure Testing

  • Place of Origin:Zhejiang China
  • Brand Name:DSTHERM
  • Certification:ISO9001
  • Model Number:1/2' and 3/4'
  • Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
  • INQUIRY


Plastic Ppr Pipe Accessories Welding Connection For Pressure Testing

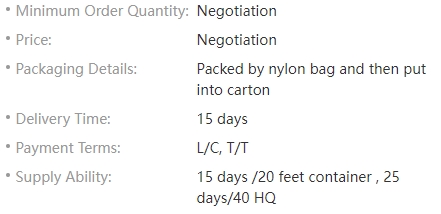

Payment & Shipping Terms

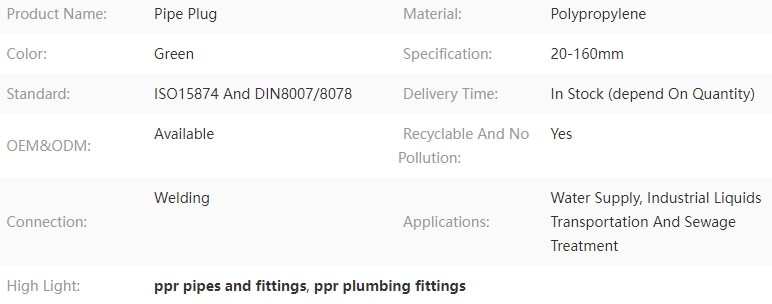

Description

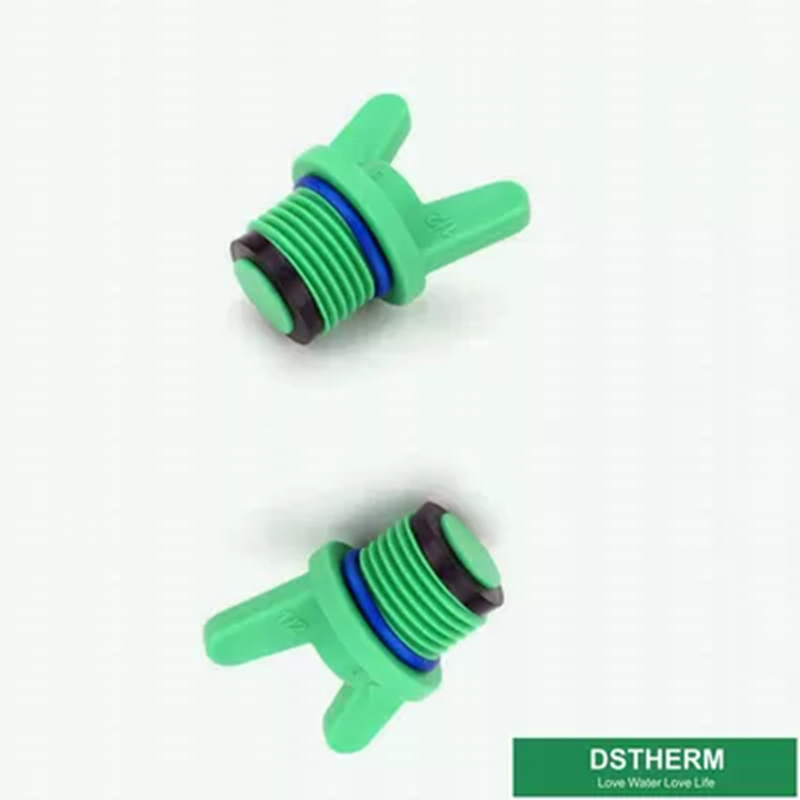

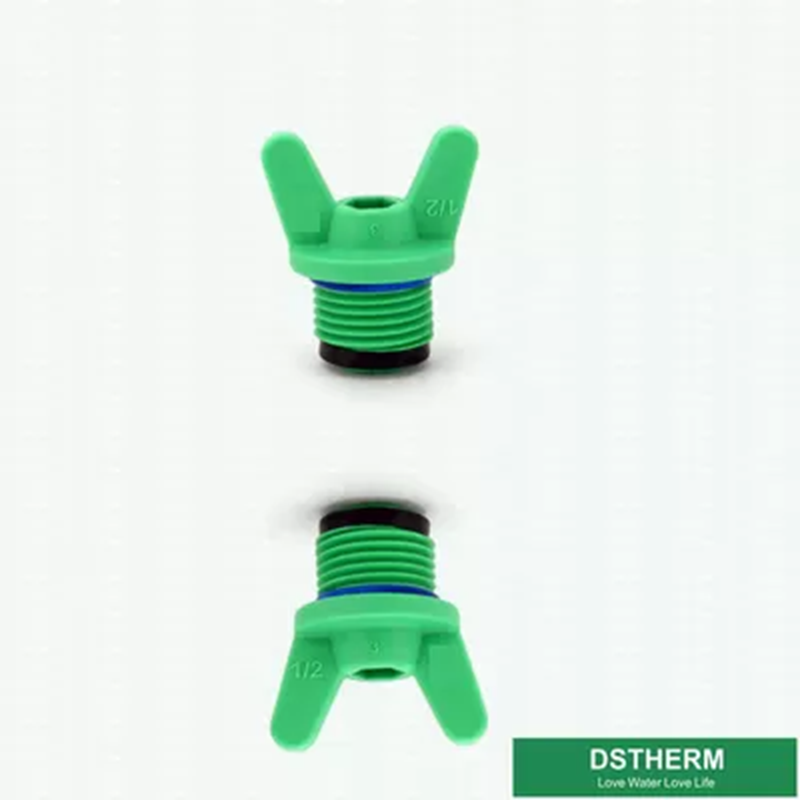

Plastic PPR Pipe Fittings green Pipe Plug Pipe Fitting for you choosing


Characteristics of ppr pipe and fitttings:

1. Healthy and non-toxic

2. Long service life

3. Good resistance to corrosion

4. Ligh weight,high intension and good toughness

5. Energy-saving and wide-bound temperature enduring

6. Low flow resistance

7. Convenient and reliable for installation

8. No leakage forever

PPR Equal Tee Description
Items
Brand DSTHERM OEM,ODM
Material PP-R
Size 20 – 160mm
Color White and other color on request
Connection Hot melting
Pressure PN12.5, PN16, PN20, PN 25
Standard ISO15874, DIN8077, DIN8078
Certification ISO9001
Application For Water Supply system
Warranty Period 50 years


Features:

1. Hygienic, non-toxic: the product, green building materials, can be used for the piping system of pure drinking water.
2. Polypropylene-random (PP-R) water-supplying pipes and fittings from 20 to 160mm
3. Colors: White
and other color on request
4. Long service life: under the prescriptive condition, the piping system can be used for more than 50 years.
5. Brass inserts (welding die) especially for PP-R from 20mm to 63mm available
6. PP-R pipe system related accessories available, including tools, clamps, and welding machines

1. High Temperature Resistance: the maximum sustained working temperature is up to 70 °C,the maximum transient temperature is up to 95°C
2. Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium
3. Corrosion Resistant: resist chemical matters or electron chemical corrosion
4. Lower Installation Costs: light weight and ease of installation can reduce installation costs
5. Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume
6. Long Life: more than 50 years under normal conditions more than 50 years under normal conditions
7. Recycled and Environment-friendly


Advantages
1) Lower total installed cost – Lightweight product is easier and faster to handle and install and less heavy equipment is required to lift and position pipe. This can result in reduced installation costs.
2) Easy to handle –PP and PP-R are lightweight products making handling and positioning pipe fittings easier and safer. Less heavy equipment is needed to unload, handle product on site and position into trenches.
3) Optimum hydraulic performance – PP-R’s smooth inner skin is resistant to build up and allows optimum hydraulic flow.
4) Chemical resistance – PP-R pipe fittings are resistant to corrosion by aggressive and saline soils and substances typically found in sewage effluent, including most industrial discharges.
5) Sensitive to the environment – The material-efficient production reduces the use of raw materials. PP and PP-R pipe fittings are long life products.
6) Flexibile – PP and PP-R are flexible pipe fittings which have the ability to cope with soil movement and external loading without cracking.


Application Field
Potable water pipe networks for cold and warm water installations of residential
buildings, hospitals, hotels, schools, office buildings and shipbuilding
Pipe networks for rainwater utilization systems
Pipe networks for compressed air plants
Pipe networks for swimming pool facilities
Pipe networks for solar plants
Pipe networks in agriculture and horticulture
Heating pipes for residential housing
Pipe networks for industry


For Water Installations


Temperature
Service life Safety-factor=1.5
SDR 11 SDR 9 SDR7.4 SDR 6
Nominal Pressere
PN10 PN12.5 PN16 PN20
Permissible Working Pressure
20℃ 1 15.0 18.9 23.8 30.0
10 13.7 17.3 21.7 27.2
50 12.9 15.9 20.4 25.7
40℃ 1 10.8 13.6 17.1 21.2
10 9.2 12.4 16.0 20.2
50 9.2 11.5 14.5 18.8

50℃
1 9.2 10.8 14.5 18.3
10 8.2 10.5 13.1 16.5
50 7.7 9.8 12.2 15.4
60℃ 1 / / 12.2 15.4
10 / / 11.0 13.8
50 / / 10.1 12.7
75℃ 1 / / 9.9 12.3
10 / / 7.5 9.3
25 / / 6.1 7.5

SDR=Standard Dimension Ratio(diameter/wall thickness)
SDR=d/s(S=Pope series index from ISO 4065)
