Brass Ball Valve

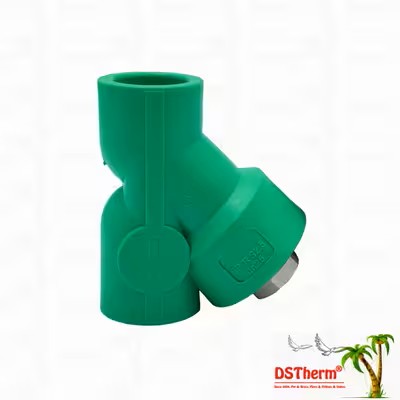

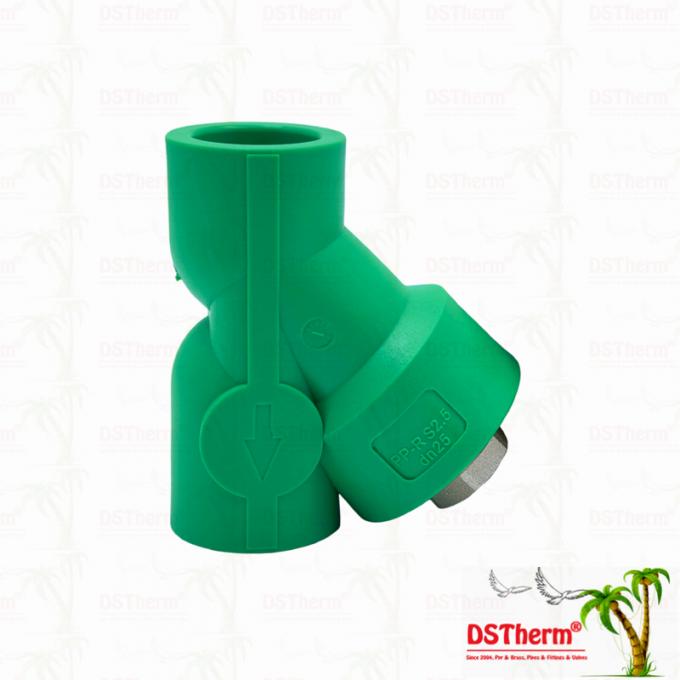

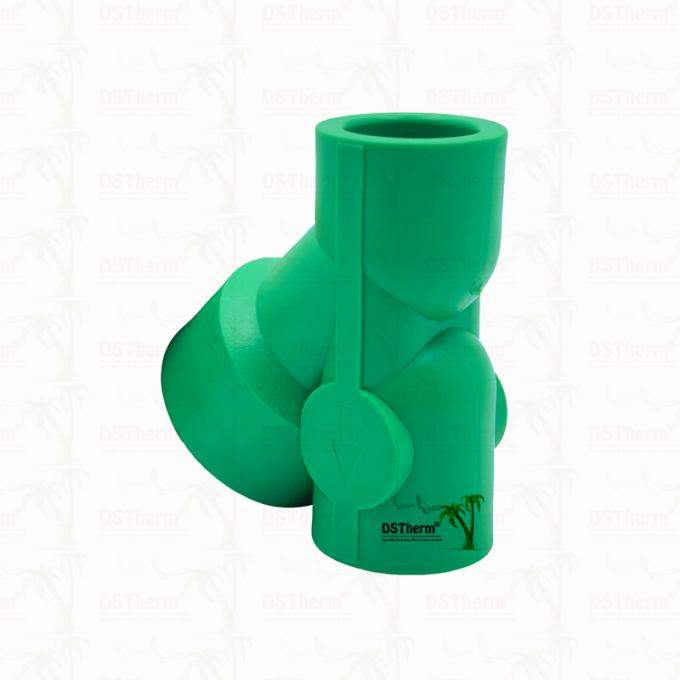

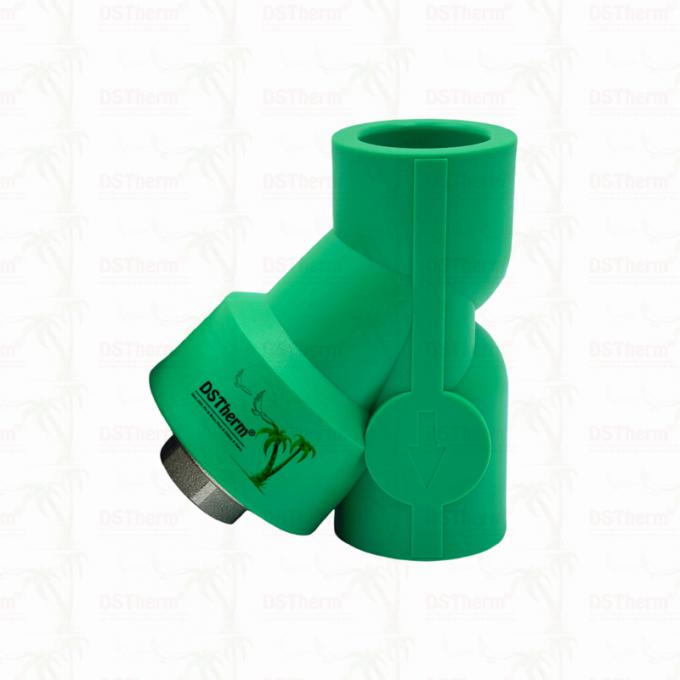

PPR Strainer Valve PN25 Compact Y-Shape Filter Valve 20–32mm for Water Systems

Place of Origin: ZHEJIANG,CHINA
Brand Name: DSTHERM/OEM/ODM
Certification: ISO 9001
Model Number: 20-32mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

Payment & Shipping Terms:

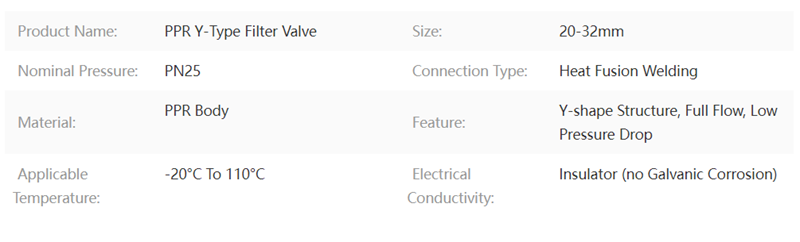

Product Name	PPR Y-Type Filter Valve
Size	20-32MM
Material	Body: PPR; Screen: Stainless Steel 304
Nominal Pressure	PN25
Applicable Media	Water
Applicable Temperature	-20°C to 110°C
Connection Type	Heat fusion welding
Design Features	Y‑shape structure, full flow, low pressure drop

PPR Strainer Valve PN25 Compact Y-Shape Filter Valve 20–32mm for Water Systems 0

Product Features

Material – Valve body made of PPR, filter screen made of stainless steel 304.
Pressure rating – PN25– higher than common brass filter valve.
Size range – 20-32mm, cutomizable.
Temperature range – -20°C to 110°C, suitable for both cold and hot water.
Connection – Fusion socket welding (heat fusion) – no leakage.
Hygienic – Non‑toxic, odourless, meets drinking water standards (GB/T 17219).
Corrosion resistance – Excellent resistance to scale, rust, and most chemicals.
Low flow resistance – Y‑shape design with smooth inner wall.

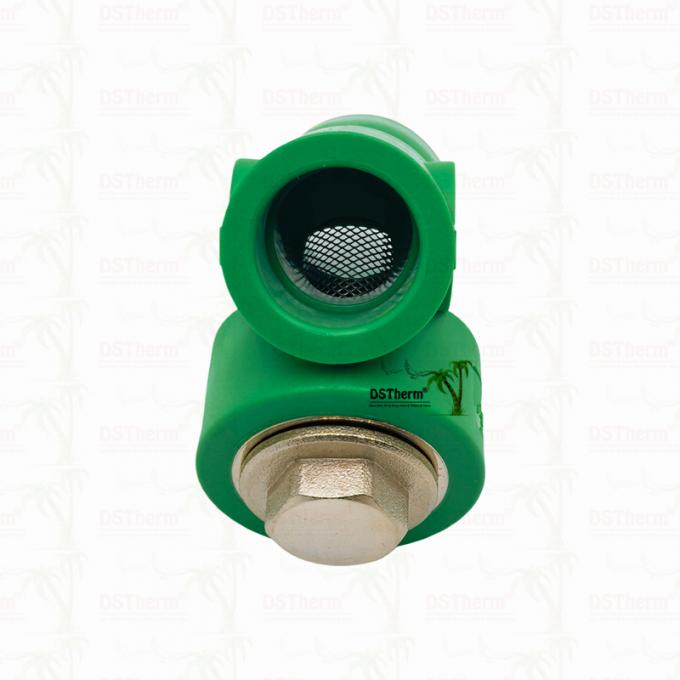

Easy maintenance – Removable screen accessed via bottom cap.

Differences – PPR vs. Brass Y-Type Filter Valve

Aspect	PPR Filter Valve	Brass Filter Valve
Body Material	PPR (Polypropylene)	Brass (HPb59‑1/CW617N)
Pressure Rating	PN25	PN16 typical
Temperature Range	-20°C ~ 110°C	-20°C ~ 120°C
Corrosion Resistance	Excellent (immune to rust & scale)	Good (may dezincify in aggressive water)
Hygienic / Drinking Water	Yes, fully compliant	Requires lead‑free brass for potable water
Connection Method	Heat fusion welding (leak‑free)	Threaded (BSPT / NPT) – needs sealant
Installation	Requires special fusion tool	Simple wrench tightening
UV Resistance	Poor (must be installed indoors or protected)	Excellent (suitable for outdoor use)
Mechanical Strength	Good but less impact‑resistant	High, withstands vibration & external forces
Weight	Light	Heavy
Cost	Lower	Higher
Electrical Conductivity	Insulator (no galvanic corrosion)	Conductor (may cause galvanic issues)
