Home | PPR Stop Valve

PPR Stop Valve

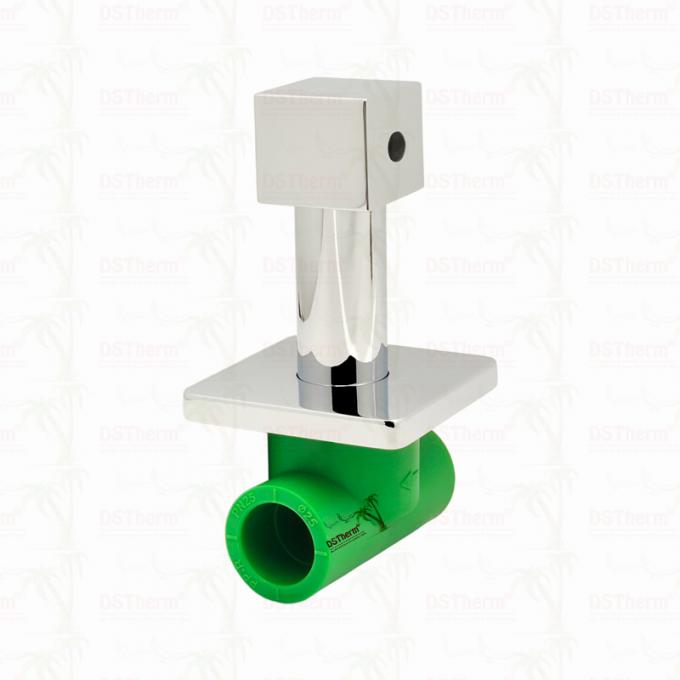

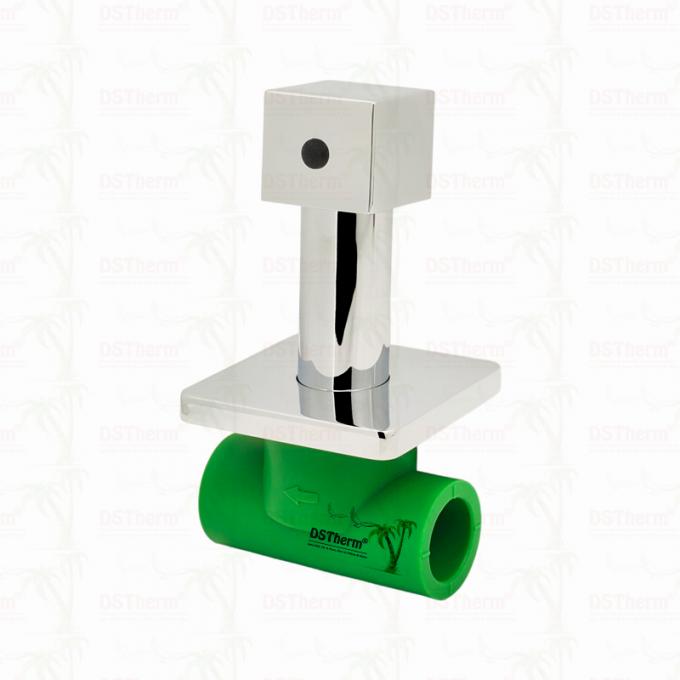

PPR Chrome Plated Stop Valve With Cube Handle Global Vlave 20-32mm

Place of Origin: Zhejiang China
Brand Name: DSTHERM/Customized Logo
Certification: ISO 15784 /DIN/CW617N
Model Number: 20-32mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

Payment & Shipping Terms:

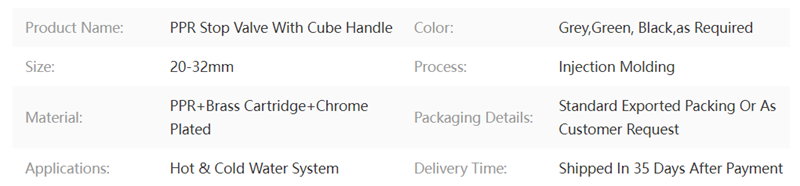

Specification

PPR Stop Valve With Brass Cartridge	Size
	20mm
	25mm
	32mm

We have Stop Valve with specifications ranging from 20mm to 32mm. You can also customize different specifications, color and materials.

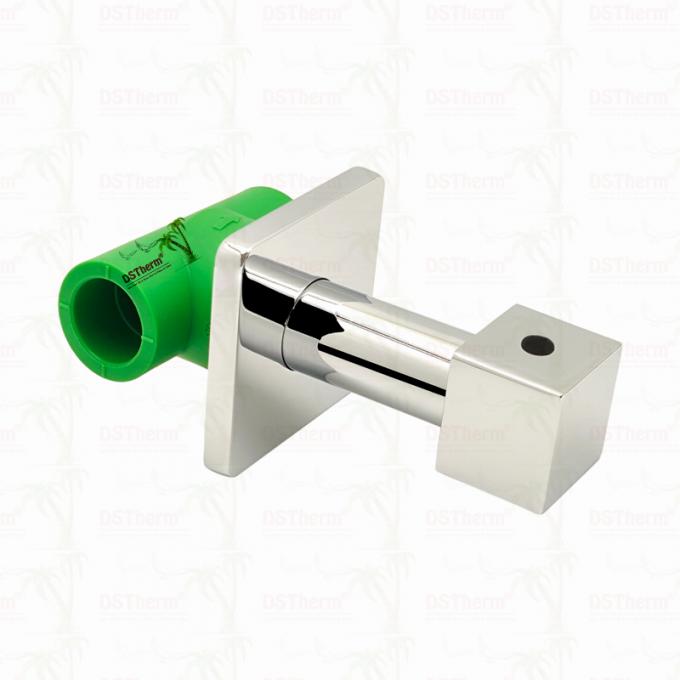

PPR Chrome Plated Stop Valve With Cube Handle Global Vlave 20-32mm

Main Components of a Stop Valve

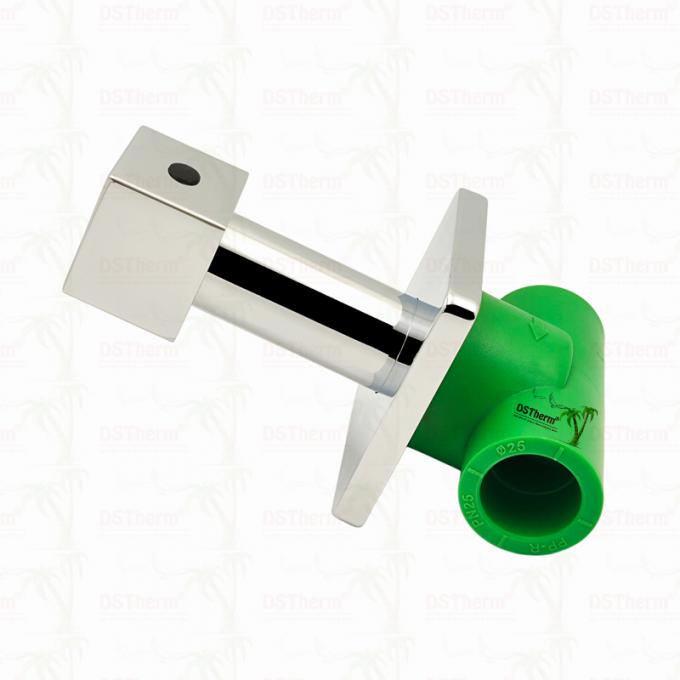

PPR Chrome Plated Stop Valve With Cube Handle Global Vlave 20-32mm

Stop Valve vs. Gate Valve – Comparison

	Stop Valve	Gate Valve
Main Function	Shut-off and throttling / regulating	Primarily for full open or full close, not for throttling
Flow Path Shape	Tortuous, S-shaped flow path	Straight, unobstructed flow passage
Flow Resistance	High (large pressure drop)	Low (small pressure drop)
Installation Direction	Directional (media must enter from below and exit above)	Non-directional (can be installed in either flow direction)
Appearance	Longer in length and shorter in height for same nominal size	Shorter in length and taller in height for same nominal size
Applicable Size	Mainly used for small bore sizes (e.g., DN ≤ 50 mm)	Commonly used for large bore sizes (e.g., DN ≥ 50 mm)

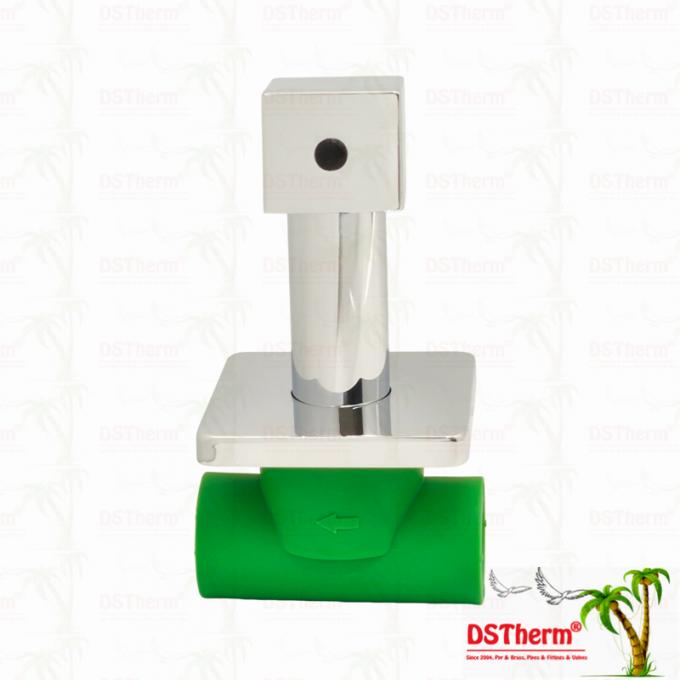

PPR Chrome Plated Stop Valve With Cube Handle Global Vlave 20-32mm

Applications

Residential and commercial cold and hot water supply systems (e.g., kitchens, bathrooms, branch lines for local shut‑off).
Heating systems – radiators, floor heating, and central heating branch circuits (suitable for temperatures up to 70–95 °C).
Solar water heaters and heat pump water heaters – for hot water circulation control.
Air‑conditioning – chilled water and hot water piping in HVAC systems.
Industrial and agricultural water – general process water, cooling water, and irrigation lines, especially where corrosion resistance is needed.
Compressed air (oil‑free) and certain non‑aggressive fluid services.
