Home | PP-RCT Pipes

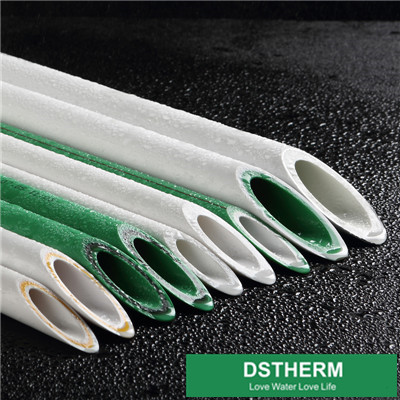

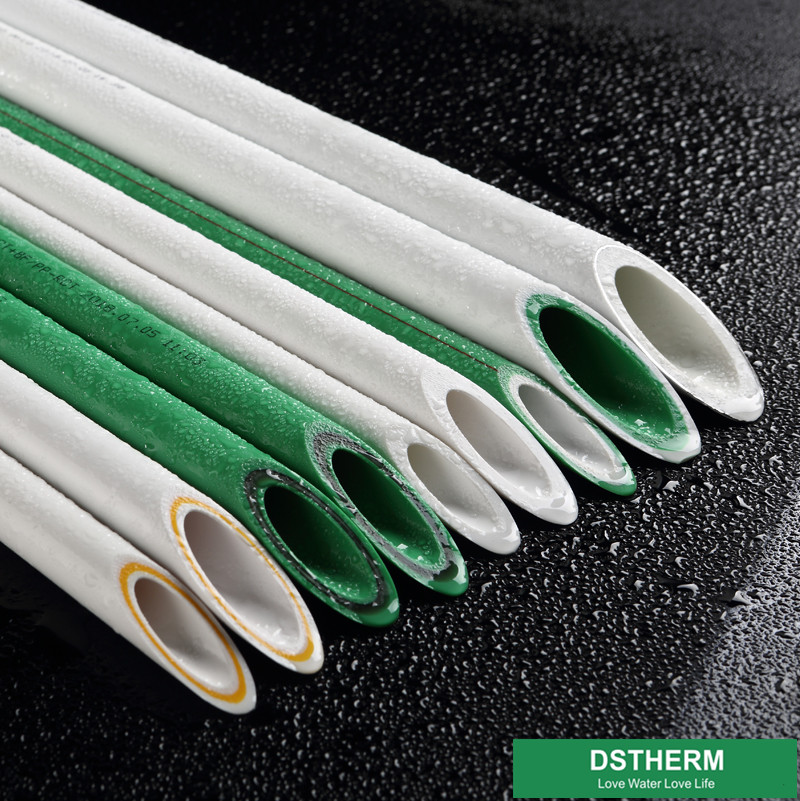

PP-RCT Pipes
PP-RCT Pipes
- Korea Hysong R200P Raw Material
- Sizes: 20mm-160mm
- Dstherm & OEM Brand
- DIN9077/8078, ISO15874 Standard
- Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve
PP-RCT Pipe High Flow High Temperature Resistant Water Supplying Ppr Pipe
Description| Material: | PP-R, PPR(100% Imported Ppr Material) | Color: | White,Green,Grey |
|---|---|---|---|
| Size: | 20-160mm | Technics: | Forged |
| Shape: | Equal | Installation: | Welding, Fusion, Heat Welder |
| Service Life: | More Than 50 Years | ||
| High Light: |
Polypropylene Plastic PP RCT Pipe,High Temperature Resistant Ppr Pipe,Forged PP RCT Pipe |
||
New Hot Cheapest 100% Premium Custom Logo PPR Plastic Water Pipe
Product Introduction
Our PPR pipes are made of the highest quality PPR material, which is tested under extreme conditions & conforms to global quality standards for quality; our PPR pipes are reliable and designed to give levels of performance in the face of the harshest of elements. Conforming to world-class standards of quality, they are extremely reliable & offer convenient & reliable installation in any plumbing system.
Product Advantages
1.High Temperature Resistance
2.Heat Preservation
3.Heat Preservation
4.Corrosion Resistant
5.Lower Installation Costs
Characteristics of the PP-R Pipes;
- Operating life for 20 C temperature and 25 atm pressure conditions is 50 years.
- They have high resistance to chemical substances.
- They are resistant to corrosion.
- They do not cause calcification or oxidation.
- They do not affect the color, smell or taste of water.
- They are composed of smooth and shiny inner surface.
- No diameter narrowing occurs at welding points.
- They show high welding performance.
- They provide heat and sound installation.
- They are hardly flammable. (Ref: DIN 19560 and DIN 4102)
- They are environment friendly.
| Outer Diameter(mm) | Thickness(mm) | |||
| S5 | s4 | S3.2 | S2.5(customized) | |
| 20+0.3 | 2.0+0.3 | 2.3+0.4 | 2.8+0.4 | 3.4+0.5 |
| 25+0.3 | 2.3+0.4 | 2.8+0.4 | 3.5+0.5 | 4.2+0.6 |
| 32+0.3 | 2.9+0.4 | 3.6+0.5 | 4.4+0.6 | 5.4+0.7 |
| 40+0.3 | 3.7+0.5 | 4.5+0.6 | 5.5+0.7 | 6.7+0.8 |
| 50+0.3 | 4.6+0.6 | 5.6+0.7 | 6.9+0.8 | 8.3+1.0 |
| 63+0.3 | 5.8+0.7 | 7.1+0.9 | 8.6+1.0 | 10.5+1.2 |
| 75+0.3 | 6.8+0.8 | 8.4+1.0 | 10.3+1.2 | 12.5+1.4 |
| 90+0.3 | 8.2+1.0 | 10.1+1.2 | 12.3+1.4 | 15.0+1.6 |
| 110+0.3 | 10.0+1.0 | 12.3+1.4 | 15.1+1.7 | 18.3+2.0 |
| 125+0.3 | 11.4+1.3 | 14.0+1.5 | 17.1+1.9 | 20.8+2.2 |
| 140+0.3 | 12.7+1.4 | 15.7+1.7 | 19.2+2.1 | 23.3+2.5 |
| 160+0.3 | 14.6+1.6 | 17.9+1.9 | 21.9+2.3 | 26.6+2.8 |
