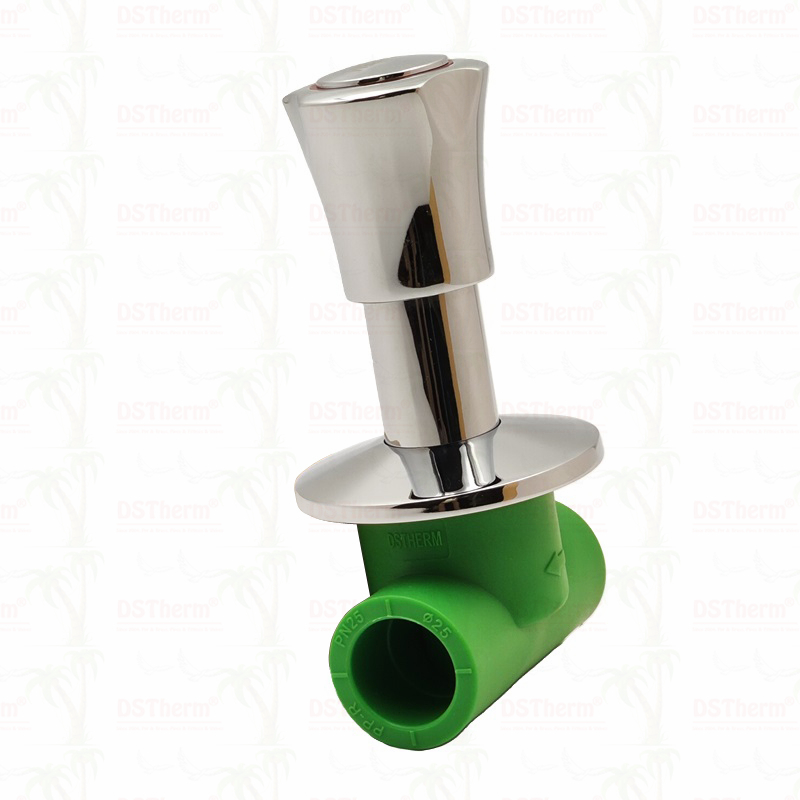

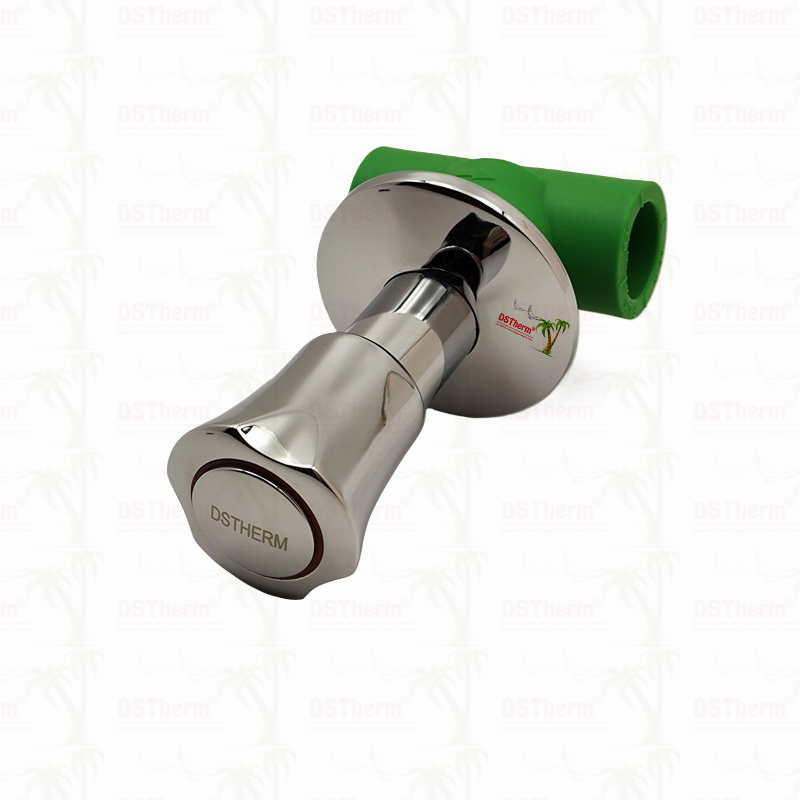

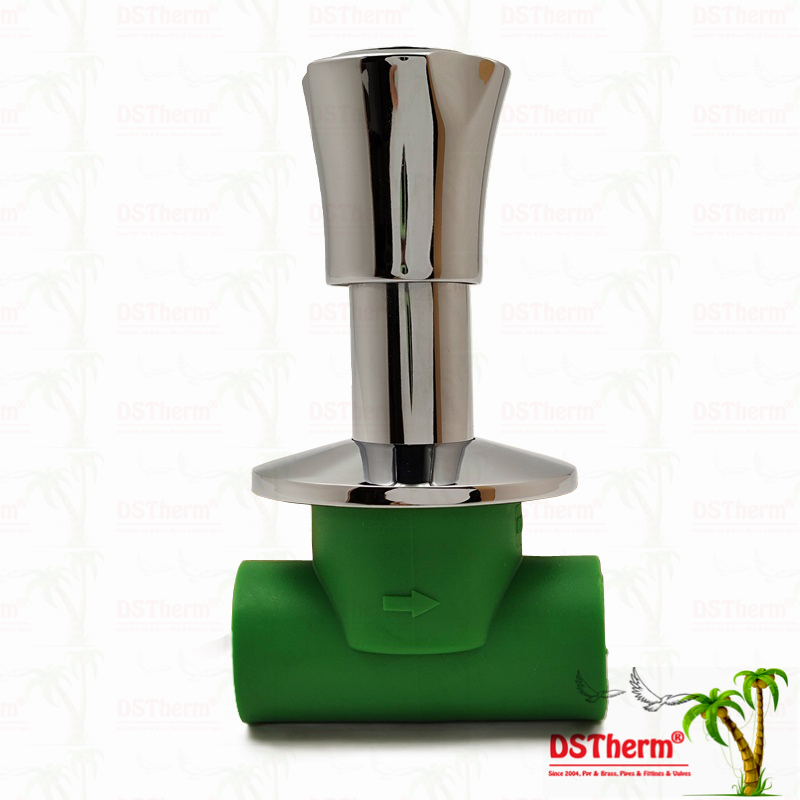

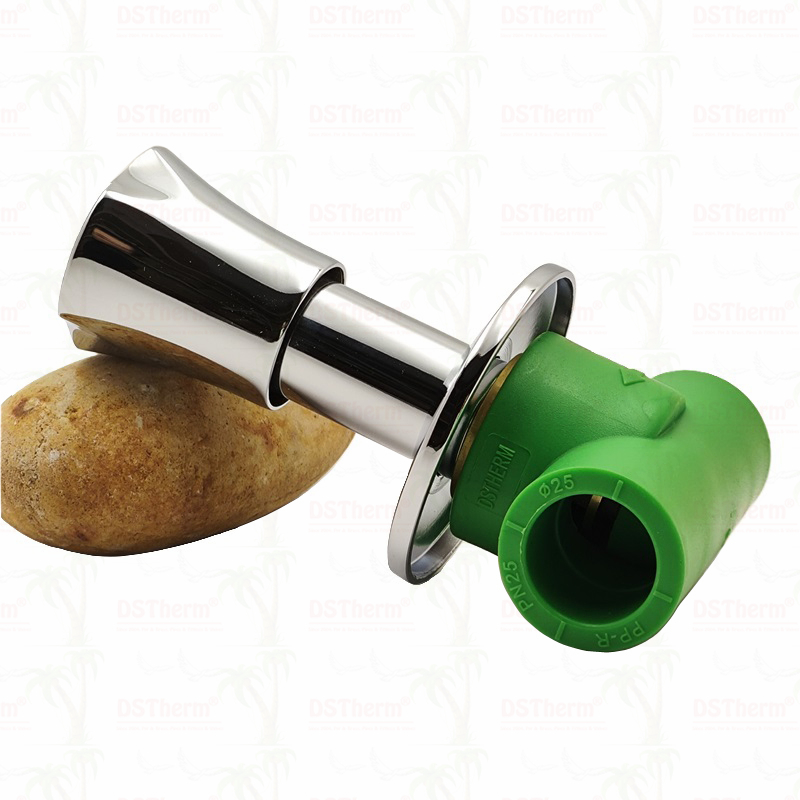

PN25 PPR Stop Valve 20-40mm Chrome Plated with Anti-Slip Handle

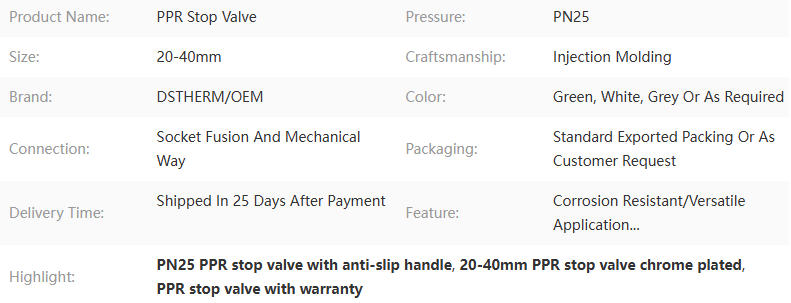

Specification

Working Principle

1.Vertical Disc Movement

• Rotating the handle/actuator lowers or raises the valve stem.
• The disc (plug) attached to the stem moves perpendicular to the flow direction.

         Open state: Disc lifts → fluid flows around it.

         Closed state: Disc presses down → seals tightly against the seat ring.

2.Sealing Action

• Disc and seat create metal-to-metal (or soft-seated) contact.
• Force applied by the stem compresses the disc → blocks flow completely.

3.Flow Path Design

• Fluid enters → hits an internal baffle → changes direction twice (typically S-shaped path).
• Causes turbulence and pressure drop → enables flow control but reduces efficiency.

Features:

1.Versatile Sizing

Standard sizes: 20-40 mm

Custom dimensions available upon request.

2.Robust Pressure Rating

PN25 (25 bar pressure rating) for reliable performance in medium-pressure systems.

3.Hybrid Material Construction

PPR Base: Corrosion-resistant, lightweight, and ideal for chemical/water applications.

Brass Valve Core: Ensures precise sealing and mechanical durability.

Chrome-Plated Exterior: Enhanced aesthetics and surface protection.

4.Global Compliance

Conforms to ISO/DIN international standards for quality and safety.

5.Customization Options

Colors, sizes, and other specifications can be tailored to project needs.

Applications

1.Flow Regulation

Throttling Control: Precisely adjust flow/pressure (e.g., HVAC balancing, pressure reduction stations).

Process Optimization: Manage fluid rates in industrial processes (chemical dosing, boiler feedwater).

2.High-Pressure/Temperature Services

Steam Pipelines: Reliable shutoff in boilers, steam traps, and distribution headers (PN25+ rating).

Hot Oil/Gas Systems: Brass/PPR construction resists corrosion in thermal fluid circuits.

3.Corrosive/Sanitary Environments

Chemical Transport: PPR body withstands acids/alkalis; chrome plating adds protection.

Potable Water: Compliant for drinking water systems (smooth PPR surface prevents contamination).

Why Choose DSTHERM’s Stop Valve?

1. Leak-Proof Sealing – Enhanced PTFE or rubber seals for reliable shut-off.

2. High Temperature/Pressure Resistance – Compatible with residential and commercial plumbing systems.

3. Low Maintenance – Ppr material resists scaling and corrosion for long-term use.

4. Versatile Application – Ideal for water, non-aggressive fluids, and HVAC installations.

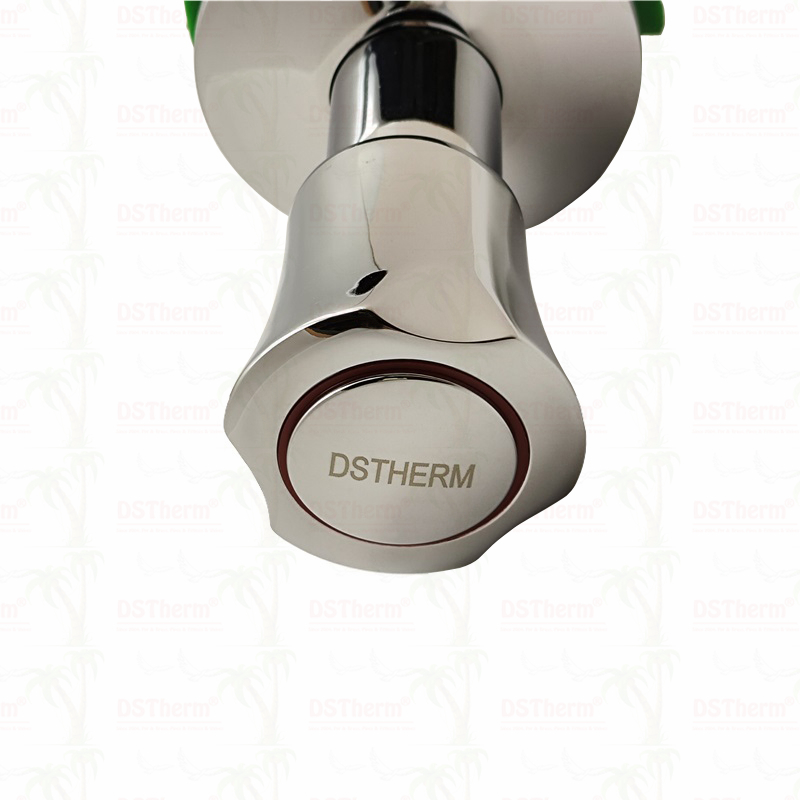

5. User-Friendly Operation – Anti-slip handle ensures precise control even in wet conditions.

(Combines durability, aesthetics, and functionality for modern plumbing needs.)

Our advantages

1). Over 20 Years' Experience in production

2). Accept OEM Order

3). ISO9001 approved

4). We use All New raw material in products

5). Sufficient products with complete specifications for your choice

We will be your better choice!
