Brass Ball Valve
Lockable Brass Female Ball Lock Valve With Key Female And Male
- Place of Origin:Zhejiang China
- Brand Name:DSTHERM/OEM/CUSTOMIZED
- Certification:ISO9001,CE
- Model Number:1/2'-1'
- Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball

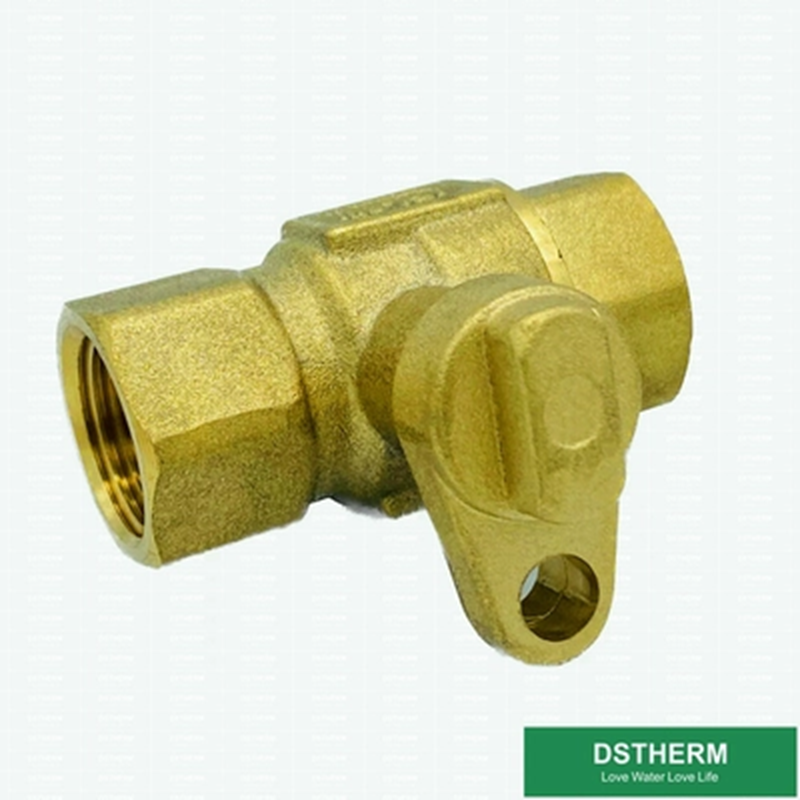

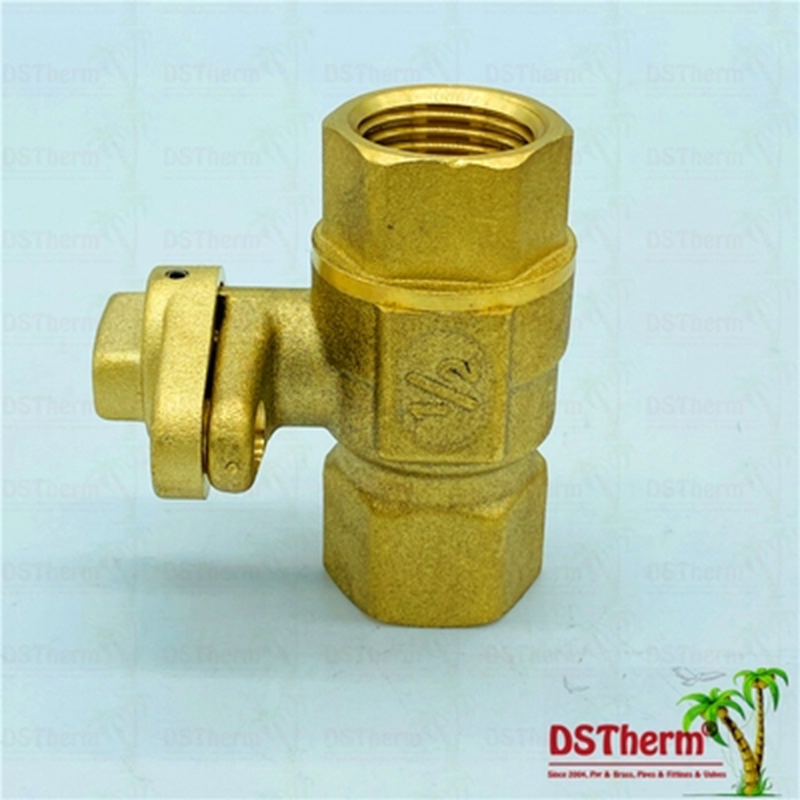

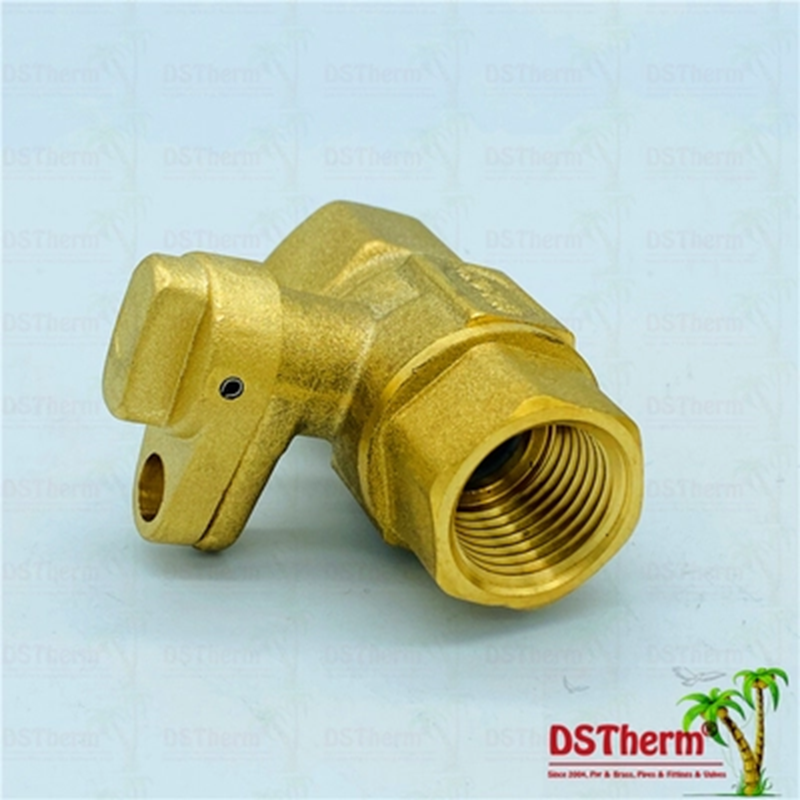

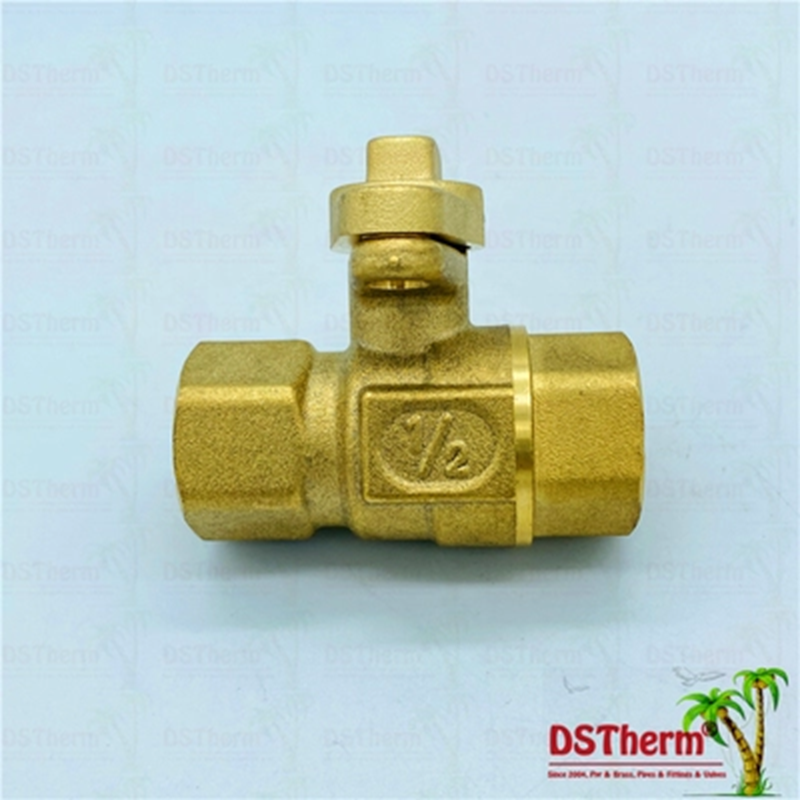

Lockable Brass Female Ball Lock Valve With Key Female And Male
Payment & Shipping Terms
Description
|
|
|||
Ball Valve Lockable Brass Female Ball Valve Lock Valve With Key Female And Male Lock Valve
Double Female Lockable Brass Ball Valve With Brass Ball
Body: Brass
Ball: Brass
Handle: Brass
OEM: Accepted
MOQ: Negotiable
What is Brass Ball Valve used for?
Common applications of brass ball valves are used in food, chemical, and oil and gas processing, and in conveying gaseous fluids. It is also safe to use in the delivery of potable drinking water.
What is Union Brass Ball Valve used for?
Union Brass Ball Valve have wide range usage. The connection solution is more flexible to connect with fittings and valves. It is also used in food, chemical, and oil and gas processing, and in conveying gaseous fluids. It is also safe to use in the delivery of potable drinking water.
Ball Valve
| Material | Brass Body, Brass Bonnet, Chromed brass ball, iron handle |
| Surface | Natural brass or Nickel plated |
| Size | 1/2"3/4"1"11/4"11/2"2"21/2"3"4" |
| Samples Time |
1) 2 days - For our existing samples for reference 2) 30 days - If new size, need make the new mould |
| OEM Acceptable | Yes |
| Service | 7*24 Hours |
| Packing Details | Poly bag, inner box, out carton( pallet) |
| Payment Term | T/T, L/C, WESTERN UNION |
| Delivery Time | 35-40 days after confirming the order |
| Minimum Order Quantity |
2000-3000 Pieces |
|
Item: Ball Valve Size: 1/4" - 4" Brass material: 59-3 Connection Type: Female BSP x Female BSP Handle Material: IRON / AL Handle Type: Lever Stem Type: Blowout Proof Stem Material: Brass Seat Material: PTFE Body Seal Material: PTFE |
Ball Material: Chrome Plated Brass Valve Basic Body Material: Brass Surface Treatment: Nickel Plating Application: Can be used for oil & petroleum, and water Max. Temp: -20°C to+120°C Working Pressure: 25bar/362.5psi Port: All Features: Full Port for Maximum Flow Rate Standards: EN13828 |
Advantages
1) Fast Material Supply.
2) Every valve goes through a six-step QC process before delivery.
Material Control, Machining Quality Control, In-coming Material Inspection, Assembly Line Quality Control, Leakage Testing, Final Inspection Before Delivery.
3) 100% Leakage Test.
4) Strictly and perfect management in production.
5) Guarantee Quality In Competitive Price.
6) On-time Delivery.
7) Complete R&D facilities and Excellent team.
8) Annual R&D projects reach the number of 100.
9) Have rich experience and strong ability to develop new products.
QC:
· We promise to supply you high quality and durable goods for you.
· Our worker will check every accessory before hand-assembled.
· Our quality inspector will check every product one by one before packing.
· Regular checking on line from production in each workshop
Production step :
1) purchasing the material and forged the semi-products .
2) processing the semi-products in workshop .
3) assembling the goods .
4) testing the sealing in pressure and checking quality of the goods
5) package
6) deliveing the goods on time .
Package:
1) the package standard : standart export carton, box .
2) if customer has special requirement. it is available to provide the colorful package against the design of customer.
