PPR Aluminum Pipe

Light Weight Aluminum Plastic Pipe Perforated Aluminium Composite Pipe For Water Supplying

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO9001
Model Number:20-160mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

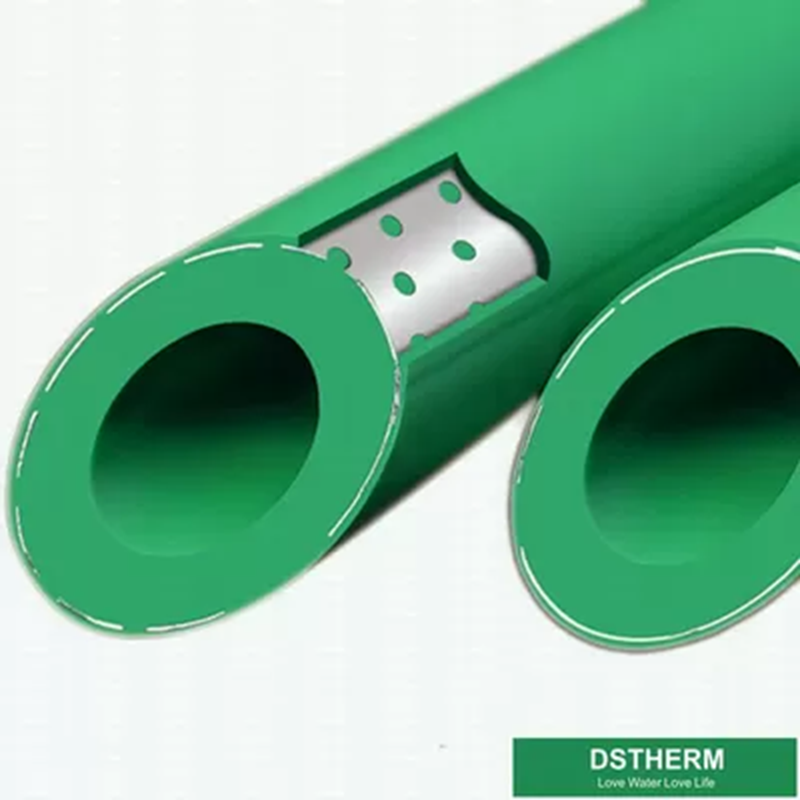

Light Weight Aluminum Plastic Pipe Perforated Aluminium Composite Pipe For Water Supplying

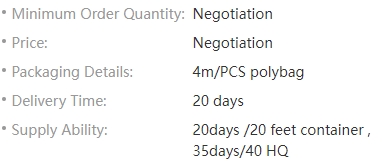

Payment & Shipping Terms

Description

Light Weight Aluminum Plastic Pipe Perforated Aluminium Composite Pipe For Water Supplying 0

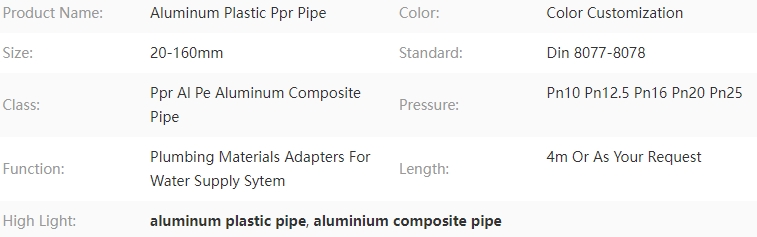

Aluminum plastic ppr pipe ISO9001 DIN8077/8078 Material Polypropylene Color customization 20-160mm

Product: PP-R Aluminum Composite pipe
Material: 100% PPR
Size: 16-160mm
Certificate: ISO9001
Standard: ISO15874; DIN8077/8078
Working place: -40°-95°

Series SDR9/S4/PN16
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter	Overall Wall Thickness	Overall Outer Diameter
20mm	20.0	2.3	15.4	3.4	21.9
25mm	25.0	2.8	19.4	4.0	27.1
32mm	32.0	3.6	24.8	4.8	34.1
40mm	40.0	4.5	31.0	5.8	42.3
50mm	50.0	5.6	38.8	6.9	52.3
63mm	63.0	7.1	48.8	8.4	65.3
75mm	75.0	8.4	58.3	9.6	77.8
90mm	90.0	10.1	70.0	11.5	93.3
110mm	110.0	13.7	85.8	13.7	114.0

Series SDR7.4/S3.2/PN20
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter	Overall Wall Thickness	Overall Outer Diameter
20mm	20.0	2.8	14.4	3.9	21.9
25mm	25.0	3.5	18.0	4.7	27.1
32mm	32.0	4.5	23.0	5.7	34.1
40mm	40.0	5.6	28.8	6.8	42.3
50mm	50.0	6.9	36.2	8.2	52.3
63mm	63.0	8.6	45.6	10.0	65.3
75mm	75.0	10.3	54.4	11.5	77.8
90mm	90.0	12.3	65.4	13.7	93.3
110mm	110.0	15.1	79.9	16.6	114.0

Series SDR6/S2.5/PN25
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter	Overall Wall Thickness	Overall Outer Diameter
20mm	20.0	3.4	13.2	4.5	21.9
25mm	25.0	4.2	16.6	5.4	27.1
32mm	32.0	5.4	21.2	6.7	34.1
40mm	40.0	6.7	26.6	8.0	42.3
50mm	50.0	8.3	33.2	9.6	52.3
63mm	63.0	10.5	42.0	11.8	65.3
75mm	75.0	12.5	49.8	13.8	77.8
90mm	90.0	15.0	59.8	16.4	93.3
110mm	110.0	18.3	73.2	19.8	114.0

Application:

1. Hot water and cold water pipe for production and domestic use .

2. Heating pipe , pipe used for heating installation on floor and wall , snow melting devices for building

3. Pipe used for solar energy water heater

4. Coal gas and natural gas pipe

5. Drinking water within a cetin district, pipe used for reclaimed water project

6. Pipe used for central air conditioner, fan coil

7. Industrial pipes used for oil transportation and cooling fluid

8. Pipes used for sleeve of wire or cable.

9. Pipe used for irrigation project in agriculture or garden.

Advantages
1. Light weight, convenient to transport and handle
2. High strength
3. Less resistance
4. Corrosion resistance
5. No pipe furring
6. Sound insulation
7. Easy to install
8. Long lifespan
9. Low cost
10. Long usage life of at least 50 years
