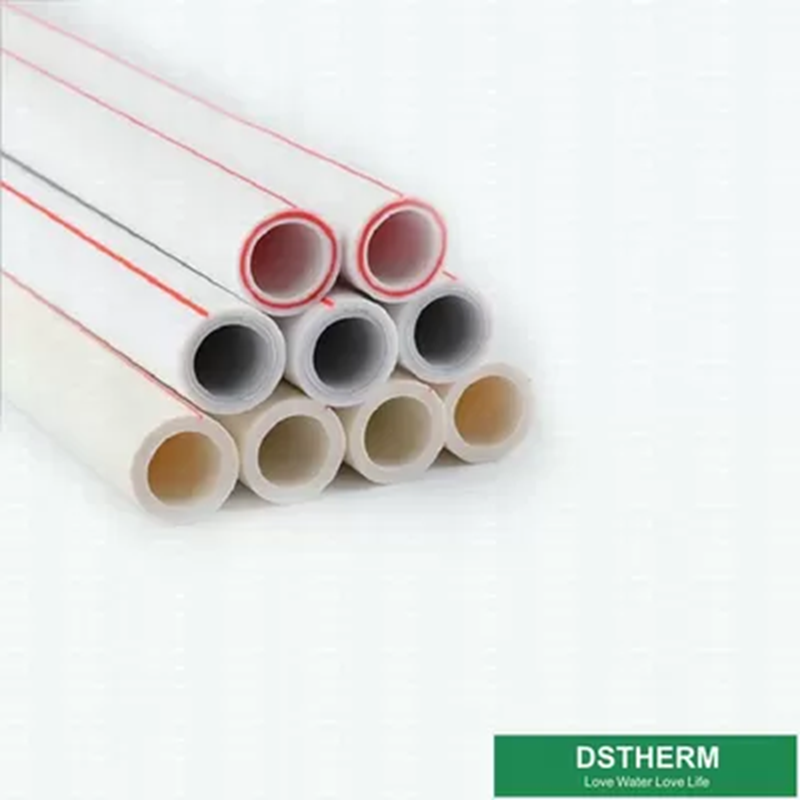

PPR Aluminum Pipe
Hot Water Supply PPR Aluminum Pipe High Pressure High Strength Sound Insulation
- Place of Origin:Zhejiang China
- Brand Name:DSTHERM
- Certification:ISO9001
- Model Number:20-160mm
- Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball

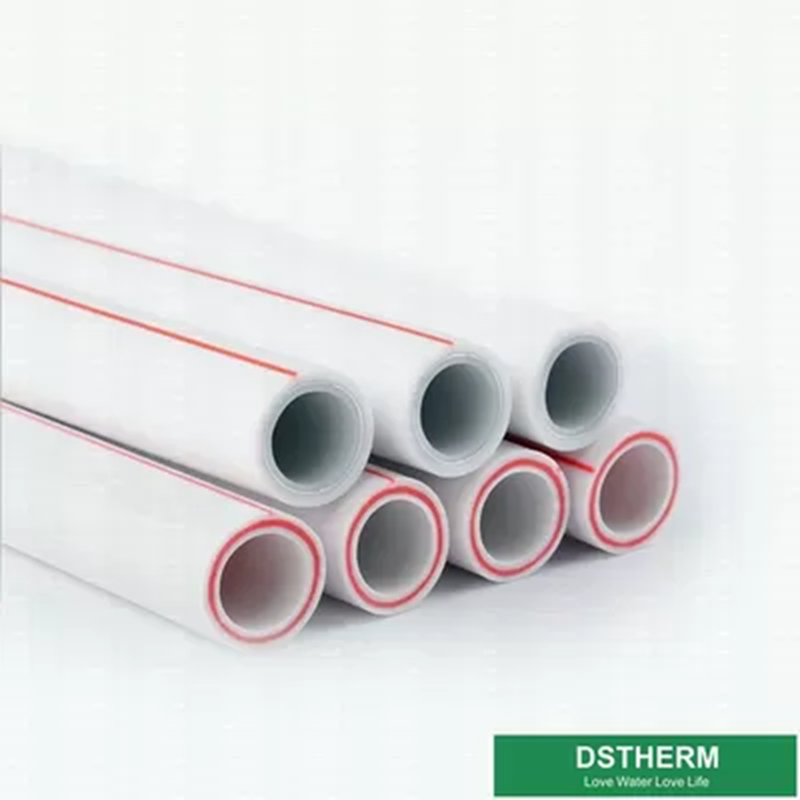

Hot Water Supply PPR Aluminum Pipe High Pressure High Strength Sound Insulation

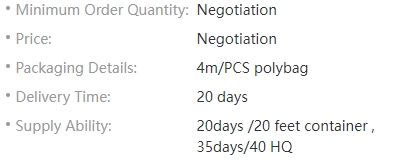

Payment & Shipping Terms

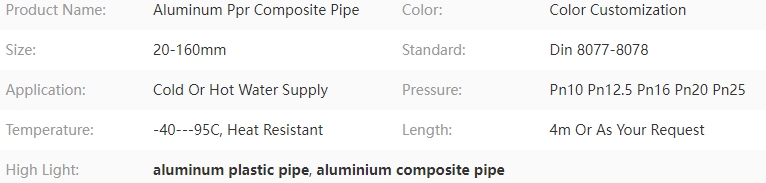

Aluminum Ppr Composite Pipe ISO9001 DIN8077/8078 Material Polypropylene Color customization 20-160mm
Product: PP-R Aluminum Composite pipe
Material: 100% PPR
Size: 16-160mm
Certificate:ISO9001
Standard: ISO15874; DIN8077/8078
Working place: -40°-95°
| Series SDR9/S4/PN16 | |||||
|
Nominal Outer Diameter |
Diameter | Wall Thickness | Inner Diameter |
Overall Wall Thickness |
Overall Outer Diameter |
| 20mm | 20.0 | 2.3 | 15.4 | 3.4 | 21.9 |
| 25mm | 25.0 | 2.8 | 19.4 | 4.0 | 27.1 |
| 32mm | 32.0 | 3.6 | 24.8 | 4.8 | 34.1 |
| 40mm | 40.0 | 4.5 | 31.0 | 5.8 | 42.3 |
| 50mm | 50.0 | 5.6 | 38.8 | 6.9 | 52.3 |
| 63mm | 63.0 | 7.1 | 48.8 | 8.4 | 65.3 |
| 75mm | 75.0 | 8.4 | 58.3 | 9.6 | 77.8 |
| 90mm | 90.0 | 10.1 | 70.0 | 11.5 | 93.3 |
| 110mm | 110.0 | 13.7 | 85.8 | 13.7 | 114.0 |
| Series SDR7.4/S3.2/PN20 | |||||
|
Nominal Outer Diameter |
Diameter | Wall Thickness | Inner Diameter |
Overall Wall Thickness |
Overall Outer Diameter |
| 20mm | 20.0 | 2.8 | 14.4 | 3.9 | 21.9 |
| 25mm | 25.0 | 3.5 | 18.0 | 4.7 | 27.1 |
| 32mm | 32.0 | 4.5 | 23.0 | 5.7 | 34.1 |
| 40mm | 40.0 | 5.6 | 28.8 | 6.8 | 42.3 |
| 50mm | 50.0 | 6.9 | 36.2 | 8.2 | 52.3 |
| 63mm | 63.0 | 8.6 | 45.6 | 10.0 | 65.3 |
| 75mm | 75.0 | 10.3 | 54.4 | 11.5 | 77.8 |
| 90mm | 90.0 | 12.3 | 65.4 | 13.7 | 93.3 |
| 110mm | 110.0 | 15.1 | 79.9 | 16.6 | 114.0 |
| Series SDR6/S2.5/PN25 | |||||
|
Nominal Outer Diameter |
Diameter | Wall Thickness | Inner Diameter |
Overall Wall Thickness |
Overall Outer Diameter |
| 20mm | 20.0 | 3.4 | 13.2 | 4.5 | 21.9 |
| 25mm | 25.0 | 4.2 | 16.6 | 5.4 | 27.1 |
| 32mm | 32.0 | 5.4 | 21.2 | 6.7 | 34.1 |
| 40mm | 40.0 | 6.7 | 26.6 | 8.0 | 42.3 |
| 50mm | 50.0 | 8.3 | 33.2 | 9.6 | 52.3 |
| 63mm | 63.0 | 10.5 | 42.0 | 11.8 | 65.3 |
| 75mm | 75.0 | 12.5 | 49.8 | 13.8 | 77.8 |
| 90mm | 90.0 | 15.0 | 59.8 | 16.4 | 93.3 |
| 110mm | 110.0 | 18.3 | 73.2 | 19.8 | 114.0 |
Applications
1. Cold and hot water supply
2. Heating system including flooring heating, wall
3. Heating and radiant system
4. Central air conditioning system
5. Industrial liquids transportation
Advantages
1. Light weight, convenient to transport and handle
2. High strength
3. Less resistance
4. Corrosion resistance
5. No pipe furring
6. Sound insulation
7. Easy to install
8. Long lifespan
9. Low cost
10. Long usage life of at least 50 years
