PEX Tubing

  • Geothermal PEX Pipe 300m / Roll Pressure Resistance For Room Underfloor Heating
  • Geothermal PEX Pipe 300m / Roll Pressure Resistance For Room Underfloor Heating
  • Geothermal PEX Pipe 300m / Roll Pressure Resistance For Room Underfloor Heating
  • Geothermal PEX Pipe 300m / Roll Pressure Resistance For Room Underfloor Heating
Geothermal PEX Pipe 300m / Roll Pressure Resistance For Room Underfloor HeatingGeothermal PEX Pipe 300m / Roll Pressure Resistance For Room Underfloor HeatingGeothermal PEX Pipe 300m / Roll Pressure Resistance For Room Underfloor HeatingGeothermal PEX Pipe 300m / Roll Pressure Resistance For Room Underfloor Heating

Geothermal PEX Pipe 300m / Roll Pressure Resistance For Room Underfloor Heating

  • Place of Origin:Zhejiang China
  • Brand Name:DSTHERM
  • Certification:ISO
  • Model Number:16-32mm
  • Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
  • INQUIRY

Geothermal PEX Pipe 300m / Roll Pressure Resistance For Room Underfloor Heating

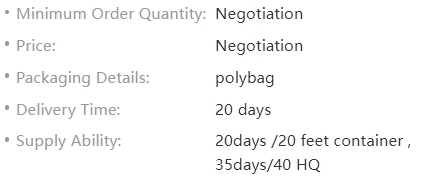

Payment & Shipping Terms

Description

Geothermal PEX Pipe 300m / Roll Pressure Resistance For Room Underfloor Heating 0



PE-RT floor Geothermal pipe color according Specification dn16-32mm Standard: GB,DIN,JIS,BS





The PE-RT pipe inherits good flexibility, heat conductivity, chemical inertness from PE material. Meanwhile the design of special molecule and synthesis production enable it to be higher resistant to heat and pressure under the high temperature condition. It is suitable for home heating and most housing applications.



DN, Nominal Outer Diameter Average Outer Diameter Pipe Series
min max S5 S4 S3.2
Nominal Wall Thickness
16 16 16.3   2.0 2.2
20 20 20.3 2.0 2.3 2.8
25 25 25.3 2.3 2.8 3.5
32 32 32.3 2.9 3.6 4.4



Main Features:



1.Good thermal stability and long-term pressure resistance

2.Flexibility and easy installation

3.Good impact strength and reliability

4.Connect by welding, easy to install and repair

5.Higher cost performance ratio





Application:



hot&cold water distribution, floor heating, residential or industrial plumbin

Brief Introduction of Products



Plastic material pipes are more and more important and popular in room heating, cooling and water service and sanitary distribution system. PE-RT means Temperature-Resistance Polyethylene. PE-RT pipe for heating floor is  produced by Korean SK Corp, and recognized as an ideal floor heating product for its sanitary conditions, favorable standards, and good heat radiation. When the hot water pipes are circling under the floor, the heat will be dispersed through the floor.

It is widely use in hot & cold water distribution, floor heating system. residential or industrial plumbing.



Because high density polyethylene can not bear high temperature which results in its failing to solve indoor hot water supply problem. Therefore, polyethylene of raised temperature resistance (PE-RT) was developed in USA as a new kind of pipeline material able to bear the high temperature. Besides all the advantages of high density polyethylene, it’s well done in resolving problem of hot water supply. PE-RT is copolymer of comonomer based on ethylene-octane. It can control appropriately the number and distribution on the branched chain of polyethylene molecular chain during polymerization, which makes PE-RT material gain excellent physical mechanics performance and higher heat resistant performance without crosslinked. It can be used 50 years or so under the circumstance of transmitted water temperature 70°C(centigrade degree)& the pressure of 0.97MPa.

Geothermal PEX Pipe 300m / Roll Pressure Resistance For Room Underfloor Heating 1



PE-RT physical mechanics performance:



PE-RT materials own excellent physical mechanics performance without crosslinked:



1. Good thermal stability & long-term resistance of pressure



2. Excellent resistance to environmental stress cracking performance



3. Good flexibility and toughness



4. Ability of low- temperature impact resistance



5. Excellent health performance



Production Information
Name PERT Pipe
Size
Color
Grade
Standard
Certification
Impact Strength (%)
Creep Rate
dn16-32mm
Color white transparent, red, orange or as request
Standard GB/T28799, ISO22391, DIN4721, GOST52134
Length 4m/pc, 6m/pc, 100m/roll, 200m/roll or as request



Advantages of PE RT pex pipes and fittings 15mm pex pipe



1. High Temperature Resistance:

PEX pipe's maximum sustained working temperature is up to 70°C , the maximum transient temperature is up to 90°C .



2. Heat Preservation:

PEX pipe's low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.



3. Non-toxic:

no heavy metal additives, our PE RT pex pipes and fittings 15mm pex pipe would not be covered with dirt or contaminated by bacterium.



4. Corrosion Resistance:

resist chemical matters and electron chemical corrosion.



5Low Installation Costs:

light weight and ease of installation can reduce installation costs.



6. Longevity: more than 50 years under proper use.



7. Recycled and Environment-friendly.
