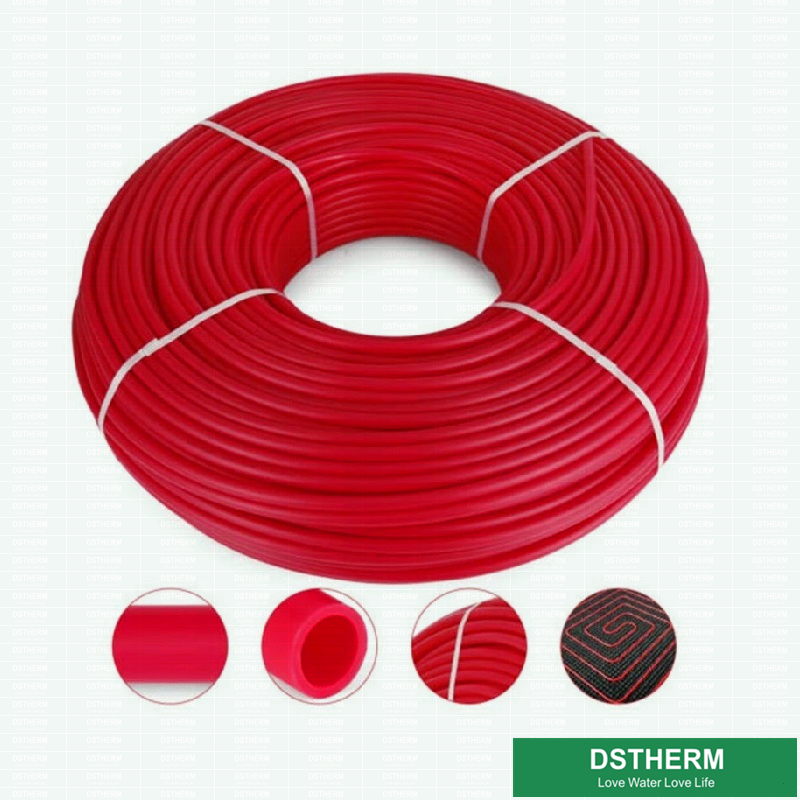

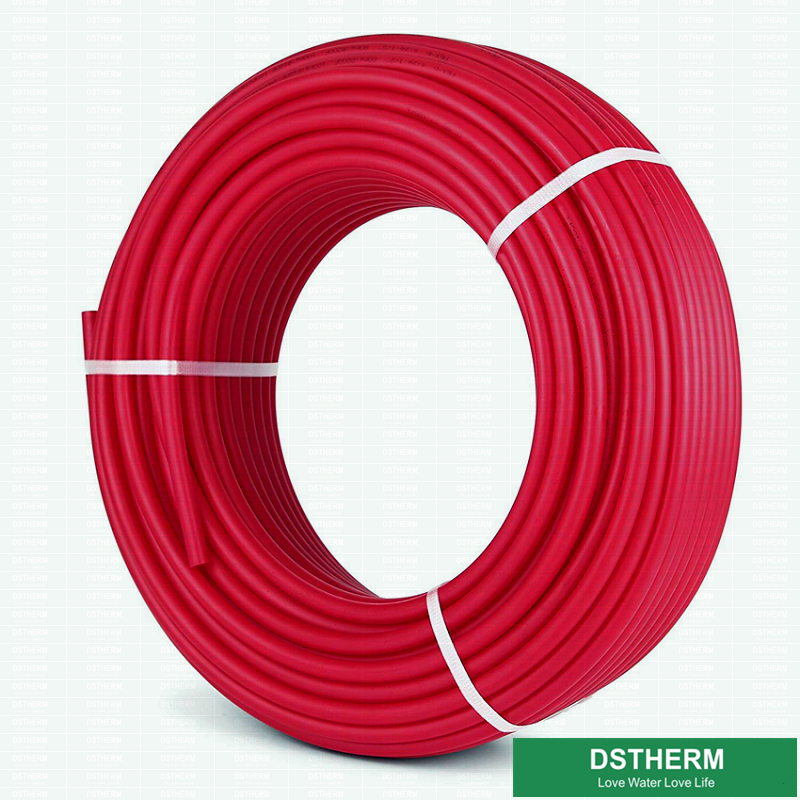

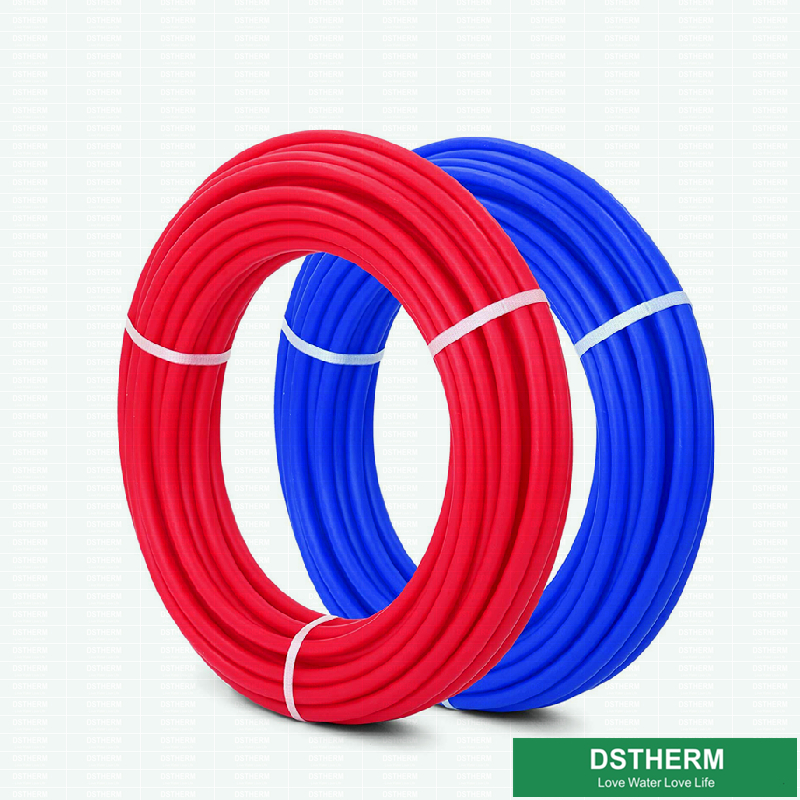

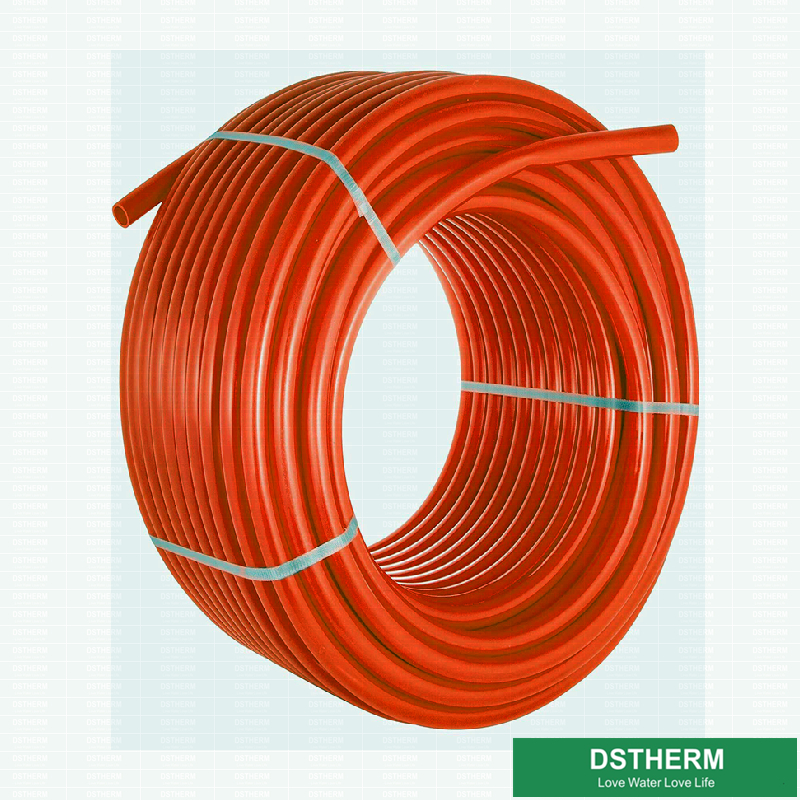

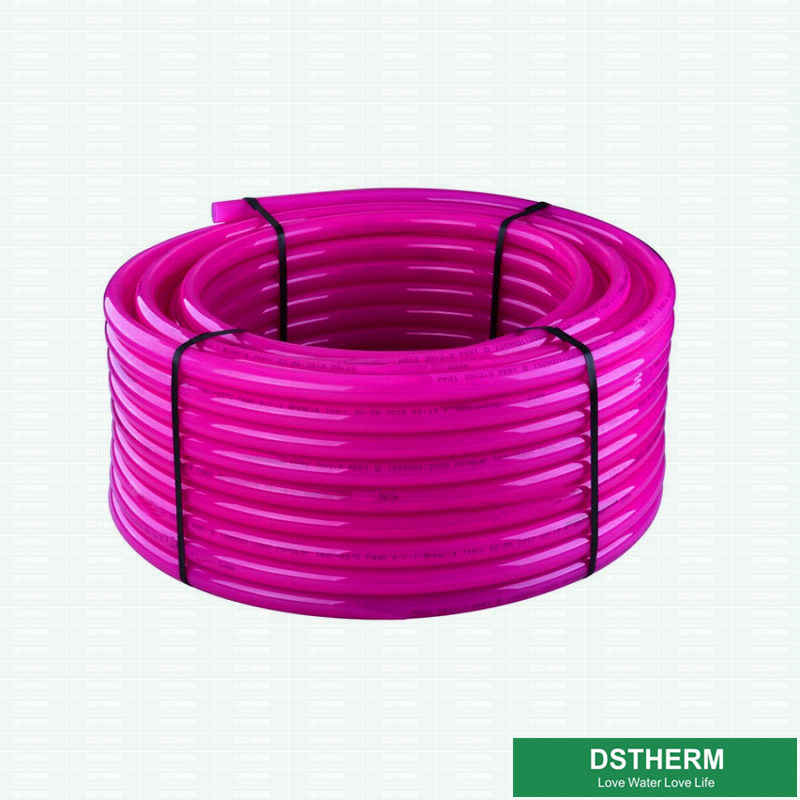

Custom Length Plastic Heating Pipe , Heat Resistant Pipe For Industrial Plumbing

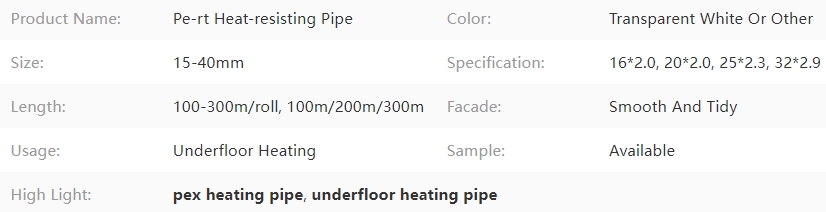

Pe-rt heat-resisting pipe PERT color according Specification dn16-32mm Standard: GB,DIN,JIS,BS

The PE-RT pipe inherits good flexibility, heat conductivity, chemical inertness from PE material. Meanwhile the design of special molecule and synthesis production enable it to be higher resistant to heat and pressure under the high temperature condition. It is suitable for home heating and most housing applications.

Main Features:

1. Good thermal stability and long-term pressure resistance

2. Flexibility and easy installation

3. Good impact strength and reliability

4. Connect by welding, easy to install and repair

5. Higher cost performance ratio

Application:

hot&cold water distribution, floor heating, residential or industrial plumbin

Brief Introduction of Products

Plastic material pipes are more and more important and popular in room heating, cooling and water service and sanitary distribution system. PE-RT means Temperature-Resistance Polyethylene. PE-RT pipe for heating floor is  produced by Korean SK Corp, and recognized as an ideal floor heating product for its sanitary conditions, favorable standards, and good heat radiation. When the hot water pipes are circling under the floor, the heat will be dispersed through the floor.

It is widely use in hot & cold water distribution, floor heating system. residential or industrial plumbing.

Because high density polyethylene can not bear high temperature which results in its failing to solve indoor hot water supply problem. Therefore, polyethylene of raised temperature resistance (PE-RT) was developed in USA as a new kind of pipeline material able to bear the high temperature. Besides all the advantages of high density polyethylene, it’s well done in resolving problem of hot water supply. PE-RT is copolymer of comonomer based on ethylene-octane. It can control appropriately the number and distribution on the branched chain of polyethylene molecular chain during polymerization, which makes PE-RT material gain excellent physical mechanics performance and higher heat resistant performance without crosslinked. It can be used 50 years or so under the circumstance of transmitted water temperature 70°C(centigrade degree)& the pressure of 0.97MPa.

PE-RT physical mechanics performance:

PE-RT materials own excellent physical mechanics performance without crosslinked:

1. Good thermal stability & long-term resistance of pressure

2. Excellent resistance to environmental stress cracking performance

3. Good flexibility and toughness

4. Ability of low-temperature impact resistance

5. Excellent health performance

Advantages of PE RT pex pipes and fittings 15mm pex pipe

1. High Temperature Resistance:

PEX pipe's maximum sustained working temperature is up to 70°C , the maximum transient temperature is up to 90°C .

2. Heat Preservation:

PEX pipe's low thermal conductivity which is only 1/1500 of brass pipe, and 1/250 of steel pipe.

3. Non-toxic:

no heavy metal additives, our PE RT pex pipes and fittings 15mm pex pipe would not be covered with dirt or contaminated by bacterium.

4. Corrosion Resistance:

resist chemical matters and electron chemical corrosion.

5. Low Installation Costs:

light weight and ease of installation can reduce installation costs.

6. Longevity: more than 50 years under proper use.

7. Recycled and Environment-friendly.
