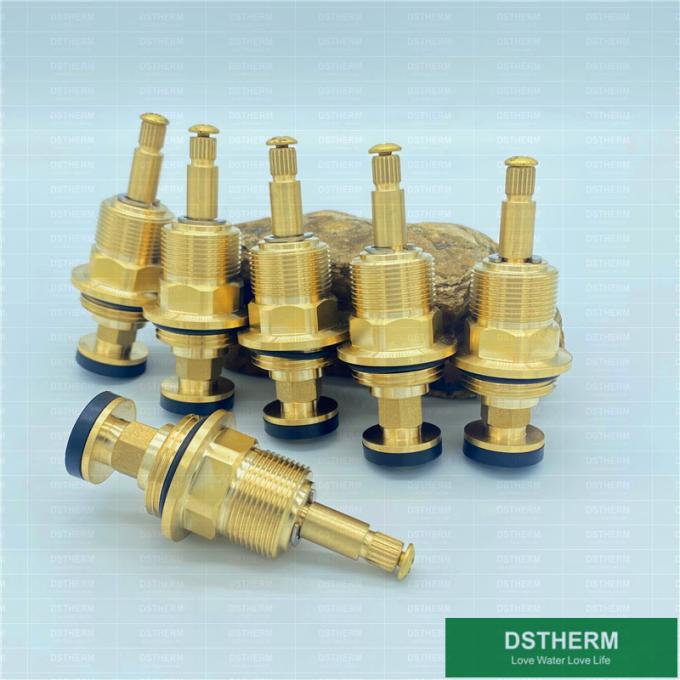

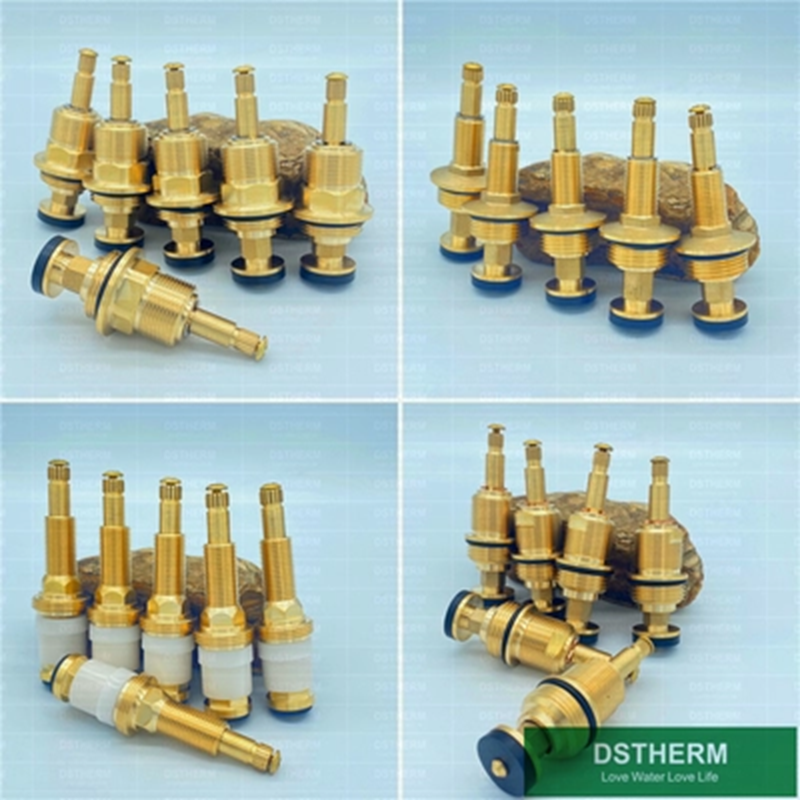

Concealed Stop Valve Plumbing Stop Valve Cartridges Stop Valve Cartridges Valve Top Part

Can match different kinds of handles
Brass Color Treatment
Inner Switching Cartridges
Size: 1/2 inch 3/4 inch 1inch

MOQ: 2000PCS.
Production: 100000Pcs/Month

Green Color Plastic Ppr Handle For Stop Valve Top Parts With Brass Cartridges With Chrome Plated

Red Color Plastic Ppr Handle For Stop Valve Top Parts With Brass Cartridges Chrome Plated

Red Color Aluminum Handle

Brass Valve Cartridges Chrome Plated

EPDM Oring Stopper.

PN25 Pressure

Technical standard

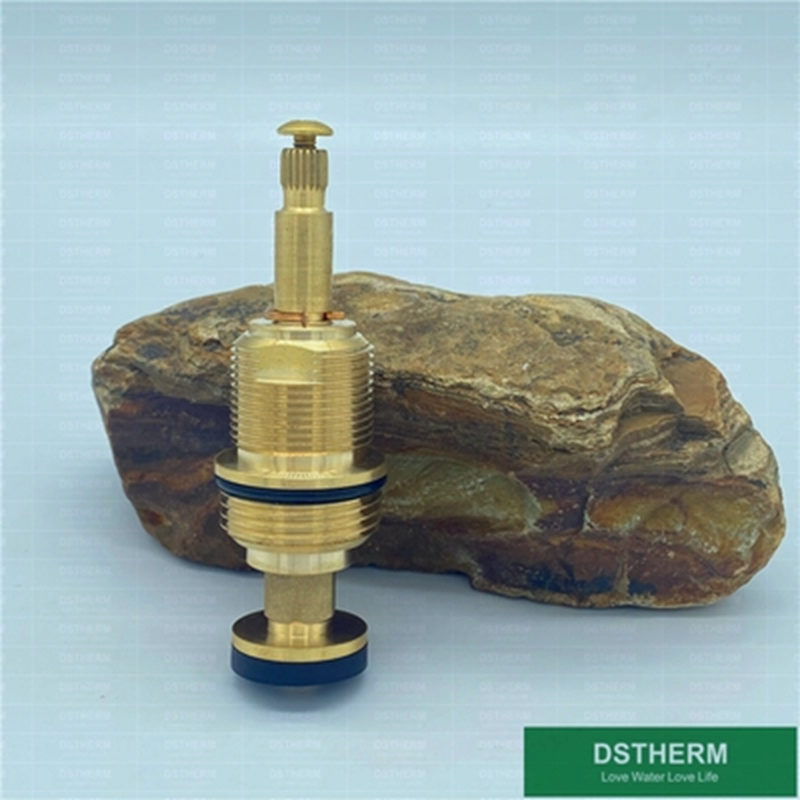

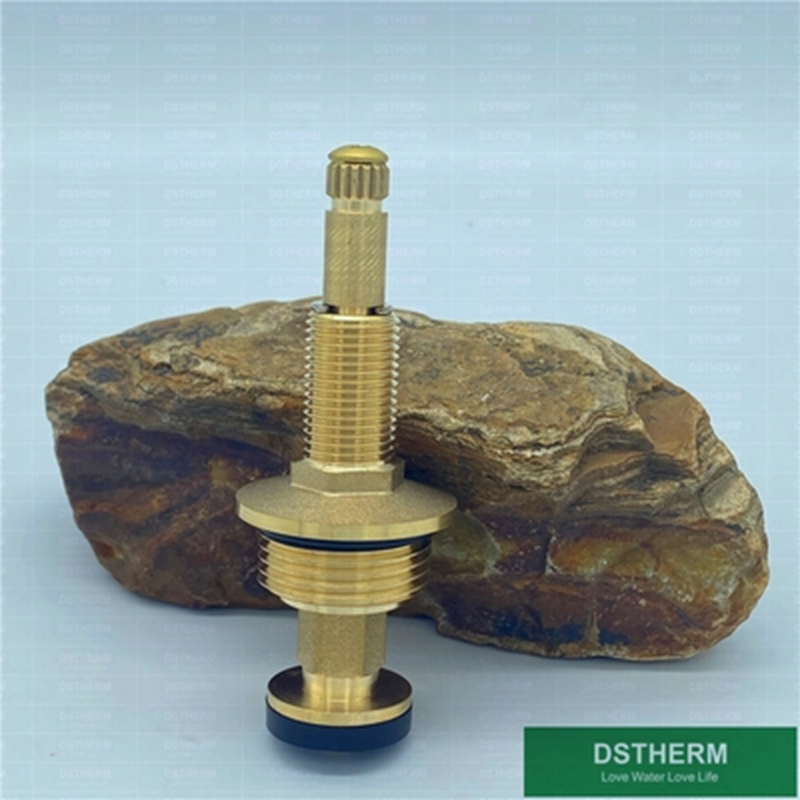

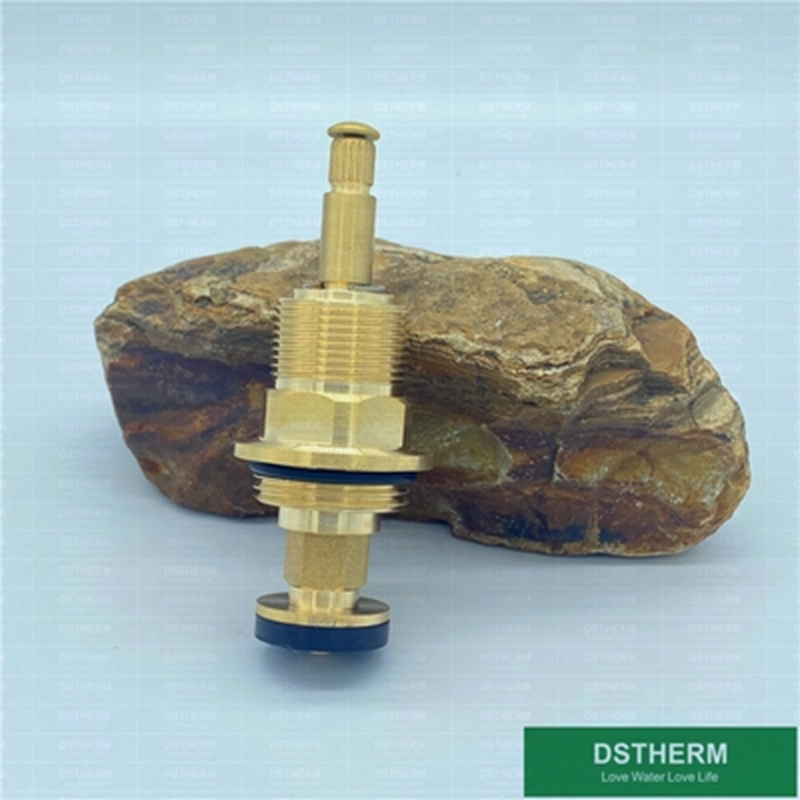

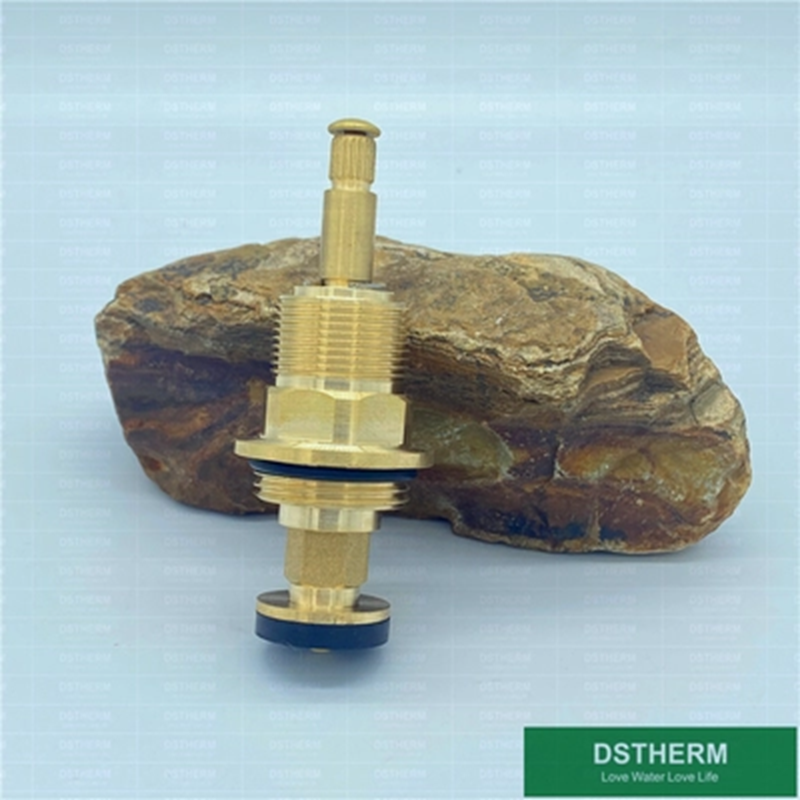

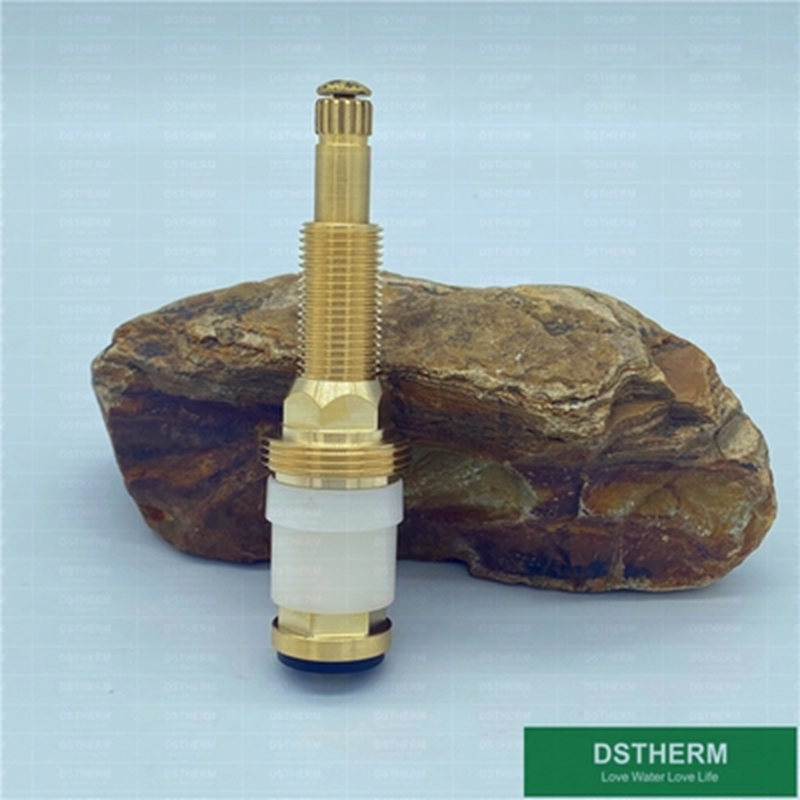

Brass cartridge, brass valve cartridge
Material:brass C36000.DZR brass CZ122.Etc.
Brass Fast/Slow-open cartridge
Size: 3/8"-3/4" 1"...
Used for angle valve, concealed valve...

Plastic Stop Valve / DSTHERM

PPlastic Stop Valve Ppr Ball Valve Plumbing Stop Valve Longer Handle PPR Stop Valve Concealed Stop Valve

PPR Pipe Fittings PPR Stop Valve ISO9001 DIN8077/8078 Colour OEM

1. Name: Stop valve

2. MIN.Order: 100 PIECES, IF YOUR ORDER IS LOWER THAN THIS ,PLS CONTACT US.

3. Material: BRASS

4. PressureE Rating: 25Mpa

5. Standard: ACCOUNDING TO GB/T18742.3 AND DIN8077/8078

6. Color: WHITE GREY RED BLUE GREEN AND OTHER COLORS ACCOUNDING TO CLIENTS'NEEDS.

7. Delivery Time: IN 10-25 DAYS AND WE HAVE ABLITY TO DEAL WITH URGENT ORDERS.

8. Packing : CARTON, BAGS WITH INNER SMALL PE BAGS AND THE FRONTS AS CLIENTS'NEEDS.

9. Certificate: ISO9001:2000

10. Connection: CONNECT WITH PIPES

Description
1) Healthy, bacteriological neutral, conforming to drinking water standards
2) Resistant to high temperatures, good impact strength

3) Convenient and reliable installation, low construction expenses
4) Excellent heat-insulation property from minimum thermal conductivity
5) Lightweight, convenient to transport and handle, good for labor-saving
6) Smooth inner walls reduce pressure loss and increase flow speed
7) Sound insulation (reduced by 40% compared to galvanized steel pipes)
8) Light colors and excellent design ensure suitability for both exposed and hidden installation
9) Recyclable, environment-friendly, accords with GBM standards.

Applications

> Distribution for cool and hot water;
> Duct for drinkable water system;
> Pipes for kinds of high-temperature and low-temperature heating system;
> Pipes for heating and coolling settings in solar energy system;
> Connecting pipe for air conditioners.

Production specification

Packaging & Delivery

Packaging Details:
(1) Export safe box
(2) Inner boxes with filler
(3) Outpackage is high quality cartons .
(4) Custom package

According to your requirements

What can we do for you?
1. Sample is available.
2. Independent R&D, ISO manufacture, precise quality standards, modern logistics management, and sound marketing strategy.
3. Inquiry replied within 24 hours.
4. Patented products.
5. OEM or ODM is available.
6. Some extra accessories can be supplied.
7.The larger quantity you order,the more competitive prices you'll get.
8. Necessary Certificates can be supplied.

Why To Choose Us
1. What's your MOQ ;
We accept your trial orders.
2. R & D Center and Factory:
We have our own R & D center and factory, so we can supply you products at competitive price.
3. Good Service :
We treat clients as friends.
4. Good Quality :
We import top quality accessories to manufacture our products.
5. After-sales service:
Three year's guarantee. Wearing accessories comes with the products to help you to reduce the repair bill.

UV Ppr Aluminum Composite Pipe 2.0mm Thickness For Public Buildings Water Supplying

What is Ppr Aluminum Composite Pipe? Aluminum-plastic composite PPR pipe is a composite pipe of five layers, inside and outside layers of which are made of PP-R, tightly bonded with melt adhesive to the mid-layer of aluminum core which is longitudinally welded in an overlapping way.

Aluminum Ppr Pipe Aluminum Foiled Ppr Pipe PPR Aluminum Composite Stable Pipe Corrosion Resistance Ppr Aluminum Pipe

Product: Ppr Aluminum Composite pipe
Material: PPR+Aluminum
Size: 20mm 25mm 32mm 40mm 50mm 63mm 75mm 90mm 110mm
Certificate:ISO9001
Standard: ISO15874; DIN8077/8078
Working place: -40°-95°

Ppr Aluminum Composite pipe

Ppr Aluminum Composite pipe Series SDR9/S4/PN16
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter	Overall Wall Thickness	Overall Outer Diameter
20mm	20.0	2.3	15.4	3.4	21.9
25mm	25.0	2.8	19.4	4.0	27.1
32mm	32.0	3.6	24.8	4.8	34.1
40mm	40.0	4.5	31.0	5.8	42.3
50mm	50.0	5.6	38.8	6.9	52.3
63mm	63.0	7.1	48.8	8.4	65.3
75mm	75.0	8.4	58.3	9.6	77.8
90mm	90.0	10.1	70.0	11.5	93.3
110mm	110.0	13.7	85.8	13.7	114.0

Ppr Aluminum Composite Pipe

Ppr Perforated Aluminum Pipe Ppr Composite Aluminum Pipe PN16 PN20 4m Length Aluminum Foiled Pipe
What is Ppr Perforated Aluminum Pipe? Perforated Aluminum-plastic composite PPR pipe is a composite pipe of five layers, inside and outside layers of which are made of PP-R, tightly bonded with melt adhesive to the mid-layer of perforated aluminum core which is longitudinally welded in an overlapping way.

Ppr Composite Aluminum pipe with ppr aluminum-plastic ISO9001 DIN8077/8078 Color customization 20mm-160mm

PP-R Perforated Aluminum Composite pipe

Aluminum Ppr Pipe, Ppr Aluminum Composite Pipe,Ppr Aluminum Stability Pipe

Series SDR7.4/S3.2/PN20
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter	Overall Wall Thickness	Overall Outer Diameter
20mm	20.0	2.8	14.4	3.9	21.9
25mm	25.0	3.5	18.0	4.7	27.1
32mm	32.0	4.5	23.0	5.7	34.1
40mm	40.0	5.6	28.8	6.8	42.3
50mm	50.0	6.9	36.2	8.2	52.3
63mm	63.0	8.6	45.6	10.0	65.3
75mm	75.0	10.3	54.4	11.5	77.8
90mm	90.0	12.3	65.4	13.7	93.3
110mm	110.0	15.1	79.9	16.6	114.0

Aluminum Ppr Pipe, Ppr Aluminum Composite Pipe,Ppr Aluminum Stability Pipe

Series SDR6/S2.5/PN25
Nominal Outer Diameter	Diameter	Wall Thickness	Inner Diameter	Overall Wall Thickness	Overall Outer Diameter
20mm	20.0	3.4	13.2	4.5	21.9
25mm	25.0	4.2	16.6	5.4	27.1
32mm	32.0	5.4	21.2	6.7	34.1
40mm	40.0	6.7	26.6	8.0	42.3
50mm	50.0	8.3	33.2	9.6	52.3
63mm	63.0	10.5	42.0	11.8	65.3
75mm	75.0	12.5	49.8	13.8	77.8
90mm	90.0	15.0	59.8	16.4	93.3
110mm	110.0	18.3	73.2	19.8	114.0

Aluminum Ppr Pipe, Ppr Aluminum Composite Pipe,Ppr Aluminum Stability Pipe

Applications:

1 ) Cold, hot water supply facilities for public buildings

2 ) Food, chemical, electronic industrial pipeline networks such as pipeline networks for transporting all kinds of corrosive liquid (such as acid, buck and deionized water )

3 ) Drinking water production system pipeline networks such as pure water and mineral water

4 ) Air conditioning facility pipeline

5 ) Compressed gas pipeline networks for industry

6 ) Pipeline network for swimming pool

7 ) Pipeline network for solar energy facility

8 ) Agriculture and garden production transporting system

We can supply products of different colors as per customer's request
Aluminum Ppr Pipe, Ppr Aluminum Composite Pipe,Ppr Aluminum Stability Pipe

Aluminum Ppr Pipe, Ppr Aluminum Composite Pipe,Ppr Aluminum Stability Pipe

• Material: polypropylene and Al

• Sizes: 20 to110 mm

• PN Grade: 1.6MPa, 2.0MPa, 2.5MPa

• Colors: gray or white marked with blue or red lines

• Connection: socket fusion joint

• Standard: CJ/T 210-2005, BS6920

• Certification: ISO9001, ISO14001, OHSAS18001

• Applications: cold or hot water supply, heating system including flooring heating, wall heating and radiating system, central air conditioning system, industrial liquids transportation

• Non-toxic: no heavy metal additives, not be covered with dirt, not be contaminated by bacterium

• Corrosion Resistant: resist chemical matters or electron chemical corrosion

• Lower Installation Costs: light weight and ease of installation can reduce installation costs by as much as 50% over metal piping system

• Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipes

• Long Life: more than 50 years under proper use

• Recycled and Environment-friendly

• Low linear expansion coefficient: it does not curve when transporting hot water for long time

Aluminum Ppr Pipe, Ppr Aluminum Composite Pipe,Ppr Aluminum Stability Pipe

Aluminum Ppr Pipe, Ppr Aluminum Composite Pipe,Ppr Aluminum Stability Pipe

Easy installation and low cost

Good UV-rays and aging resistance makes the pipe has long service life.

Excellent performance of oxygen and rays resistance, which avoids bacteria breeding, and protects metal parts from rust-eaten.

Greatly reduced linear expansion coefficient, which is 1/3 of normal PP-R pipe, that keep the pipe being not out of shape.

Extra Introduction: Aluminum Ppr Pipe, Ppr Aluminum Composite Pipe,Ppr Aluminum Stability Pipe
Ppr Pipe Introduction: Polypropylene Random plastic type C pipe.

1. What is Ppr Pipe? Ppr Pipe means: Polypropylene Random Copolymer plastic type C pipe.
PPR pipe is type c and a straight and rigid cylindrical pipe, made from Polypropylene Random Copolymer plastic raw mateiral, produced through a continuous extrusion process. They are commonly offered in light green, dark green, blue color, orange color, white color, etc... and in outer diameter sizes ranging from 20mm to 315mm making the pipe walls far thicker according to ISO15874 and DIN8077/8088

2. Ppr Pipe Standard:

ISO15874

DIN8077/8078

3. Color: According to different countries and markets, different customers have different request on the colors, so we have customized Colors, such as Green Color, White Color,bulue color, orange color, dark green clor, etc...

4. Package: DSTHERM Brand Package/ We also accept customer customized brand package with custome logo and descriptions.

5.What are the main use of Ppr Pipe and Ppr Fittings?

PPR Pipe has been growing in popularity over the last couple of years, and rightly so. Its durability, ecological, and economic benefits make PPR pipes one of the best in the industry. That is why most industry leaders have turned to PPR pipes for all their needs.

PPR pipes are commonly used in home installations. It is also used in sanitary liquid, alkaline and acidic solutions, compressed air, and transferring water. But what exactly is PPR pipe, and how is it used? We have prepared this comprehensive guide to help you learn everything about PPR pipes.

What is the PPR Pipe?

First things first, so what exactly is the PPR pipe? Also known as Polypropylene Random Copolymer, PPR pipe is a cylindrical and rigid pipe made from PPR. The pipe is produced through a continuous process known as extrusion. These pipes are usually white or green.

Most PPR pipes have a diameter of 20mm to 110mm. This means that the PPR pipe is thicker than its PVC companions. In addition to that, PPR pipes feature a network of fittings, accessories, and parts. These accessories are available for each PPR pipe diameter.

Like all other pipes, PPR pipes also have their unique properties. These properties set it apart from other pipes. Learn more about PPR pipes characteristics below:

Low Thermal Conductivity

The first thing you should about PPR pipes is that they have low thermal conductivity. This means that external temperatures don’t get to the liquid inside the pipe. Likewise, temperature from the liquid does not escape to the external environment. This is why PPR pipes minimize heat loss or heat gain during the transfer of cold and hot fluids. Using PPR pipes guarantees efficiency and reduced costs

Increased Longevity

PPR pipes can serve you for more than 50 years under varying environmental conditions and a wide range of fluids. What is more, PPR pipes can withstand both cold and hot water systems. To help you understand, PPR pipes can handle the pressure and strain of hot water without breaking. Of course, the premise is that the 50-year life span can only be guaranteed under normal use conditions, such as protecting the pipeline under extreme weather.

Ecological and Economic Efficiency

PPR pipes are easy to transport, cut, and join. These pipes are also easy to use and do not need additional chemicals and materials.
