Airproof Spiral Corrugated Stainless Steel Gas Pipe

Airproof Spiral Corrugated Stainless Steel Gas Pipe

Place of Origin:Zhejiang China
Brand Name:DSTHERM
Certification:ISO
Model Number:16-32mm
Product description: Ppr pipe, Ppr Fittings, Plastic ppr pipe, plastic pipe, tube,pprct pipe, pprct fittings, Ppr Aluminum pipe, Ppr-Al-Ppr pipe, Ppr Fiber Pipe, Ppr Uv Pipe, Ppr perforated pipe, Ppr stop valve, Ppr Ball
INQUIRY

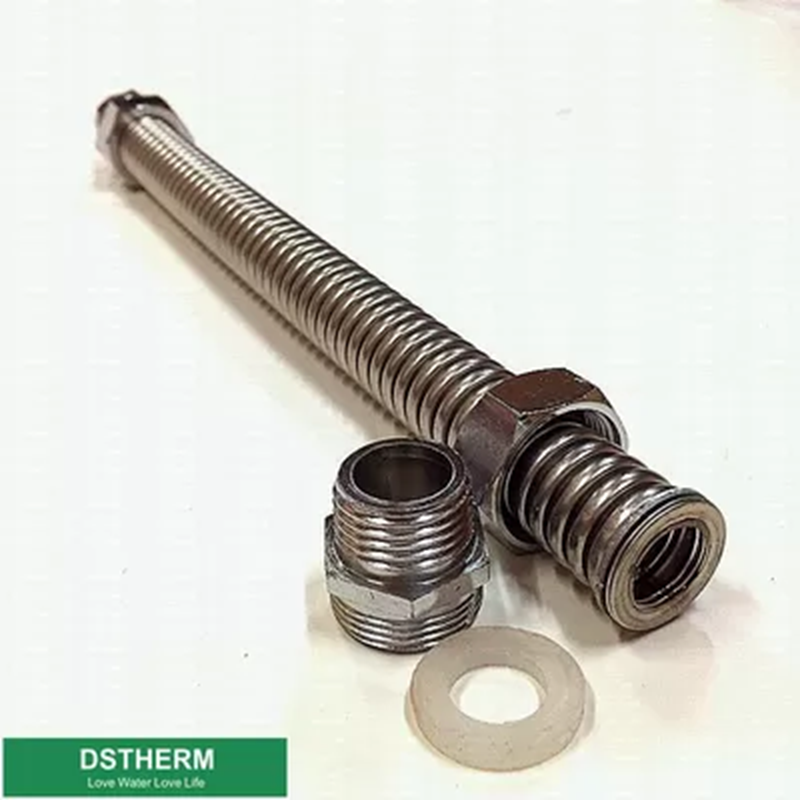

Airproof Spiral Corrugated Stainless Steel Gas Pipe

Payment & Shipping Terms

Description

Features:
1. Connector for indoor and outdoor gas piping;
2. High flexibility, withstands corrosion, durable, reliable, safe, and withstands high and low temperatures;
3. Because of the tie-in has airproof tightened metal tapers screw thread, the hose will not wear out;
4. Easy to install and won't leak gas if installed incorrectly;
5. For gas mediums such as gas, petroleum liquefied gas, natural gas, oil, water.

Packaging : 5PCS/BAG 25PCS/CTN

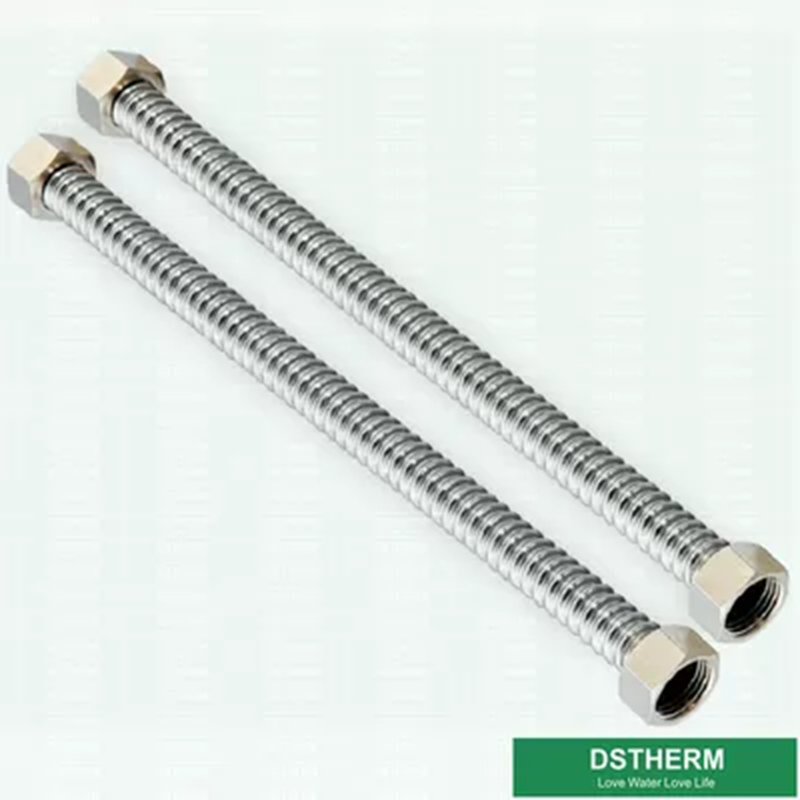

Airproof Spiral Corrugated Stainless Steel Gas Pipe 0

SPECIFICATIONS
SIZE	3/8"OD(1/4"ID) x 48"LGTH
PN	3.5kpa
HOUSE CORRUGATED	spiral corrugated
THICKESS OF STAINLESS STEEL SHEETS	0.2mm~0.25mm
PIPE MATERIAL	stainless steel 304
NUT MATERIAL	BRASS
AIRPROOF MODE	metal circularity to airproofing, no rubber gasket
BEND TIMES	70~80s
WORKING TEMPERATURE	–196°C~427°C
LENGTH	12"~72" or customer request
CONSULT STANDARD	ANSI Z21.24/CSA 6.10 ; ANSI Z21.75/CSA 6.27;ISO9001:2008
EXPORT TO	South American,North American,Mid East,East Europe,West Europe.
WORKING MEDIUMS	city gas, petroleum liquefied gas, natural gas, oil, water.
